- Page 1 PX245 Sound to Light Converter Manual...
-
Page 2: Table Of Contents
11. Technical Data....................12. Declaration of conformity................... Manufacturer reserves the right to make modifications in order to improve device operation. tel.: (12) 626 46 92 PXM Marek Żupnik spółka komandytowa fax: (12) 626 46 94 Podłęże 654 E-mail: info@pxm.pl 32-003 Podłęże Ver.1.2. -
Page 3: General Description
Microsoft Windows . 2. SAFETY CONDITIONS The PX245 is a device powered with safe voltage 12 V; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12V DC current (stabilized voltage) with current-carrying capacity compatible with technical data. -
Page 4: Descriptions Of The Connectors And Control Elements

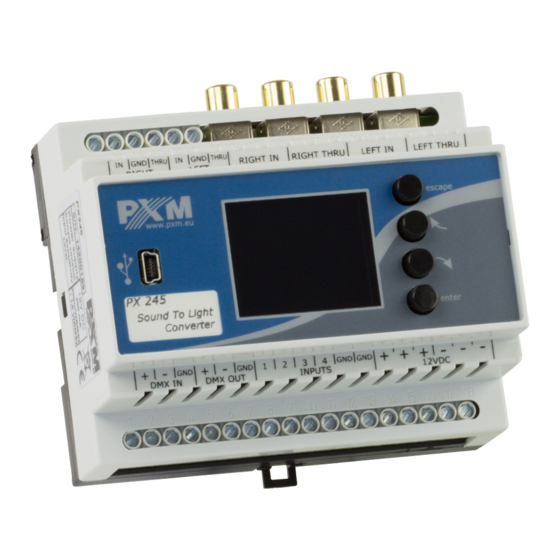

3. DESCRIPTION OF THE CONNECTORS AND CONTROL ELEMENTS RCA connectors audio connectors - left audio connectors - right USB connector control buttons color display DMX Input power supply DMX Output bistable switches inputs 4. NAVIGATING THE MENU Programmable buttons allow navigating the menu. Each button is described on the right side and their use is as follows: - exits from the currently programmed parameter without saving the changes or goes to the upper level in the menu (pressing the... -
Page 5: Use Of The Device
Description of other messages displayed on the [Menu] screen: Cfg1,Cfg2,...,Cfg16 - currently set music configuration, which controls working mode of the ź PX245 when no DMX signal is received; Bypass - message that informs about receiving by the device DMX-512 signal and transmitting ź... -
Page 6: Main Menu
6. MAIN MENU After approving the [Menu ] screen-button with „enter” button, the device's screen will display a submenu allowing you to select the available options. To program any of them you need to select the option you want and approve the choice by pressing „enter ”. - Page 7 Streams - this feature allows to define parameters of 8 music streams on the basis of which ź the PX245 converts audio stream into DMX-512 signal. The music stream should be treated as a filter that converts part of the audio signal spectrum to DMX-512 signal.
-
Page 8: No Dmx Configuration
4) From: ... To: .. [Hz] - frequency range analyzed for defined stream, the parameters can be set in a range 15 -7968 [Hz]; 5) Thresh. (threshold) - value of analogue spectrum, below which the PX245 does not process the analog signal to the DMX-512- this parameter can be set 0-512;... -
Page 9: Dmx Address Settings
Address] submenu allows you to set playback control channel. Playback is turned off for DMX values from range 0-127 and turned on for 128-255 values. Picture below shows a view of PX245 display after selecting [Play address ] and pressing „enter”... -
Page 10: Dmx Out Settings
DMX signal. This menu allow you to replace the parameters of the DMX-512 signal sent from a device. Default in the PX245 are set the values visible below. At the bottom of the screen is displayed the aggregate... - Page 11 DMX512 protocol - useful information DMX512 protocol describes exactly the way according to which data is sent. The basic element of each data transfer protocol is a low or high level of voltage on the line called a bit. Its duration in the DMX512 is exactly 4 microseconds. The set of such a few bits determines transmission code.
- Page 12 This means that even if we have a simple 6-channel lamp controller, the transmitter still have to send 24 DMX channels. The interval between each frame of data is marked as MARK BETWEEN FRAME (MBF) and can range from zero to 1 second. Thus, a complete DMX package looks as below: START DIMMER...
- Page 13 Remember to save values by selecting the button and pressin g „enter” 5. Channels number - Using this feature, you can limit the number of channels sent from the PX245. The minimum value is 24 channels and the maximum is 512 (default).
-
Page 14: Input Dmx
7.5. Input DMX This menu provides a graphical preview of DMX-512 signal received by the device. The presentation of DMX signal: The value of DMX signal on a given channel is presented in the form white bar, the height of which varies proportionally according to the relation: the greatest height - DMX value is 255, no bar - DMX value is 0. -
Page 15: Language Settings
7.7. Language settings Language Settings allow you to change the menu language. To do this select appropriate language using buttons and press „enter”. 7.8. Firmware version In this submenu you can check the firmware and bootloader version installed on the device. You can also restore the default settings implemented on the device. -
Page 16: Connection Description Of Bistable Inputs
Turned On (shorting) inputs are shown in the tables in the form of crosses. If you do not connect the DMX control signal or any bistable switches, the PX245 works with the music configuration set in [No DMX Configuration... -
Page 17: Connection Scheme
9. CONNECTION SCHEME a) connection scheme with DMX control Audio DMX Player MP3 player e.g. PX249 D C O K D C O K 12V DC power supply e.g. DR-30-12 LED driver e.g. PX184 supplying LED lamps RX+ RX- TX+ TX- VCK+ REMOTE 1 2 3 4... - Page 18 b) bistable switches connection scheme, without DMX control amplifier Audio DMX Player MP3 player e.g. PX249 D C O K D C O K 12V DC power supply LED driver e.g. PX184 bistable switches - e.g. DR-30-12 supplying LED lamps selection of the configuration...
-
Page 19: Dimensions
10. DIMENSIONS 60 mm 105 mm 11. TECHNICAL DATA Type: PX245 Power supply: 12V DC DMX input: 1 (512 channels) DMX output: 1 (512 channels) Bistabile inputs: Audio line input: Sensitivity of line input: 200 mV(RMS) - 1,6 V(RMS) Available configurable... -
Page 20: Declaration Of Conformity
Przemysłowa 12 e-mail: info@pxm.pl tel: +48 12 626 46 92 30-701 Kraków, Poland http://www.pxm.pl fax: +48 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/WE Name of producer: PXM s.c.
