- Page 1 PX736-3 PX736-5 DMX Splitter 2/10 MANUAL...
-
Page 2: Table Of Contents
5. Technical data..................6. Dimensions..................... Declaration of conformity................Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik spółka komandytowa tel.: 12 626 46 92 fax: 12 626 46 94 Podłęże 654 E-mail: info@pxm.pl Ver. -
Page 3: General Description

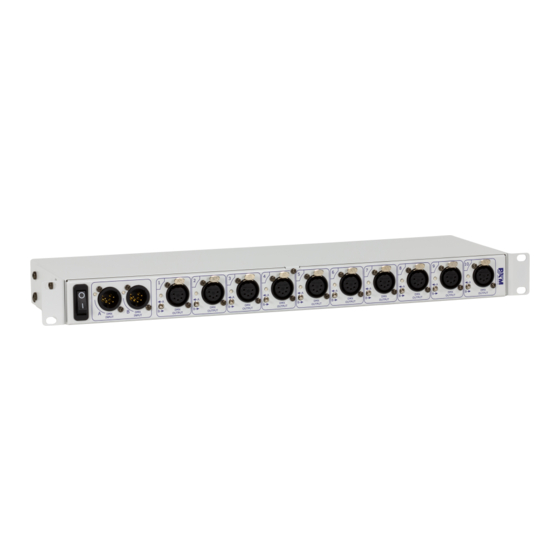

1. GENERAL DESCRIPTION DMX512 signal splitter PX736 allows for providing branches in extensive DMX512 installations. Connecting in series multiple receivers in one line may be hard. Applying splitter in the topology allows to create branches on DMX line. Moreover, the PX736 will amplify and regenerate DMX512 signals, removing interference effects, as well as eliminating signal reflections on the line. -
Page 4: Splitter Description
3. SPLITTER DESCRIPTION The device incorporates two DMX512 inputs, ten DMX512 outputs and several diode indicator lights. The indicator diodes on the front panel provide information on the status of the unit: - when the splitter is turned on, input diodes A and B flash twice - when a DMX signal is present, the input diodes flash every half second - the output diodes emit steady orange... -
Page 5: Connection Schematic
4. CONNECTION SCHEMATIC Example connection arrangement for the splitter: Each of the ten outputs needs to be assigned a single input (A or B) Example: Seven of the outputs are assigned to input A, and three to input B. In order to select either input A or B, use the switches located next to the output. DMX512 controller - Input A... -
Page 6: Technical Data
5. TECHNICAL DATA Type: PX736 DMX512 INPUT / OUTPUT lines: 2 / 10 The protocol supported: DMX512, DMX512-A Signal regeneration: DMX input selection: individually for each output DMX line optical isolation: Overvoltage protection: INPUT/OUTPUT insulation breakdown >1000 V voltage: Recommended DMX signal cable type: shielded twisted pair cable (e.g. -
Page 7: Dimensions
6. DIMENSIONS 42,5... -
Page 8: Declaration Of Conformity
012 626 46 94 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX Splitter 2/10 Product code: PX736 smeets the requirements of the following standards as well as harmonised standards: PN-EN 50581:2013,...
