- Page 1 PX357 Gate 4 MANUAL...
-
Page 2: Table Of Contents
Declaration of conformity................The manufacturer reserves the right to change the operation and handling of the device in order to improve the product. tel.: (12) 626 46 92 PXM Marek Żupnik spółka komandytowa fax: (12) 626 46 94 Podłęże 654 E-mail: info@pxm.pl 32-003 Podłęże... -
Page 3: Overview
1. OVERVIEW Gate 4 DMX converts Art-Net signal to four output DMX512 ports. It has two modes of merging signals: HTP and LTP. Protocol version is Art-Net II. The device is protected against mechanical damage by robust metal housing. DMX 512 ports are optical isolated XLR connectors, resistant to mechanical damage. -
Page 4: Gate Structure Overview

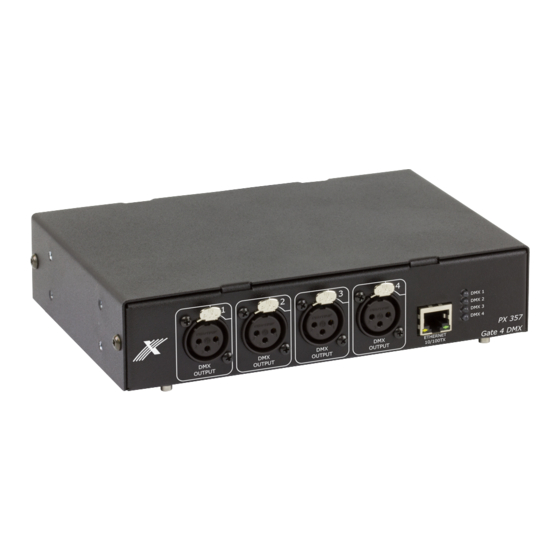

3. GATE STRUCTURE OVERVIEW PX357 is equipped with four DMX outputs, Ethernet joint, LED indicators. LEDs located in the front indicate the status of the device: - diode flashing 1 time per 3 seconds indicates that the device is idle - diode flashing 1 time per second (1 Hz) –... -
Page 5: Basic Information On The Dmx512 Protocol
1. Open an installation file, click [Next] to go to the software installation. The installation file is attached to the driver on the CD, or available for download from the website: http://pxm.pl 2. From the drop-down menu, select the language for the installation and confirm by clicking [OK]. -
Page 6: Structure Of The Application Window
6. STRUCTURE OF THE APPLICATION WINDOW information on the device selected from the list, network settings DMX port options c h o o s e t h e default settings searching for devices download current close the application available in the local device settings network send configuration to... - Page 7 By way of example: 2.0.0.1 mask: 255.0.0.0 2. Run the application, you will see a list of available network interfaces [IP]. From the list, select the IP address to be used by the application. 3. Click [Search] to search for devices available in the network. In case of problems, make sure that the computer is in the same subnet as the device.
-
Page 8: Restoring Default Settings
4. Select a device from the list [Device List]. 5. Click [Connect] to connect with the selected device. The connection is also possible by double-clicking on the name of the device. Upon connection, the right panel of the application window displays the timing parameters of the DMX signal for four DMX ports, and four LEDs (located on the front panel of the device) flash at a frequency of 1 Hz. -
Page 9: Connection Scheme
8. CONNECTION SCHEME 230 V AC Driver... -
Page 10: Dimensions
9. DIMENSIONS PUSH PUSH PUSH PUSH 200 mm 10. TECHNICAL DATA Typ e: PX357 - DMX lines: - optically isolated DMX line: - overvoltage protection: - configuration via PC: through Ethernet interface - Ethernet interface: with standard 10/100BaseTXXLR - DMX output: 3-Pin or 5-Pin Plug Seat - power connector: PowerCon... -
Page 11: Declaration Of Conformity
12 626 46 94 30-701 Kraków DECLARATION OF CONFORMITY according to guide lines 2004/108/WE and 2006/95/WE Name of producer: PXM Marek Żupnik sp. k. Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków We declare that our product: Product name:...
