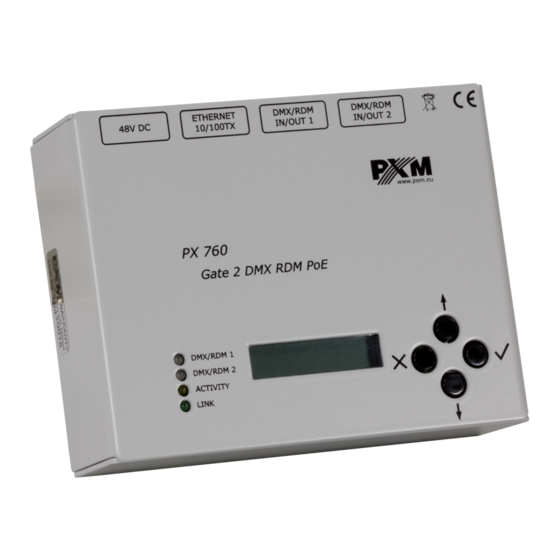

- Page 1 PX760 Gate 2 DMX RDM PoE User manual...
-
Page 2: Table Of Contents
8 Upgrade.....................19 9 Connection scheme.................21 10 Dimensions.....................23 11 Technical data..................24 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
DMX / RDM ports and two one-color ones informing about the status of the Art-Net network connection. The gate PX760 has a display and four buttons that allows to change the configuration: Art-Net, Ethernet and DMX settings (such as: Brake, MAB, MBF,... -
Page 4: Safety Conditions
Safety conditions PX760 Gate 2 DMX RDM PoE is a device powered with safe voltage 48V DC, however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 48V DC (stabilized voltage) with current-carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements programming buttons LED indicators display... -
Page 6: Power Supply
48V DC power socket DMX512 ports Ethernet Neutrik etherCON port Power supply The Gate 2 DMX RDM PoE device can be powered from two power sources. The first one is standard 48V DC power supply from an external power supply, the second one is PoE (Power over Ethernet) in IEEE 802.3af standard using twisted-pair cable, without using the external power supply. -
Page 7: Programming The Device
Programming the device 5.1 Button features (escape) - allows you to exit the parameter being programmed ✕ (escap without saving any changes or to move to a higher menu level ↓ (nex (next) - moves you back through the menu or decreases values being set ↑... -
Page 8: Description Of Information Parameters
5.2 Description of information parameters The PX760 provides you with the following device information. gate model and current IP address (if an address is provided by DHCP, an asterisk ENTER * is added) PX760 G2 DMX RDM *192.168.1.14 5 x NEXT... -
Page 9: Network Settings
If DHCP is turned off, the gate operates in a static configuration (IP, SUBNET MASK, GATEWAY). If DHCP is turned on, the gate will start up using static settings, but will attempt to acquire new network configuration from the DHCP server. ENTER PX760 G2 DMX RDM *192.168.1.14 NEXT ENTER ENTER NETWORK CONFIG. -
Page 10: Dmx In / Out Port Settings
[ART-NET CONFIG.] in the [PORT n] menu option in the [DIRECTION] option. It is possible to change the signal conversion direction on all two DMX ports at the same time (diagram below). ENTER ENTER PX760 G2 DMX RDM PORT 1: OUT PORT 1: OUT *192.168.1.14 PORT 2: OUT... -
Page 11: Art-Net Configuration
5.5 Art-Net configuration ENTER PX760 G2 DMX RDM *192.168.1.14 2 x NEXT ENTER ENTER ENTER ART-NET CONFIG. PORT 1 UNIVERSE UNIVERSE -> 0x000 -> 0x0000 0x0000] NEXT NEXT ENTER PORT 2 UNIVERSE SWITCH UNIVERSE SWITCH 0x001 -> 0x0] NEXT ENTER... - Page 12 S: (Sub-Net switch) sub-net number page 12 in the Art-Net protocol ENTER (range 0 – 15 dec, 0x0 – 0xF hex) ENTER DMX PARAMETERS BREAK TIME -> 176µs U: Universe switch BREAK TIME [176µs] [DIRECTION] – setting the direction of signal conversion. NEXT Available Art-Net on DMX or DMX on Art-Net.
- Page 13 page 12 ENTER NET SWITCH NET SWITCH 0x00 -> 0x00] NEXT ENTER SUBNET SWITCH SUBNET SWITCH -> 0x0] NEXT ENTER ENTER ART-NET TIMEOUT STOP DMX SIGNAL STOP DMX SIGNAL -> [Off] NEXT NEXT STOP DMX SIGNAL [On] ENTER TIMEOUT VALUE TIMEOUT VALUE [255s] 255s...
-
Page 14: Presets Menu
[TIMEOUT VALUE] – a value in seconds after which transmission through a DMX port is stopped following Art-Net signal loss 5.6 Presets menu In the gate are predefined 2 standard sets of factory settings: 2.x.x.x and 10.x.x.x. ENTER PX760 G2 DMX RDM *192.168.1.14 3 x NEXT ENTER ENTER PRESETS DEF 1 (2.x.x.x) -
Page 15: Settings For The Other Parameters
LEDs will be turned off. The device will continue to operate, without any interruption of the other parameters. To restore the backlight, press any key. ENTER PX760 G2 DMX RDM *192.168.1.14 4 x NEXT ENTER... -
Page 16: Information Communicated By Led Indicators
Information communicated by LED indicators The indicators diodes on the front panel of the gate provide information on the status of the unit: the two upper LEDs are bi-color ones (blue – orange) and communicate the status of DMX-RDM. Each diode is assigned to one of the two DMX ports. - Page 17 if Art-Net packets stop being received by a given port, then, depending • on the Art-Net Timeout option: ◦ Timeout [STOP DMX SIGNAL]: ▪ if [STOP DMX SIGNAL] is off [Off] the port will continue to send the last values and the diode will continue to blink in blue ▪...
-
Page 18: Art-Net Commands
Art-Net commands List of Art-Net commands supported in PX760 Name Value OpPoll 0x2000 OpPollReply 0x2100 OpOutput / OpDmx 0x5000 OpSync 0x5200 OpAddress 0x6000 OpInput 0x7000 OpTodRequest 0x8000 OpTodData 0x8100 OpTodControl 0x8200 OpRdm 0x8300 OpFirmwareMaster 0xf200 OpFirmwareReply 0xf300... -
Page 19: Upgrade
Upgrade In order to update the gate firmware, use the program DMX-Workshop, which is available on the Artistic Licence website: http://www.artisticlicence.com. Firmware updates are available on the manufacturer's website. 1. In the main menu field select the option [Node List] 2. -
Page 21: Connection Scheme
Connection scheme... - Page 22 → DMX512 a) device operating in Art-Net DMX512 mode with a 48V DC power supply connected 48V DC Router Driver → DMX512 b) device operating in DMX512 Art-Net mode using PoE power supply in the IEEE 802.3af standard R o u t e r / s w i t c h with PoE power supply Driver Driver...
-
Page 23: Dimensions
10 Dimensions... -
Page 24: Technical Data
11 Technical data type PX760 DMX/RDM lines DMX/RDM input socket 3-pin or 5-pin Neutrik XLR RDM protocol support bi-directional signal conversion optically isolated XLR connectors galvanic isolated XLR connectors Ethernet connector type Neutrik etherCON DHCP protocol support Art-Net version Art-Net 1, 2, 3, 4... - Page 25 width: 127mm dimensions height: 42mm depth: 99mm "Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd”...
- Page 26 Podłęże, 18.12.2018 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Gate 2 DMX RDM PoE Product code: PX760 meets the requirements of the following standards, as well as harmonised...
