- Page 1 PX716 Splitter DMX-RDM MANUAL...
-
Page 2: Table Of Contents
Declaration of conformity................The manufacturer reserves the right to change the operation and handling of the device in order to improve the product. PXM Marek Żupnik spółka komandytowa tel.: 12 385 83 06 fax: 12 626 46 94 Podłęże 654 E-mail: info@pxm.pl... -
Page 3: General Information
1. GENERAL INFORMATION DMX-RDM signal splitter This signal splitting device, or DMX-RDM splitter, allows for providing branches in extensive DMX-RDM installations. As connecting multiple, series-connected receivers to form a single chain can be difficult, provision has been made in the design of the splitter to create DMX-RDM line branches. -
Page 4: Splitter Description

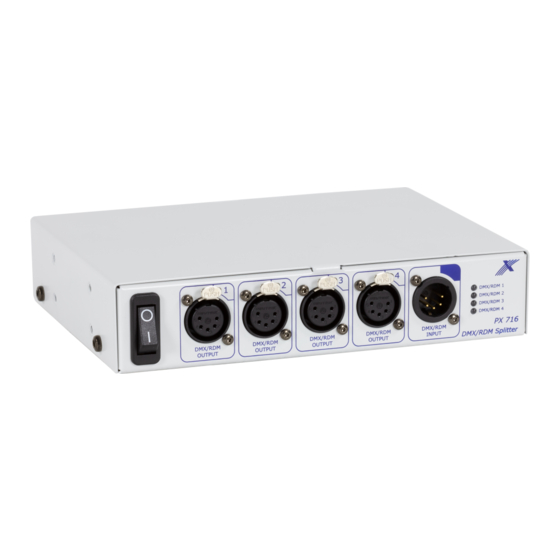

3. SPLITTER DESCRIPTION The device incorporates four DMX-RDM outputs, one DMX-RDM input, and several diode indicator lights. The indicator diodes on the front panel provide information on the status of the unit: - glowing steadily indicates that the splitter is in idle mode - if the diodes blink fast, at an interval of 125 ms - the splitter is receiving an RDM packet - blinking with a half-second interval - a particular port is transmitting a DMX signal THE FRONT OF THE DEVICE:... -
Page 5: Connection Schematic
4. CONNECTION SCHEMATIC Example connection arrangement for a single splitter: power 230 V AC supply PX716 Splitter DMX-RDM DMX/RDM DMX/RDM DMX/RDM DMX/RDM DMX/RDM OUTPUT OUTPUT OUTPUT OUTPUT INPUT DMX-RDM controller DMX-RDM devices DMX-RDM devices DMX-RDM devices DMX-RDM devices... -
Page 6: Technical Data
5. TECHNICAL DATA Type: PX716 DMX-RDM INPUT / OUTPUT lines: 1 / 4 DMX line optical isolation: Overvoltage protection: INPUT / OUTPUT insulation breakdown >1000 V voltage: DMX signal cable type: shielded twisted pair Data cable gauge: 22 or 24 AWG Data cable impedance: 120 Ω... -
Page 7: Declaration Of Conformity
012 626 46 92 http://www.pxm.pl fax: 012 626 46 94 32-003 Podłęże DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże We declare that our product: Product name: Splitter DMX-RDM Product code: PX716 smeets the requirements of the following standards as well as harmonised...
