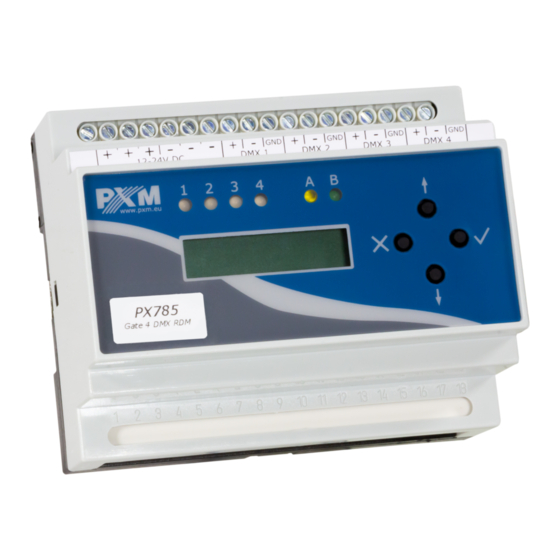

PX785
Gate 4
DMX RDM
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX785 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PXM PX785

  • Page 1 PX785 Gate 4 DMX RDM User manual...
  • Page 2: Table Of Contents

    4.10.3 RDM........................20 4.10.4 Dimming the screen and LEDs..............20 4.10.5 RDM devices detected..................21 4.11 Setting the display contrast..................22 5 Indicator lights....................23 6 PX785 cooperation with the grandMA2 console........25 7 Art-Net commands..................28 8 Upgrade.......................29 9 Connection scheme..................31 10 Dimensions....................31 11 Technical data..................32...
  • Page 3 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 Firm. 1.11 32-003 Podłęże mail: info@pxm.pl Rev.2-0 BDO register number 000005972 www.pxm.pl 22.05.2024...
  • Page 4: Description

    DMX / RDM ports and two one-color ones informing about the status of the Art-Net / sACN network connection. The gate PX785 has a display and four buttons that allows to change the configuration: Art-Net / sACN, Ethernet and DMX settings (such as: Brake,...
  • Page 5: Safety Conditions

    Safety conditions PX785 is a device powered with safe voltage 12 – 24V DC; however, during installation and use the following rules must be strictly observed: 1. The device may only be connected to 12 – 24V DC with current- carrying capacity compatible with technical data.
  • Page 6: Connector And Control Elements

    Connector and control elements power connectors DMX-512 connectors 24V DC Ethernet port (Art-Net / sACN) indicators PX785 G4 DMX RDM 2.137.176.112 PX785 Gate 4 DMX RDM display programming buttons...
  • Page 7: Programming The Device

    Programming the device 4.1 Button features (escape) – allows you to exit the parameter being programmed ✕ without saving any changes or to move to a higher menu level ↓ (next) – moves you back through the menu or decreases values being set ↑...
  • Page 8: Description Of Information Parameters

    4.2 Description of information parameters The PX785 provides you with the following device information, such as: • gate model and current IP address (if an address is provided by DHCP, an asterisk * is added), protocol (Art-Net / sACN), •...
  • Page 9: Network Settings

    If DHCP is turned off, the gate operates in a static configuration (IP address, IP address, Gateway address). If DHCP is turned on, the gate will start up using static settings, but will attempt to acquire new network configuration from the DHCP server. PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER...
  • Page 10: Dmx In / Out Port Settings

    Art-Net network configuration ART-NET config. in the Port n menu. Information about the status of ports is available from the main menu. Setting up in Art-Net mode: PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config.
  • Page 11: Art-Net/Sacn Protocol Change

    Setting up in sACN mode: PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> NEXT ENTER 1:____1 3:____3 sACN config. 2:____2 4:____4 -> NEXT ENTER 1:in 3:in 1*in * 3:in 2:in 4:in 2:in 4:in NEXT...
  • Page 12: Art-Net Configuration In Mode Art-Net

    → 4.6 Art-Net configuration in mode Art-Net Below is a diagram showing the ART-NET config. menu and a description of individual parameters that can be changed depending on the user's needs. PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config.
  • Page 13 Using Universe you can change all 3 universe number components (Net switch, Sub-Net switch and Universe switch). There is a possibility of quick preview from the main menu of Universes assigned to a given port, the diagram below: PX785 G4 DMX RDM 2.137.176.112 2 x NEXT 1:____1 3:____3...
  • Page 14: Art-Net Configuration In Mode Dmx Art-Net

    The range is 0 – 15 (0x0 – 0xf). → 4.7 Art-Net configuration in mode DMX Art-Net In the PX785 gate in the mode of converting the signal from DMX512 to → Art-Net after the change of Direction in the chosen port on DMX Art-Net the Transmission parameter appears in their place, in which options are available: Unicast –...
  • Page 15 PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> NEXT ENTER ENTER ENTER ART-NET config. Port 1 Universe Universe -> -> 1 0x0000 1 0x0000 [0 0x0000] NEXT ENTER Universe switch Universe switch 0 0x0...
  • Page 16: Sacn Configuration

    4.8 sACN configuration Below is a diagram showing the sACN config. menu and a description of individual parameters that can be changed depending on the user's needs. PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. ->...
  • Page 17: Settings For The Other Parameters

    In the Protocol timeout menu, the user can define the Stop DMX signal parameter: On – turns off DMX transmission when the Art-Net / sACN signal • disappears, Off – ports continue transmitting the last value. • PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. ->...
  • Page 18: Dmx Parameters

    4.10.2 DMX parameters Global configuration of DMX parameters: • Break time – duration of a low state along the line at the beginning of DMX packet transmission (range 176µs – 352µs), MAB time – (Mark After Break) – MAB length – interval after the break •...
  • Page 19 PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> 4 x NEXT ENTER Miscellaneous Protocol timeout -> -> NEXT ENTER ENTER DMX Parameters Break time Break time -> 320us [320us] NEXT ENTER MAB time MAB time...
  • Page 20: Rdm

    RDM protocol configuration for a given port. You can enable / disable support for RDM commands RDM support and enable / disable continuous search for devices supporting the RDM Auto discovery protocol. When you start the device, it is automatically searched for. PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config.
  • Page 21: Rdm Devices Detected

    PX785 G4 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> 4 x NEXT ENTER Miscellaneous Protocol timeout -> -> 3 x NEXT ENTER Screensaver Screensaver [Off] NEXT Screensaver [On] 4.10.5 RDM devices detected At this menu level, it is also possible to check the number of detected devices supporting the RDM protocol on a given DMX port Num.
  • Page 22: Setting The Display Contrast

    Next and Previous keys to adjust the value to suit your needs). To exit the Contrast menu, press the Enter key and accept the selected value. 10 x ESC PX785 G4 DMX RDM Contrast 2.137.176.112 -> NEXT...
  • Page 23: Indicator Lights

    Indicator lights The indicators diodes on the front panel of the gate provide information on the status of the unit: the four LEDs are bi-color ones (blue – orange) and communicate the status of DMX-RDM. Each diode is assigned to one of the four DMX ports.
  • Page 24 Additional information communicated by the LED indicators: if the screen saver mode is enabled or an “Art-Net Mute Indicators” • command has been received, all the diodes go out, if the gate receives an “Art-Net Indicate” command, all the diodes start •...
  • Page 25: Px785 Cooperation With The Grandma2 Console

    PX785 cooperation with the grandMA2 console The PX785 gate can work with the grandMA2 console, however, support for devices supporting the RDM protocol requires changing the console settings. To operate RDM devices, the settings must be changed in the gate Auto discovery on enabled, the gate will continuously search for RDM devices.
  • Page 26 The PX785 gate should be connected to the console via an Ethernet cable to the ETHERCON 2 (ETH1) connector with the IP address set so that the console is in the same network as the gate. If Gate 2 DMX RDM is on the 2.x.x.x network with the mask of 255.0.0.0, then for the device to work...
  • Page 27 If everything is correctly configured, the gate continuously searches for the devices supporting the RDM protocol, the console is in the same network as the gate and has enabled RDM and Art-Net Output Active support. After adding the main RDM window to the main scree, you should see a list of all devices that supported the RDM protocol:...
  • Page 28: Art-Net Commands

    Art-Net commands List of Art-Net commands supported in PX785 Name Value OpPoll 0x2000 OpPollReply 0x2100 OpOutput / OpDmx 0x5000 OpSync 0x5200 OpAddress 0x6000 OpInput 0x7000 OpTodRequest 0x8000 OpTodData 0x8100 OpTodControl 0x8200 OpRdm 0x8300 OpFirmwareMaster 0xf200 OpFirmwareReply 0xf300 "Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd”...
  • Page 29: Upgrade

    Upgrade In order to update the gate firmware, use the program DMX-Workshop, which is available on the Artistic Licence website: http://www.artisticlicence.com. Firmware updates are available on the manufacturer's website. 1. In the main menu field select the option Node List. 2.
  • Page 30 NOTE! When installing new software, problems may arise due to the Windows ® firewall settings. One of the solutions is to completely disable the system firewall for the time of uploading the new firmware version. The second is to add the DMX-Workshop program to the exceptions in the firewall giving all permissions without having to completely disable the firewall (screen below).
  • Page 31: Connection Scheme

    12 - 24V DC Controller Driver Driver Router 1: in 3: in 1: out 3: out 2: in 4: in 2: out 4: out PX785 PX785 Gate 4 DMX RDM Gate 4 DMX RDM 10 Dimensions PX785 Gat e 4 DMX RDM...
  • Page 32: Technical Data

    11 Technical data type PX785 DMX/RDM lines DMX/RDM input screw terminals RDM protocol support bi-directional signal conversion optical DMX line isolation galvanic isolation of DMX lines DHCP protocol support Art-Net version Art-Net 1, 2, 3, 4 communication method Art-Net / sACN, display and buttons...
  • Page 33 Podłęże, 26.10.2021 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Gate 4 DMX RDM Product code: PX785 meets the requirements of the following standards, as well as harmonised standards:...
