- Page 1 PX348 PxArt Audio User manual...
-
Page 2: Table Of Contents
8.2 Control via 7 or 8 channels..................20 9 Connection scheme.................22 10 Dimensions.....................23 11 Technical data..................24 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-2 BDO register number 000005972 www.pxm.pl... -
Page 3: Description

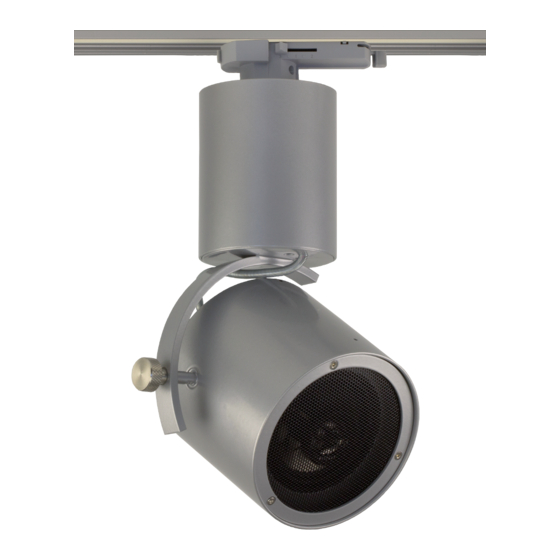

1.28, it is possible to create up to 9 playlists with 85 or 255 songs each, which allows to play up to 765 or 2295 songs. The PX348 allows to play audio tracks anywhere in the room equipped with a bus-bar system without the need for additional installation. The player can work with DMX devices in a mode that takes up 4, 5, 7 or 8 DMX channels. -
Page 4: Safety Conditions
Safety conditions The PX348 device is powered directly from standard 230V AC grid what can cause electric shock when safety rules are not observed. Therefore it is necessary to observe the following: 1. Installation, particularly power connection, should be performed by a person holding the appropriate qualifications, according to instruction manual. -
Page 5: Connectors And Control Elements
(using PX277) Diode informing about state of PxArt Audio Information about the version The PX348 is available in several versions differing in the color of the housing. Determination of housing color: PX348 – X X – available colors of housing: 1 –... -
Page 6: Audio, Memory Card And Files Naming
Example of the PxArt Audio design for white color: PX348-1 Audio, memory card and files naming The player built into PxArt Audio only supports audio files saved in *.wav format with the following parameters: *.wav files with bits per sample value of 16-bit on two-channels •... -
Page 7: Cooperation With The Px277 Configurator
Cooperation with the PX277 configurator The PxArt Audio settings can be changed by connecting to the PX277 (PxArt Settings Controller) configurator. It allows in connection with PX348 to define the following parameters: DMX address (in the range of 1 – 512), the value of bass and treble and the behavior of the device in the absence of DMX signal. -
Page 8: Information Parameters
When the loudspeaker is connected to the configurator, the PX348 will restart, and the LED will go out for a while. After the connection has been made and the parameters have been read by the PxArt Settings Controller, the speaker settings are returned to the state before the connection. -
Page 9: Dmx Address
Repeat list DMX Addr. DMX Addr. Bass +1 Treb. -2 001 * NEXT NEXT PX348 DMX Addr. PxArt Audio 509 * NOTE! Remember not to set the DMX address beyond the addressing. • 4ch – DMX range 1 – 509, 5ch –... - Page 10 Play Root T001 01:25/04:34 067% NEXT ENTER Repeat list DMX Addr. Bass +1 Treb. -2 NEXT NEXT ENTER PX348 DMX Mode. DMX Mode. PxArt Audio 4 ch 4 ch * NEXT DMX Mode. 7 ch * NEXT DMX Mode. 5 ch * NEXT DMX Mode.
-
Page 11: The Reaction To The Dmx Signal Lack
6.4 The reaction to the DMX signal lack [No signal] – defines how the device is to behave in the absence of DMX signal, possible options to choose from: • [NOS Function] – No Signal function: ◦ off – playback stops when the DMX signal is lost ◦... - Page 12 Root T001 01:25/04:34 067% NEXT ENTER Repeat list DMX Addr. Bass +1 Treb. -2 NEXT 2 x NEXT ENTER ENTER PX348 No signal NOS Function NOS Function PxArt Audio off * NEXT NEXT ENTER NOS Command NOS Command NOS Function...
-
Page 13: Additional Options
6.5 Additional options Additional PX348 settings are available in the [Options] menu, they are: • [Neutral 0] – interpreting a DMX value of 0. By default, a value of zero for each channel alters the behavior of the fixture (e.g., for channel 1 it stops playback), but when [Neutral 0] is Enabled, a value of zero is treated as neutral. -
Page 14: Playlists
Play Root T001 01:25/04:34 067% NEXT ENTER Repeat list DMX Addr. Bass +1 Treb. -2 NEXT 3 x NEXT ENTER ENTER PX348 Options Neutral 0 Neutral 0 PxArt Audio Disabled Disabled * NEXT NEXT Neutral 0 Enabled * ENTER DMX Filter... -
Page 15: Default Settings
Root T001 01:25/04:34 067% NEXT ENTER Repeat list DMX Addr. Bass +1 Treb. -2 NEXT 4 x NEXT ENTER ENTER ENTER PX348 Playlists Playlist: Root Track 1 Track 1 [play] PxArt Audio Tracks: 17 001_Mozart 001_Mozart NEXT NEXT Playlist: P01... -
Page 16: Dmx Connection
NEXT ENTER Repeat list DMX Addr. Bass +1 Treb. -2 NEXT 5 x NEXT ENTER PX348 Factory Defaults Hold PREV + NEXT PxArt Audio DMX connection PxArt Audio is a device attached to the GLOBAL Trac Pulse Control rail ®... -
Page 17: The Cross-Section Of The Dmx Global Trac Pulse Control
7.2 The cross-section of the DMX GLOBAL Trac ® Pulse Control POWER SUPPLY phase 2 phase 3 phase 1 neutral DMX - DMX + mass (GND) DMX-512 control The device can be controlled via 4, 5, 7 or 8 DMX-512 channels. 8.1 Control via 4 or 5 channels Channel 1: stop, pause, resume, start. - Page 18 Channel 2: track number selection (1 – 85) DMX value 10-12 13-15 16-18 19-21 22-24 25-27 28-30 31-33 Track number DMX value 34-36 37-39 40-42 43-45 46-48 49-51 52-54 55-57 58-60 61-63 64-66 Track number DMX value 67-69 70-72 73-75 76-78 79-81 82-84...
- Page 19 Channel 3: playback mode DMX values: 0 – 64 – play the song only once (Single track) 65 – 127 – looping a song (Repeat track) 128 – 191 – play the playlist once (Single list) 192 – 251 – looping a playlist (Repeat list) –...
-
Page 20: Control Via 7 Or 8 Channels
8.2 Control via 7 or 8 channels In the seven DMX channels mode, in addition to the same settings on the first four channels (as for the four-channel mode), PX348 can change parameters of [Bass] and [Treble] on the fifth and sixth channel. - Page 21 Channel 5: bass control (-10 to +10) Channel 6: treble control (-10 to +10) For each of the three additional channels (5 and 6), adjustment through DMX control is made for the same values. These values are shown in the table below.
-
Page 22: Connection Scheme
Connection scheme 3-phase DMX GLOBAL Trac® Pulse Control bus-bar end feed power supply cable DMX+ DMX- DMX wire (2 wires in the screen) GLOBAL Trac® GAC600 adapter... -
Page 23: Dimensions
10 Dimensions Ø121,5... -
Page 24: Technical Data
11 Technical data type PX348 power supply 230V AC DMX channels 4, 5, 7 or 8 amplifier power output audio digital format *.wav audio media cards type SD / SDHC max. supported number of tracks up to 2295* (in 9 playlists) - Page 25 Podłęże, 13.10.2021 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: PxArt Audio Product code: PX348 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
