  • Page 1 PX760 Gate 2 DMX RDM PoE User manual...

  • Page 2: Table Of Contents

    5.9.3 RDM........................21 5.9.4 Turning off the screen and LEDs..............21 5.9.5 RDM devices detected..................22 5.10 Setting the display contrast..................23 6 Information communicated by LED indicators........24 7 PX760 cooperation with the grandMA2 console........26 8 Art-Net commands..................29 9 Upgrade.....................30 10 Connection scheme................32 11 Dimensions.....................34...
  • Page 3 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 Firm. 1.10 32-003 Podłęże mail: info@pxm.pl Rev.2-0 BDO register number 000005972 www.pxm.pl 15.09.2023...

  • Page 4: Description

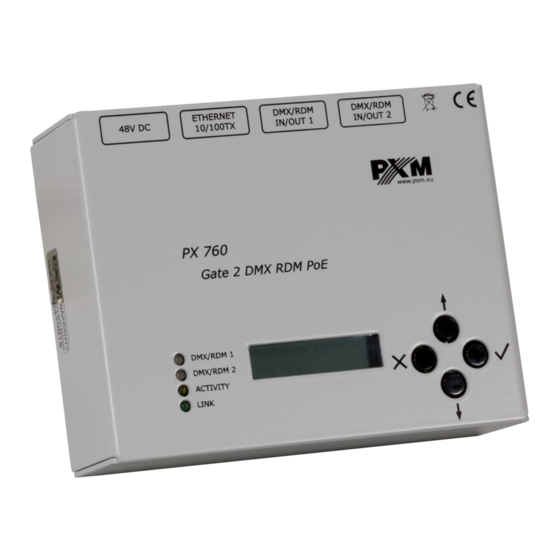

    DMX / RDM ports and two one-color ones informing about the status of the Art-Net / sACN network connection. The gate PX760 has a display and four buttons that allows to change the configuration: Art-Net / sACN, Ethernet and DMX settings (such as: Brake,...

  • Page 5: Safety Conditions

    Safety conditions PX760 Gate 2 DMX RDM PoE is a device powered with safe voltage 48V DC or power supply using twisted pair cable PoE (Power over Ethernet) in the IEEE 802.3af standard, however, during its installation and use the following rules must be strictly observed: 1.

  • Page 6: Connectors And Control Elements

    Connectors and control elements display LED indicators programming buttons...

  • Page 7: Power Supply

    48V DC power socket DMX512 ports Ethernet Neutrik etherCON port Power supply The Gate 2 DMX RDM PoE device can be powered from two power sources. The first is PoE (Power over Ethernet) in the IEEE 802.3af standard using a twisted-pair cable, without using a power supply, the second is a standard 48V DC power supply from an external power supply (no power supply included).

  • Page 8: Programming The Device

    Programming the device 5.1 Button features (escape) – allows you to exit the parameter being programmed ✕ without saving any changes or to move to a higher menu level ↓ (next) – moves you back through the menu or decreases values being set ↑...

  • Page 9: Description Of Information Parameters

    5.2 Description of information parameters The PX760 provides you with the following device information, such as: • gate model and current IP address (if an address is provided by DHCP, an asterisk * is added), protocol (Art-Net / sACN), •...

  • Page 10: Network Settings

    If DHCP is turned off, the gate operates in a static configuration (IP address, Subnet mask, Gateway address). If DHCP is turned on, the gate will start up using static settings, but will attempt to acquire new network configuration from the DHCP server. PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER...

  • Page 11: Dmx In / Out Port Settings

    Art-Net network configuration ART- NET config. or sACN sACN config. in the Port n:. Information about the status of ports is available from the main menu. Setting in Art-Net mode: PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config.

  • Page 12: Art-Net/Sacn Protocol Change

    Setting in sACN mode: PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> NEXT ENTER Port 1:____1 sACN config. Port 2:____2 -> NEXT ENTER Port 1: out Port 1* out* Port 2: in Port 2: in 5.5 Art-Net/sACN protocol change...

  • Page 13: Art-Net Configuration

    5.6 Art-Net configuration Below is a diagram showing the ART-NET config. menu and a description of individual parameters that can be changed depending on the user's needs. PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. ->...
  • Page 14 Using Universe you can change all 3 universe number components (Net switch, Sub-Net switch and Universe switch). There is a possibility of quick preview from the main menu of Universes assigned to a given port, the diagram below: PX760 G2 DMX RDM 2.137.176.112 2 x NEXT Port 1:____3...

  • Page 15: Art-Net Configuration In Mode Dmx Art-Net

    The range is 0 – 15 (0x0 – 0xf) → 5.6.1 Art-Net configuration in mode DMX Art-Net In the PX760 gate in the mode of converting the signal from DMX to Art- → Net after the change of Direction in the chosen port on DMX Art-Net, the Transmission parameter appears, in which options are available: •...
  • Page 16 PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> NEXT ENTER ENTER ENTER ART-NET config. Port 1 Universe Universe -> -> 1 0x0000 1 0x0000 [0 0x0000] NEXT ENTER Universe switch Universe switch 0 0x0...

  • Page 17: Sacn Configuration

    5.7 sACN configuration Below is a diagram showing the sACN config menu. and a description of individual parameters that can be changed depending on the user's needs. PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. ->...

  • Page 18: Presets Menu

    In the gate are predefined 2 standard sets of factory settings: 2.x.x.x and 10.x.x.x, which additionally have the option of global change of signal conversion direction (in / out) and protocol change (Art-Net / sACN). PX760 G2 DMX RDM 2.137.176.112 4 x NEXT...

  • Page 19: Art-Net / Sacn Signal Loss

    In the Protocol timeout menu, the user can define the Stop DMX signal parameter: On – disables DMX transmission when the Art-Net / sACN signal is • lost, Off – the ports continue to transmit the last value. • PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. ->...
  • Page 20 Art-Net protocol, ◦ 0 – 512 – you can force the broadcasting of a selected number of channels in the range from 0 – 512. PX760 G2 DMX RDM 2.137.176.112 4 x NEXT...

  • Page 21: Rdm

    Configuration of the RDM protocol for a given port. You can enable / disable RDM support for RDM commands and enable / disable continuous search for devices supporting the RDM Auto discovery protocol. When starting the device, it is automatically searched. PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config.

  • Page 22: Rdm Devices Detected

    PX760 G2 DMX RDM 2.137.176.112 4 x NEXT ENTER Settings Network config. -> -> 4 x NEXT ENTER Miscellaneous Protocol timeout -> -> 3 x NEXT ENTER Screensaver Screensaver [Off] NEXT Screensaver [On] 5.9.5 RDM devices detected At the level of this menu, it is also possible to check the number of detected devices supporting the RDM protocol on a given DMX port Num.

  • Page 23: Setting The Display Contrast

    Next and Previous keys to adjust the value to suit your needs). To exit the Contrast menu, press the Enter key and accept the selected value. 10 x ESC PX760 G2 DMX RDM Contrast 2.137.176.112 -> NEXT...

  • Page 24: Information Communicated By Led Indicators

    Information communicated by LED indicators The indicators diodes on the front panel of the gate provide information on the status of the unit: the two upper LEDs are bi-color ones (blue – orange) and communicate the status of DMX-RDM. Each diode is assigned to one of the two DMX ports.
  • Page 25 Additional information communicated by the LED indicators: if the screen saver mode is enabled or an “Art-Net Mute Indicators” • command has been received, all the diodes go out, if the gate receives an “Art-Net Indicate” command, all the diodes start •...

  • Page 26: Px760 Cooperation With The Grandma2 Console

    PX760 cooperation with the grandMA2 console The PX760 gate can work with the grandMA2 console, however, support for devices supporting the RDM protocol requires changing the console settings. To operate RDM devices, the settings must be changed in the gate Auto discovery on enabled, the gate will continuously search for RDM devices.
  • Page 27 The PX760 gate should be connected to the console via an Ethernet cable to the ETHERCON 2 (ETH1) connector with the IP address set so that the console is in the same network as the gate. If Gate 2 DMX RDM is on the 2.x.x.x network with the mask of 255.0.0.0, then for the device to work...
  • Page 28 If everything is correctly configured, the gate continuously searches for the devices supporting the RDM protocol, the console is in the same network as the gate and has enabled RDM and Art-Net Output Active support. After adding the main RDM window to the main scree, you should see a list of all devices that supported the RDM protocol:...

  • Page 29: Art-Net Commands

    Art-Net commands List of Art-Net commands supported in PX760 Name Value OpPoll 0x2000 OpPollReply 0x2100 OpOutput / OpDmx 0x5000 OpSync 0x5200 OpAddress 0x6000 OpInput 0x7000 OpTodRequest 0x8000 OpTodData 0x8100 OpTodControl 0x8200 OpRdm 0x8300 OpFirmwareMaster 0xf200 OpFirmwareReply 0xf300...

  • Page 30: Upgrade

    Upgrade In order to update the gate firmware, use the program DMX-Workshop, which is available on the Artistic Licence website: http://www.artisticlicence.com. Firmware updates are available on the manufacturer's website. 1. In the main menu field select the option Node List. 2.
  • Page 31 NOTE! When installing new software, problems may arise due to the Windows ® firewall settings. One of the solutions is to completely disable the system firewall for the time of uploading the new firmware version. The second is to add the DMX-Workshop program to the exceptions in the firewall giving all permissions without having to completely disable the firewall.

  • Page 32: Connection Scheme

    10 Connection scheme...
  • Page 33 → a) device operating in Art-Net / sACN DMX mode with a 48V DC power supply connected 48V DC Router Driver → b) device operating in DMX Art-Net / sACN mode using PoE power supply in the IEEE 802.3af standard R o u t e r / s w i t c h with PoE power supply Driver...

  • Page 34: Dimensions

    11 Dimensions...

  • Page 35: Technical Data

    12 Technical data type PX760 DMX/RDM lines DMX/RDM input socket 3-pin or 5-pin Neutrik XLR RDM protocol support bi-directional signal conversion optically isolated XLR connectors galvanic isolated XLR connectors Ethernet connector type Neutrik etherCON DHCP protocol support Art-Net version Art-Net 1, 2, 3, 4...
  • Page 36 width: 127mm dimensions height: 42mm depth: 99mm "Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd”...
  • Page 37 Podłęże, 05.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Gate 2 DMX RDM PoE Product code: PX760 meets the requirements of the following standards, as well as harmonised...
