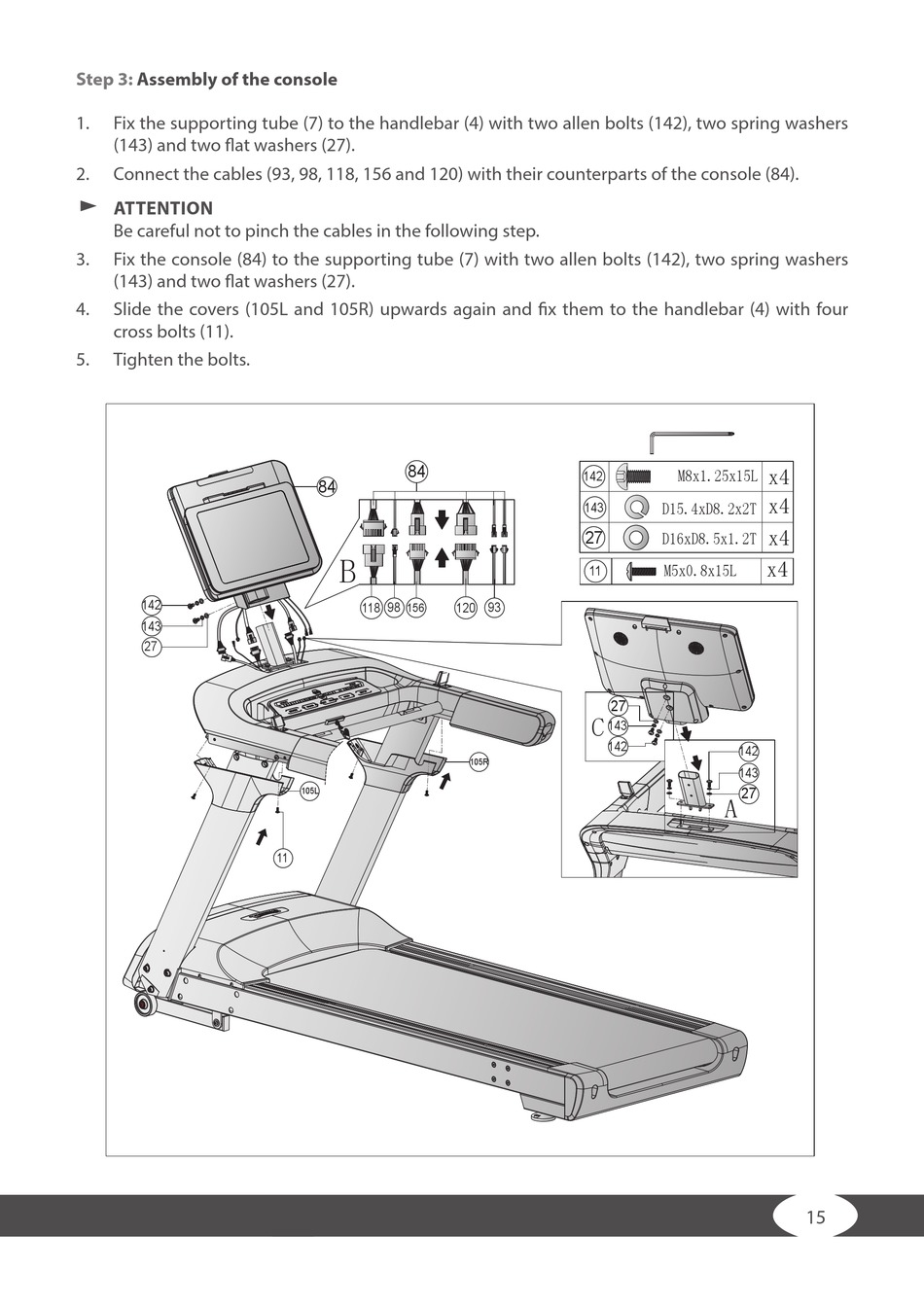

Step 3: Assembly of the console
1. Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers
(143) and two flat washers (27).
2. Connect the cables (93, 98, 118, 156 and 120) with their counterparts of the console (84).
࣑ ATTENTION
Be careful not to pinch the cables in the following step.
3. Fix the console (84) to the supporting tube (7) with two allen bolts (142), two spring washers
(143) and two flat washers (27).
4. Slide the covers (105L and 105R) upwards again and fix them to the handlebar (4) with four
cross bolts (11).
5. Tighten the bolts.
142
143
27
84
84
B
118 98
156
105L
11
142
143
27
11
120 93
27
C
143
142
105R
x4
M8x1.25x15L
x4
D15.4xD8.2x2T
x4
D16xD8.5x1.2T
x4
M5x0.8x15L
142
143
27
A
