Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.

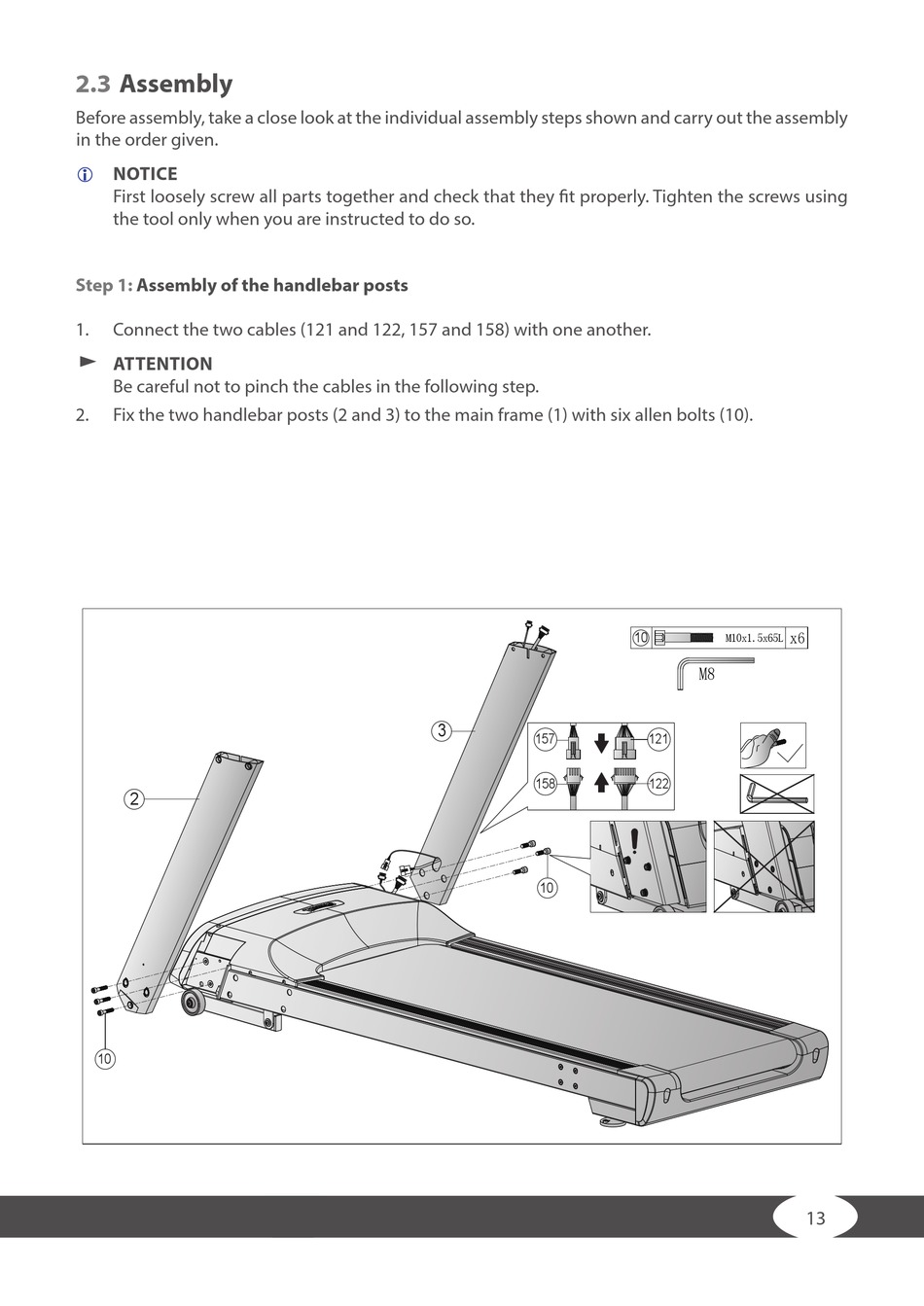

Step 1: Assembly of the handlebar posts
1. Connect the two cables (121 and 122, 157 and 158) with one another.
࣑ ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the two handlebar posts (2 and 3) to the main frame (1) with six allen bolts (10).
2
10
3
157
158
10
10
x6
M10x1.5x65L
M8
121
122
