Summary of Contents for Technica Engineering 100/1000BASE-T1 MediaConverter hMTD
- Page 1 100/1000BASE-T1 MEDIACONVERTER hMTD USER MANUAL October 2020 Manual-Version: 1.3 Firmware: 1.0.0 Hardware: v1.0 and higher...
-
Page 2: Table Of Contents
1.1.3 LINKS ..................... 5 General operating and safety strategy of Technica Engineering’s Products 1.1.4 General design rules for the power supply of Technica Engineering’s 1.1.5 products ....................... 5 Warranty and Safety Information ..............6 RoHS Certificate of Compliance ..............8 Scope of delivery ................... - Page 3 CHANGELOG ....................19 CONTACT ......................20 10 DECLARATION OF CONFORMITY ..............21 100/1000BASE-T1 MediaConverter hMTDUser Manual...
-
Page 4: General Information

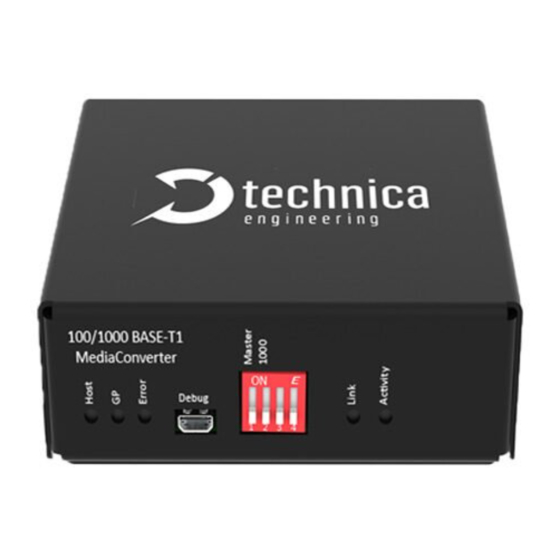

1.1 Functionality and Features of the 100/1000BASE-T1 MediaConverter hMTD Figure 1-1: 100/1000BASE-T1 MediaConverter hMTD The Technica Engineering 100/1000BASE-T1 MediaConverter hMTD transmits data frames directly from the physical layer 100/1000BASE-T1 to the physical layer 100 BASE-TX or 1000BASE-T with deterministic and constant delay of about 2 µs. -
Page 5: Links
Should Technica Engineering’s products be operated in voltage ranges beyond those specified in the norms, which represents a breach of the conditions of operation, then this will void the product warranty and Technica Engineering will assume no liability whatsoever of the results and/or consequences thereof. -
Page 6: Warranty And Safety Information
The protection against too high supply-voltage protects the device even in case of an internal failure of the Technica Engineering device. 1.2 Warranty and Safety Information Before operating the device, read this manual thoroughly and retain it for your reference. - Page 7 When integrating the modules in a vehicle or test set-up, the user must ensure appropriate ventilation or air convection. Technica Engineering products must not be considered as a safety element out of context when using safety-critical systems and must be included in the safety assessment when used. The development class in a safety system must be taken into account with standard QM referred to ISO26262.
-
Page 8: Rohs Certificate Of Compliance
1.3 RoHS Certificate of Compliance Technica Engineering’s 100/1000BASE-T1 MediaConverter hMTD complies with RoHS (Restriction of Hazardous Substances Directive), see Certificate of Compliance HAPTER 1.4 Scope of delivery The delivery includes: 1x 100/1000BASE-T1 MediaConverter hMTD Cable-set can be ordered separately: 1x Cable set... -
Page 9: Hardware Interfaces
This is a standard RJ-45 connector to be used with CAT5e STP cable for 100BASE- TX or 1000BASE-T connections. 2.1.2 hMTD Connector (2) Name Picture Part Number Rosenberger hMTD Stecker E6K10A-1CAZ5-Z Table 2-1: Parts of Tyco hMTD Connector 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 10: Power Mqs Connector (3)
Force LinkDown Input (Active Low) (LD) ForceSlave Mode (Active Low) (FS) Power GND VBAT (6 to 30 Volt DC) Table 2-4: MQS Connector For more information about PINs 2, 3, and 4 connected to PIN 1, please see 3.2. HAPTER 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 11: Micro Hdmi Debug Connector (4)
If the Error LED is lit red, a disconnection of the link can clear the LED. This can be done by changing the DIP switch position to break the link and changing it back to form a link again. 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 12: Configuration Of The Device
MediaConverter is configured for 1000BASE-T1 the RJ-45 connector is always 1000BASE-T. 3.2 Configuration through Power MQS Connector The PINs 2, 3, and 4 of the Power MQS connector 2.1.3) can be used for HAPTER configuration and link status output. 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 13: Link Status Output (Ls) (Pin 2)
The 100/1000BASE-T1 MediaConverter in frame generator mode is working only on the BASE-T1 port as a frame generator. The generated frame is in total 1514 bytes long and is sent with Roundabout 12 Mbps in 100BASE-T1 mode Roundabout 120 Mbps in 1000BASE-T1 mode 100/1000BASE-T1 MediaConverter hMTDUser Manual... - Page 14 The frame contains no specific MAC source or destination. All bytes have the same pattern: 0xA5 and 0x5A in alternation. Figure 3-1: Frame by Frame Generator 100/1000BASE-T1 MediaConverter hMTDUser Manual...
-
Page 15: Standard Use Case
IEEE 1000BASE-T1 conform PHY the DIP Switch must be ON [up] DIP Switch 4: Frame Generator function, always must be OFF [down]. Only in Frame Generator-Mode, the DIP Switch must be ON [up], in this case, the device no longer works as a converter 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 16: Used 100/1000Base-T1 Filter
5 USED 100/1000BASE-T1 FILTER The following 1000BASE-T1 Filter is used in the 100/1000BASE-T1 MediaConverter: Figure 5-1: Used Filter in 100/1000BASE-T1 MediaConverter 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 17: Additional Information
100/1000BASE-T1 segments is limited to 15 meters It is not possible to mix up different speeds from RJ-45 to BASE-T1-Port Don’t use it as Frame Generator while converting. Data loss may occur 100/1000BASE-T1 MediaConverter hMTDUser Manual... -
Page 18: List Of Figures
7 LIST OF FIGURES Figure 1-1: 100/1000BASE-T1 MediaConverter hMTD ..........4 Figure 2-1: Front side of MediaConverter ..............9 Figure 2-2: Back side of MediaConverter ..............9 Figure 2-3: hMTD Connector ..................10 Figure 3-1: Frame by Frame Generator ..............14 Figure 4-1: Example of a use case ................ - Page 19 8 CHANGELOG Version Chapter Description Date First release May, 2020 Declaration of Conformity added July, 2020 Updates Sept, 2020 Images updated 2.3.1 Resetting Error LED Oct, 2020 Declaration of conformity updated 100/1000BASE-T1 MediaConverter hMTDUser Manual...
- Page 20 If you have any questions regarding this product, please feel free to contact us: Technica Engineering GmbH Leopoldstr. 236 80807 München Germany Technical support: support@technica-engineering.de General information: Info@technica-engineering.de Most current user manuals and product information: https://technica-engineering.de/en/ 100/1000BASE-T1 MediaConverter hMTDUser Manual...
- Page 21 Español Por la presente, Technica Engineering GmbH Dansk declara que el producto 100/1000BASE-T1 Hermed erklærer Technica Engineering MediaConverter hMTD (TE-1403), GmbH, produktet 100/1000BASE-T1 conforme con la Directiva 2015/863/EU and...
- Page 22 Polski Latviešu Technica Engineering GmbH niniejszym oświadcza, że produkt 100/1000BASE-T1 Ar šo Technica Engineering GmbH deklarē, ka MediaConverter hMTD (TE-1403), jest zgodny produkts 100/1000BASE-T1 MediaConverter z dyrektywą 2015/863/EU and 2014/30/UE. atbilst Direktīvai hMTD (TE-1403), Pełny tekst deklaracji zgodnośc I UE jest 2015/863/EU and 2014/30/ES.
- Page 23 Slovensko of-conformity.pdf Technica Engineering GmbH potrjuje, da je izdelek 100/1000BASE-T1 MediaConverter hMTD (TE-1403), skladen irektivo 2015/863/EU 2014/30/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: https://technica-engineering.de/wp- content/uploads/2020/08/100-1000base-t1- mediaconverter-hmtd-te-1403-eu-declaration- of-conformity.pdf Slovensky Technica Engineering GmbH týmto vyhlasuje, že...
