100/1000BASE-T1
MEDIACONVERTER
MATEnet
USER MANUAL
October 2020
Manual-Version: 1.3
Firmware: 1.0.0
Hardware: v0.4 and higher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100/1000BASE-T1 MEDIACONVERTER MATEnet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technica Engineering 100/1000BASE-T1 MEDIACONVERTER MATEnet

Summary of Contents for Technica Engineering 100/1000BASE-T1 MEDIACONVERTER MATEnet

  • Page 1 100/1000BASE-T1 MEDIACONVERTER MATEnet USER MANUAL October 2020 Manual-Version: 1.3 Firmware: 1.0.0 Hardware: v0.4 and higher...

  • Page 2: Table Of Contents

    LINKS ......................5 1.1.4 General operating and safety strategy of Technica Engineering’s Products 1.1.5 General design rules for the power supply of Technica Engineering’s products ........................6 Warranty and Safety Information ................ 6 RoHS Certificate of Compliance ................9 Scope of delivery ....................9 ChangeLog Hardware ...................
  • Page 3 STANDARD USE CASE ..................18 USED 100/1000BASE-T1 FILTER ..............19 ADDITIONAL INFORMATION ................20 LIST OF FIGURES .................... 21 CHANGELOG ....................22 CONTACT ...................... 23 10 DECLARATION OF CONFORMITY ..............24 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 4: General Information

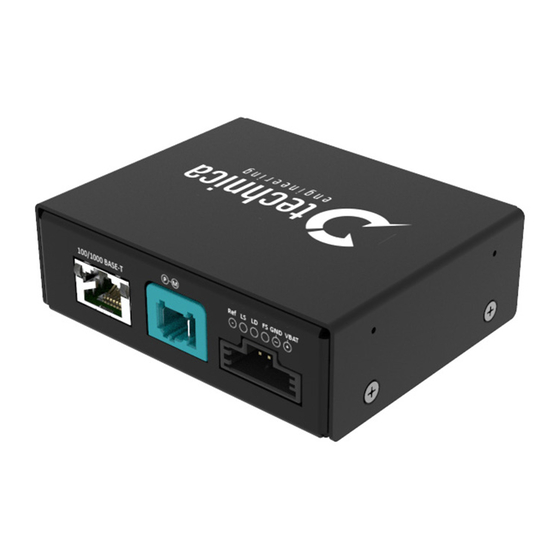

    1.1 Functionality and Features of the 100/1000BASE-T1 MediaConverter MATEnet Figure 1-1: 100/1000BASE-T1 MediaConverter MATEnet The Technica Engineering 100/1000BASE-T1 MediaConverter MATEnet transmits data frames directly from the physical layer 100/1000BASE-T1 to the physical layer 100 BASE-TX or 1000BASE-T with deterministic and constant delay of about 2 µs.

  • Page 5: General Information

    Should Technica Engineering’s products be operated in voltage ranges beyond those specified in the norms, which represents a breach of the conditions of operation, then this will void the product warranty and Technica Engineering will assume no liability whatsoever for the results and/or consequences thereof.

  • Page 6: General Design Rules For The Power Supply Of Technica Engineering's Products

    General design rules for the power supply of Technica Engineering’s products The power supply circuit of Technica Engineering’s products are equipped with self- protection components. This automatic function protects the devices against excessive temperature and too high supply-voltage by switching the device off. This automatic switch-off function is independent of any software function.
  • Page 7 When integrating the modules in a vehicle or test set-up, the user must ensure appropriate ventilation or air convection. Technica Engineering products must not be considered as a safety element out of context when using safety-critical systems and must be included in the safety assessment when used. The development class in a safety system must be taken into account with standard QM referred to ISO26262.
  • Page 8 This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Technica Engineering GmbH is registered as manufacturer of the brand "Technica Engineering" and...

  • Page 9: Rohs Certificate Of Compliance

    1.3 RoHS Certificate of Compliance Technica Engineering’s 100/1000BASE-T1 MediaConverter MATEnet complies with RoHS (Restriction of Hazardous Substances Directive), see Certificate of Compliance HAPTER 1.4 Scope of delivery The delivery includes: 1x 100/1000BASE-T1 MediaConverter MATEnet Cable-set can be ordered separately: 1x Cable set...

  • Page 10: Hardware Interfaces

    MediaConverter on the front side and backside. Figure 2-1: Front side of MediaConverter Figure 2-2: Backside of MediaConverter 2.1.1 RJ-45 Connector (1) This is a standard RJ-45 connector to be used with CAT5e STP cable for 100BASE-TX or 1000BASE-T connections. 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 11: Matenet Connector (2)

    You can use the official Tyco tool for these crimp contacts. But we recommend to purchase a ready to use cord set. Official Crimp Tool: Name TE CONNECTIVITY CS11K NANO-MQS, 0.13-0.35 SQ.M TE Internal Number 4 -1579014 – 0 Distributor Börsig GmbH www.boersig.com Distributor Digikey https://www.digikey.de/product-detail/de/te-application- tooling/4-1579014-0/A141876-ND/5121549 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 12: Power Mqs Connector (3)

    Force LinkDown Input (Active Low) (LD) ForceSlave Mode (Active Low) (FS) Power GND VBAT (6 to 30 Volt DC) Table 2-4: MQS Connector For more information about PINs 2, 3, and 4 connected to PIN 1, please see HAPTER 3.2. 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 13: Micro Hdmi Debug Connector (4)

    100 or 1000Base-T1 Ethernet data transmission. Table 2-5 LED Description The 100/1000BASE-T1 MediaConverter has LEDs integrated in the RJ-45 connector. For RJ45 connection: Left side: Green = 100 BASE-TX link Right side: Orange = ACTIVITY Orange = 1000 BASE-T link 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 14: Resetting Error Led

    If the Error LED is lit red, a disconnection of the link can clear the LED. This can be done by changing the DIP switch position to break the link and changing it back to form a link again. 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 15: Configuration Of The Device

    It is not possible to mix two speeds of the ports. If the MediaConverter is configured for 100BASE-T1, the RJ-45 connector is always 100BASE-TX. If the MediaConverter is configured for 1000BASE-T1 the RJ-45 connector is always 1000BASE-T. 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 16: Configuration Through Power Mqs Connector

    These pins are active low. There is an integrated 5K Ohm Pullup to 3.3 Volts. For normal operation please disconnect the PINs. Activated Force Slave mode overrides the DIP switch configuration. Force Slave mode must be applied before powering up. Otherwise, a power reset is needed. 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 17: Frame Generator

    Roundabout 12 Mbps in 100BASE-T1 mode Roundabout 120 Mbps in 1000BASE-T1 mode The frame contains no specific MAC source or destination. All bytes have the same pattern: 0xA5 and 0x5A in alternation. Figure 3-1: Frame by Frame Generator 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 18: Standard Use Case

    IEEE 1000BASE-T1 conform PHY the DIP Switch must be ON [up] DIP Switch 4: Frame Generator function, always must be OFF [down]. Only in Frame Generator-Mode, the DIP Switch must be ON [up], in this case, the device no longer works as a converter 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 19: Used 100/1000Base-T1 Filter

    5 USED 100/1000BASE-T1 FILTER The following 1000BASE-T1 Filter is used in the 100/1000BASE-T1 MediaConverter: Figure 5-1: Used Filter in 100/1000BASE-T1 MediaConverter 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 20: Additional Information

    100/1000BASE-T1 segments is limited to 15 meters It is not possible to mix up different speeds from RJ-45 to BASE-T1-Port Don’t use it as Frame Generator while converting. Data loss may occur 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 21: List Of Figures

    7 LIST OF FIGURES Figure 1-1: 100/1000BASE-T1 MediaConverter MATEnet ..........4 Figure 2-1: Front side of MediaConverter ............... 10 Figure 2-2: Backside of MediaConverter ................. 10 Figure 2-3: MATEnet Connector ..................12 Figure 3-1: Frame by Frame Generator ................17 Figure 4-1: Example of a use case...................

  • Page 22: Changelog

    8 CHANGELOG Version Chapter Description Date First release July 2020 Declaration of Conformity added July 2020 Updates Sept 2020 Images updated 2.3.1 Resetting Error LED Oct 2020 Declaration of conformity updated 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 23: Contact

    If you have any questions regarding this product, please feel free to contact us: Technica Engineering GmbH Leopoldstr. 236 80807 München Germany Technical support: support@technica-engineering.de General information: Info@technica-engineering.de Most current user manuals and product information: https://technica-engineering.de/en/ 100/1000BASE-T1 MediaConverter MATEnetUser Manual...

  • Page 24: Declaration Of Conformity

    Español Dansk Por la presente, Technica Engineering GmbH Hermed erklærer Technica Engineering declara que el producto 100/1000BASE-T1 GmbH, at produktet 100/1000BASE-T1 MediaConverter MATEnet (TE-1402), es MediaConverter MATEnet (TE-1402), er i conforme con la Directiva 2015/863/EU and overensstemmelse med Direktiv 2014/30/UE.
  • Page 25 2015/863/EU and 2014/30/EU. De volledige tekst van de EUconformiteitsverklaring kan worden Latviešu geraadpleegd op het volgende internetadres: Ar šo Technica Engineering GmbH deklarē, ka https://technica-engineering.de/wp- produkts 100/1000BASE-T1 MediaConverter content/uploads/2020/07/100-1000base-t1- MATEnet (TE-1402), atbilst Direktīvai mediaconverter-matenet-te-1402-eu- 2015/863/EU and 2014/30/ES. Pilns ES declaration-of-conformity.pdf...
  • Page 26 Slovensko declaration-of-conformity.pdf Technica Engineering GmbH potrjuje, da je izdelek 100/1000BASE-T1 MediaConverter Português MATEnet (TE-1402), skladen z irektivo O(a) abaixo assinado(a) Technica 2015/863/EU and 2014/30/EU. Celotno Engineering GmbH declara que o produto besedilo izjave EU o skladnosti je na voljo na...
