- Page 1 100BASE-T1 MEDIACONVERTER USER MANUAL July 2020 Manual-Version: 2.5 Hardware-Version: 1.5...
-
Page 2: Table Of Contents
CONTENT GENERAL INFORMATION ................. 3 Functionality and Features of the 100BASE-T1 MediaConverter_NXP .... 3 1.1.1 Features ......................3 1.1.2 General Information ..................4 1.1.3 LINKS ......................4 1.1.4 General operating and safety strategy of Technica Engineering’s Products 1.1.5 General design rules for the power supply of Technica Engineering’s products ........................ -
Page 3: General Information

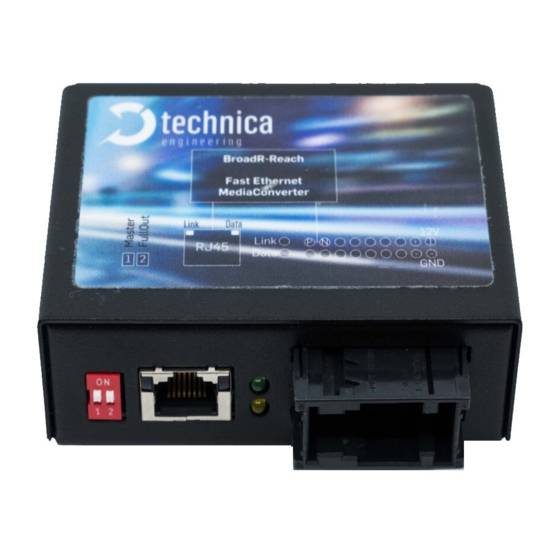

1.1 Functionality and Features of the 100BASE-T1 MediaConverter_NXP Figure 1-1: 100BASE-T1 MediaConverter_NXP The Technica Engineering 100BASE-T1 MediaConverter_NXP transmits data frames directly from the physical layer BroadR-Reach (100BASE-T1) to Fast Ethernet (100BASE-TX) with constant delay time of 2.0µs. 1.1.1 Features 1 port BroadR-Reach (100BASE-T1) Ethernet with NXP TJA1100 Transceiver... -
Page 4: General Information
International Protection: IP 2 0 Operating temperature: -40° to +80 °Celsius 1.1.3 LINKS The User can download the latest firmware and documentation for the 100BASE-T1 MediaConvert_NXP here: https://technica-engineering.de/en/produkt/100base-t1-mediaconverter-nxp/ 1.1.4 General operating and safety strategy of Technica Engineering’s Products Technica Engineering’s products are designed for operation in automotive systems and for supply voltages of nominal 12 V or 24 V. -
Page 5: General Design Rules For The Power Supply Of Technica Engineering's Products
General design rules for the power supply of Technica Engineering’s products The power supply circuit of Technica Engineering’s products are equipped with self- protection components. This automatic function protects the devices against excessive temperature and too high supply-voltage by switching the device off. This automatic switch-off function is independent of any software function. -
Page 6: Warranty And Safety Information
1.2 Warranty and Safety Information Before operating the device, read this manual thoroughly and retain it for your reference. The latest documentation for the 100BASE-T1 Media Converter NXP can be downloaded here: https://technica-engineering.de/en/produkt/100base-t1- mediaconverter-nxp/ Use the device only as described in this manual. - Page 7 This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Technica Engineering GmbH is registered as manufacturer of the brand "Technica Engineering" and...
-
Page 8: Rohs Certificate Of Compliance
1.3 RoHS Certificate of Compliance Technica Engineering’s 100BASE-T1 MediaConverter NXP complies with RoHS (Restriction of Hazardous Substances Directive) Certificate of Compliance. 1.4 Scope of Delivery The delivery includes: 1x 100BASE-T1 MediaConverter NXP 1x 1m Ethernet Cable 1x Black MQS Connector... -
Page 9: Hardware Interfaces
2.1 Connectors On the label on top of the device you can see an overview about all HW interfaces of the 100BASE-T1 MediaConverter_NXP. Figure 2-1: Label of 100BASE-T1 MediaConverter_NXP 2.1.1 Black MQS Connector The pinning of the ECU connectors is listed on the label on top of the device as well. -
Page 10: Rj45 Ethernet Connectors
100BASE-T1 port, negative n.c. 100BASE-T1 port, positive n.c. Table 2: Pinning of black MQS connector 2.1.2 RJ45 Ethernet connectors There is one RJ45 Standard Ethernet connector for Fast Ethernet (100BASE-TX). 100BASE-T1 MediaConverter NXP User Manual... -
Page 11: Other Interfaces
There is a bug in the used BroadR-Reach PHY. When the 100BASE-T1 Plus and Minus lines are swapped, and the 100BASE-T1 port is set to Slave then the Link LED is lit, but there is no data transmission possible. So please connect the 100BASE-T1 lines correctly. -
Page 12: Configuration Of The Device
100BASE-T1 Port is set to HalfOut Table 4: Configuration of DIP-Switches In a 100BASE-T1 Link one device has to be set as Master, the other has to be set as Slave. The 100BASE-T1 MediaConverter_NXP should always be set to FullOut. HalfOut was a former configuration for EMC optimization but it will cause an instable link. -
Page 13: Standard Use Case
4 STANDARD USE CASE Here you can see a standard use case of the 100BASE-T1 MediaConverter_BCM: Figure 4-1: Example for use case MediaConverter Device under Test. DIP-Switch 2 should be always ON, DIP-Switch 1 is dependent of the DUT. If DUT is Master, MC must be configured as Slave (DIP-switch 1: OFF) and vice versa. -
Page 14: 100Base-T1 Filter
5 100BASE-T1 FILTER The following 100BASE-T1 filter is used in the 100BASE-T1 MediaConverter_NXP Hardware version 1.0 and following Figure 5-1: 100BASE-T1 filter for HW v1.0 and following 100BASE-T1 MediaConverter NXP User Manual... -
Page 15: Additional Information
100BASE-T1 segments is limited to 15 meters The difference between the 100BASE-T1 MediaConverter_BCM and 100BASE- T1 MediaConverter_NXP is the used transceiver for the 100BASE-T1 PHY. In the beginning of development there were problems with the interoperability of different PHY manufacturers. -
Page 16: List Of Figures
7 LIST OF FIGURES Figure 1-1: 100BASE-T1 MediaConverter_NXP ..............3 Figure 2-1: Label of 100BASE-T1 MediaConverter_NXP ..........9 Figure 4-1: Example for use case ..................13 Figure 5-1: 100BASE-T1 filter for HW v1.0 and following ..........14 100BASE-T1 MediaConverter NXP User Manual... -
Page 17: Changelog
July 2020 of Technica Engineering’s Products 1.1.5 Added information on General Design Rules for the Power Supply of Technica Engineering’s Products Warranty and Safety Information updated RoHS Certificate of Compliance added Declaration of conformity added 100BASE-T1 MediaConverter NXP User Manual... -
Page 18: Contact
If you have any questions regarding this product, please feel free to contact us: Technica Engineering GmbH Leopoldstr. 236 80807 München Germany Technical support: support@technica-engineering.de General information: Info@technica-engineering.de Most current user manuals and product information: https://technica-engineering.de/en/ 100BASE-T1 MediaConverter NXP User Manual... -
Page 19: Declaration Of Conformity
Käesolevaga deklareerib Technica декларира, че продуктът Модул за улавяне Engineering GmbH, et toode hõivamismoodul 100BASE-T1 MediaConverter NXP (TE1600), е 100BASE-T1 MediaConverter NXP (TE1600), в съответств ие с Директива 2014/30/ЕС. vastab direktiivi 2014/30/EL nuetele. ELi Цялостният текст на ЕС декларацията за... - Page 20 Latviešu mediaconverter-nxp-1600-eu-declaration-of- conformity.pdf Ar šo Technica Engineering GmbH deklarē, ka produkts 100BASE-T1 MediaConverter NXP Polski (TE1600), atbilst Direktīvai 2014/30/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams Technica Engineering GmbH niniejszym šādā...
- Page 21 Slovensko Technica Engineering GmbH potrjuje, da je izdelek 100BASE-T1 MediaConverter NXP (TE1600), skladen z irektivo 2014/30/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: https://technica-engineering.de/wp- content/uploads/2018/06/100base-t1- mediaconverter-nxp-1600-eu-declaration-of- conformity.pdf...
