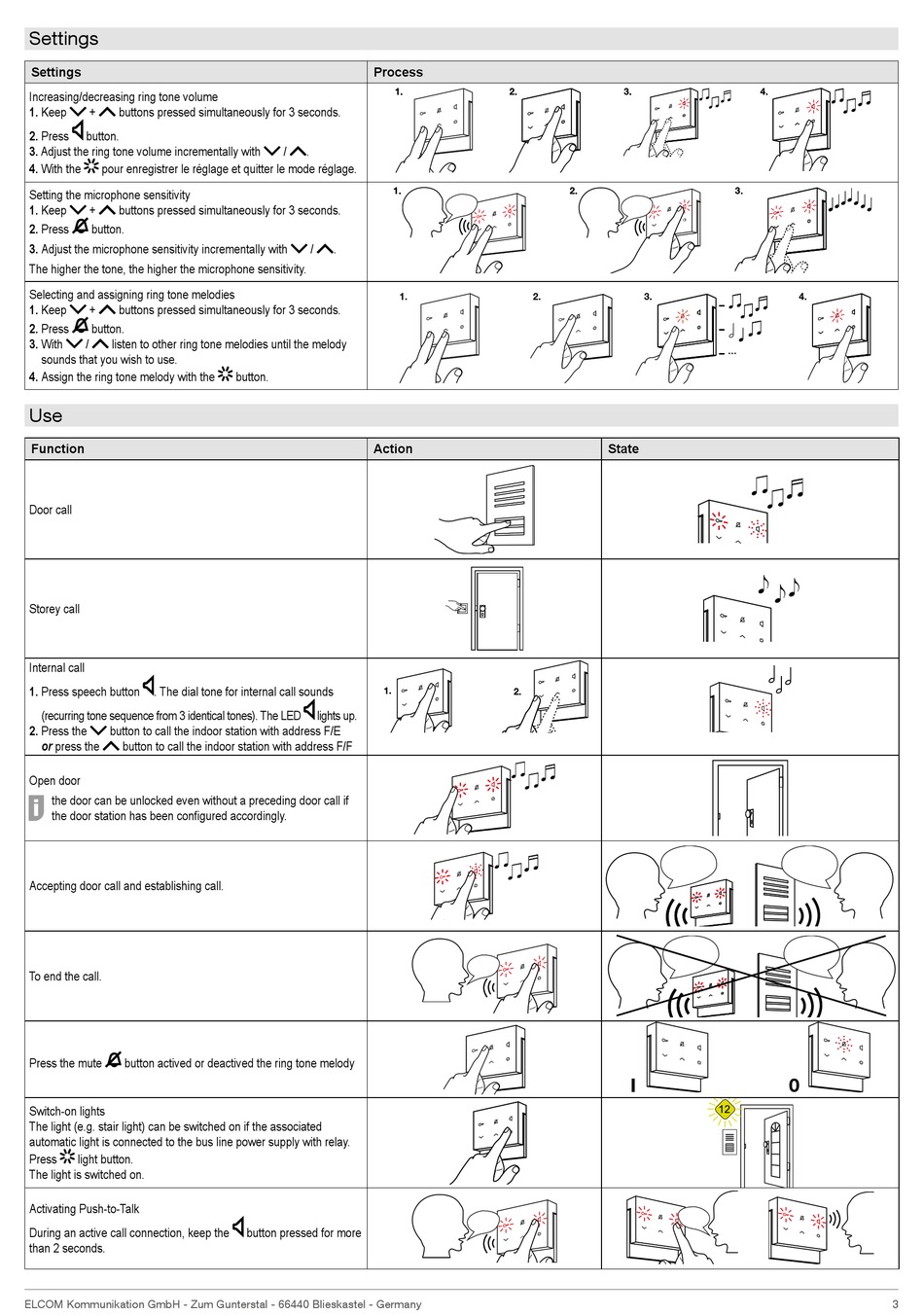

Settings

Settings
Increasing/decreasing ring tone volume
1. Keep + buttons pressed simultaneously for 3 seconds.
2. Press button.
3. Adjust the ring tone volume incrementally with
4. With the pour enregistrer le réglage et quitter le mode réglage.
Setting the microphone sensitivity
1. Keep + buttons pressed simultaneously for 3 seconds.
2. Press button.
3. Adjust the microphone sensitivity incrementally with
The higher the tone, the higher the microphone sensitivity.
Selecting and assigning ring tone melodies
1. Keep + buttons pressed simultaneously for 3 seconds.
2. Press button.
3. With / listen to other ring tone melodies until the melody
sounds that you wish to use.
4. Assign the ring tone melody with the

Use

Function
Door call
Storey call
Internal call
1. Press speech button . The dial tone for internal call sounds
(recurring tone sequence from 3 identical tones). The LED
2. Press the button to call the indoor station with address F/E
or press the button to call the indoor station with address F/F
Open door
the door can be unlocked even without a preceding door call if
P
the door station has been configured accordingly.
Accepting door call and establishing call.
To end the call.
Press the mute button actived or deactived the ring tone melody
Switch-on lights
The light (e.g. stair light) can be switched on if the associated
automatic light is connected to the bus line power supply with relay.
Press light button.
The light is switched on.
Activating Push-to-Talk
During an active call connection, keep the
than 2 seconds.
ELCOM Kommunikation GmbH - Zum Gunterstal - 66440 Blieskastel - Germany
Process
/ .
/ .
1.
button.
Action
lights up.
button pressed for more
2. 3.
State
I
4.
0
3
