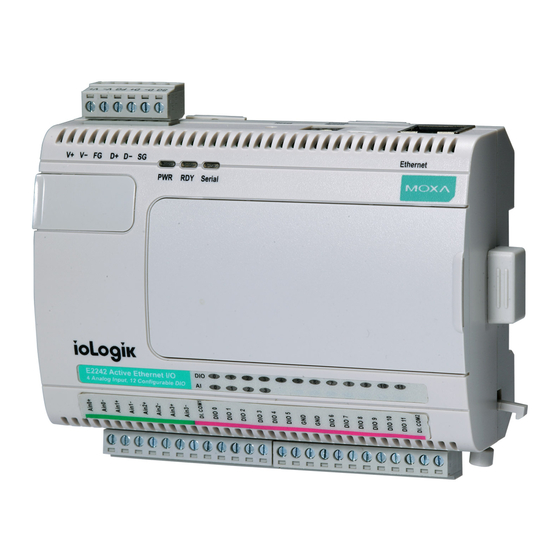

ioLogik E2200 Series
Smart Ethernet remote I/O with Click&GO Logic
Introduction
Moxa's ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to
control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa's
ioLogik E2200 Series will, when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to
the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control
using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured
specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling
methods.
PC-Free Alarm and Control Intelligence
This device supports simple yet powerful Click&Go™ technology to
configure event-driven reports and alarms delivered over email, TCP/
UDP, or SNMP traps, giving you a powerful and effective tool for
delivering timestamped status updates in real time.
With built-in Click&Go™ intelligence, this device can be configured
for simple outputs paired up with simple input triggers without the
need for a PC controller. This allows it to be configured to
automatically report I/O events according to conditions specified by
the user.
SNMP for Ethernet Device Management
By using SNMP, IT engineers can configure the device to deliver alarms (traps) for specific I/O events, or use it to read or write directly to the I/O
registers. For the strongest security, the device features SNMPv3, with authentication and encryption. With Moxa's SNMP-capable I/O, even IT
professionals can easily integrate industrial sensors and servos over an Ethernet backbone, and with its strong network management tools, it is
ideal for a wide variety of industrial applications, including environmental monitoring, telecommunications, power production and delivery, and
transportation.
Features and Benefits
Front-end intelligence with patented Click&Go control logic, up to 24 rules
•
Active communication with MX-AOPC UA Server
•
Saves time and wiring costs with peer-to-peer communications
•
Supports SNMP v1/v2c/v3
•
Friendly configuration via web browser
•
Simplifies I/O management with MXIO library for Windows or Linux
•
Wide operating temperature models available for -40 to 75°C (-40 to 167°F)
•
environments
Certifications
