Moxa Technologies ioLogik E1500-T Quick Installation Manual

ioLogik E1500 Series
Quick Installation Guide
First Edition, May 2012
1. Overview
Boasting a threaded M12 Ethernet port to ensure wired
connectivity, a spring-type terminal block for vibration-resistant
cabling, and a soundly convenient DIN rail mounting assembly ,
the ioLogik E1500 series is designed to easily withstand the severe
vibrations experienced on rolling stock and waysides. Carefully
engineered channel-to-channel isolation gives protection against
cross-line power surges and crosstalk, safeguarding stable data
communications. In addition, this remote I/O is compliant with EN
50121-3-2, EN 50121-4 and the essential sections of the EN 50155
standard (covering operating temperature, power input voltage,
electrical surges, ESD and vibration), all of which are fundamental
for any electronic equipment used on or around railway vehicles.
Model Selection:
ioLogik DI DO DIO Relay
E1510-T 12 – – –
E1512-T 4 – 4 –
Package Checklist
• 1 ioLogik E1500 series remote I/O product
• Documentation and software CD
• Quick installation guide (printed)
2. Specifications
System
Ethernet: 10/100 Mbps, M12 connector
Protection: 1.5 KV magnetic isolation
Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, Bootp,
HTTP
Power Input: 24 VDC nominal, 12 to 48 VDC
Wiring: I/O cable max. 14 AWG
Dimensions: 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
Weight: 825 g
Operating Standard Models: -40 to 85°C (-40 to
Temperature: 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
P/N: 1802015000010
– 1 –
Ambient Relative
Humidity:
Standards and
Certifications:
Warranty Period:
Details:
Digital Input
Sensor Type:
I/O Mode:
Dry Contact:
Wet Contact:
Isolation:
Counter/Frequency:
Digital Output
I/O Mode:
Pulse Wave
Width/Frequency:
Over-voltage
Protection:
Over-current
Protection:
Over-temperature
Shutdown:
AI AO RTD TC
Current Rating:
– – – –
Isolation:
– – – –
3. Installation
Power and Networking
Connect the +12 to +48 VDC power line to the ioLogik E1500's
terminal block V+ terminal; connect the ground from the power
supply to the V- terminal. If an earth ground is available, then
connect the ground pin (
Mounting and Cabling
The ioLogik E1500 can be used with both DIN rail and wall mounts.
When mounting on a rail, release the bottom mounting kit, install
the ioLogik on the rail, and then restore the bottom mounting kit to
fix the ioLogik to the rail. When using wall mounting, release both
the upper and bottom DIN rail kits.
The ioLogik E1500 has an M12 Ethernet port for connecting either
a standard direct- or crossover-Ethernet cable via a locking M12
connector.
5 to 95% (non-condensing)
UL 508, EN50155, EN50121-3-2,
EN50121-4 (pending)
5 years
See www.moxa.com/warranty
NPN, PNP, and Dry contact
DI or Event Counter
• On: short to GND
• Off: open
• On: 0 to 3 VDC
• Off: 10 to 30 VDC
3K VDC or 2K Vrms
250 Hz, power off storage
DO or Pulse Output
1 ms/500 Hz
45 VDC
2.6 A (4 channels @650 mA)
175°C (typical), 150°C (min.)
200 mA per channel
3K VDC or 2K Vrms
).
– 2 –
LED Indicators
Type Color Description
PWR Green System power in ON
Off System power is OFF
RDY Green System is ready
Green Located
Blinking
Red System Booting-up Error
Green/Red Safe Mode
Blinking
Red Firmware upgrade (LED flashes for 3
Blinking seconds then stays Red until restart )
Off System is not ready
LAN Green 100Mb
Amber 10Mb
Blinking Data Transmitting
Off Ethernet Off
EXP Green Expansion Mode Ready
Red Configuration Fail
Off Stand-alone Mode
DIO Green Channel ON
Red Diagnostic Error
Off Channel OFF

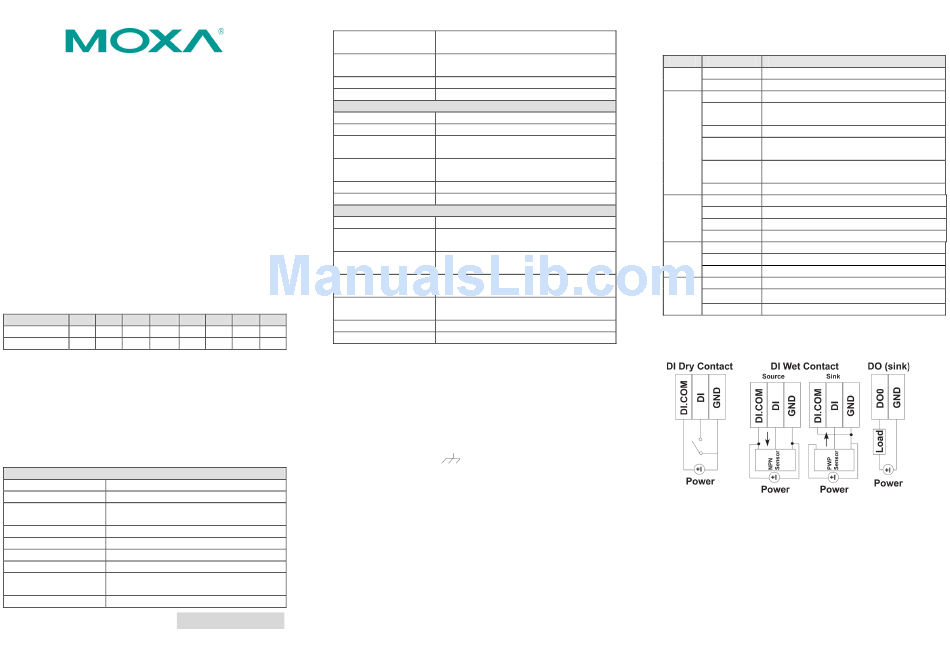

4. I/O Wiring
Digital Input/Output (Sink Type)
5. System Configuration
Configuration via Web Console
Main configuration of an ioLogik E1500 is via its web console.
• Default IP Address: 192.168.127.254
• Subnet Mask: 255.255.255.0
Note: Be sure to configure the host PC's IP address to the same
subnet as the ioLogik E1500. For example, 192.168.127.253
– 3 –
