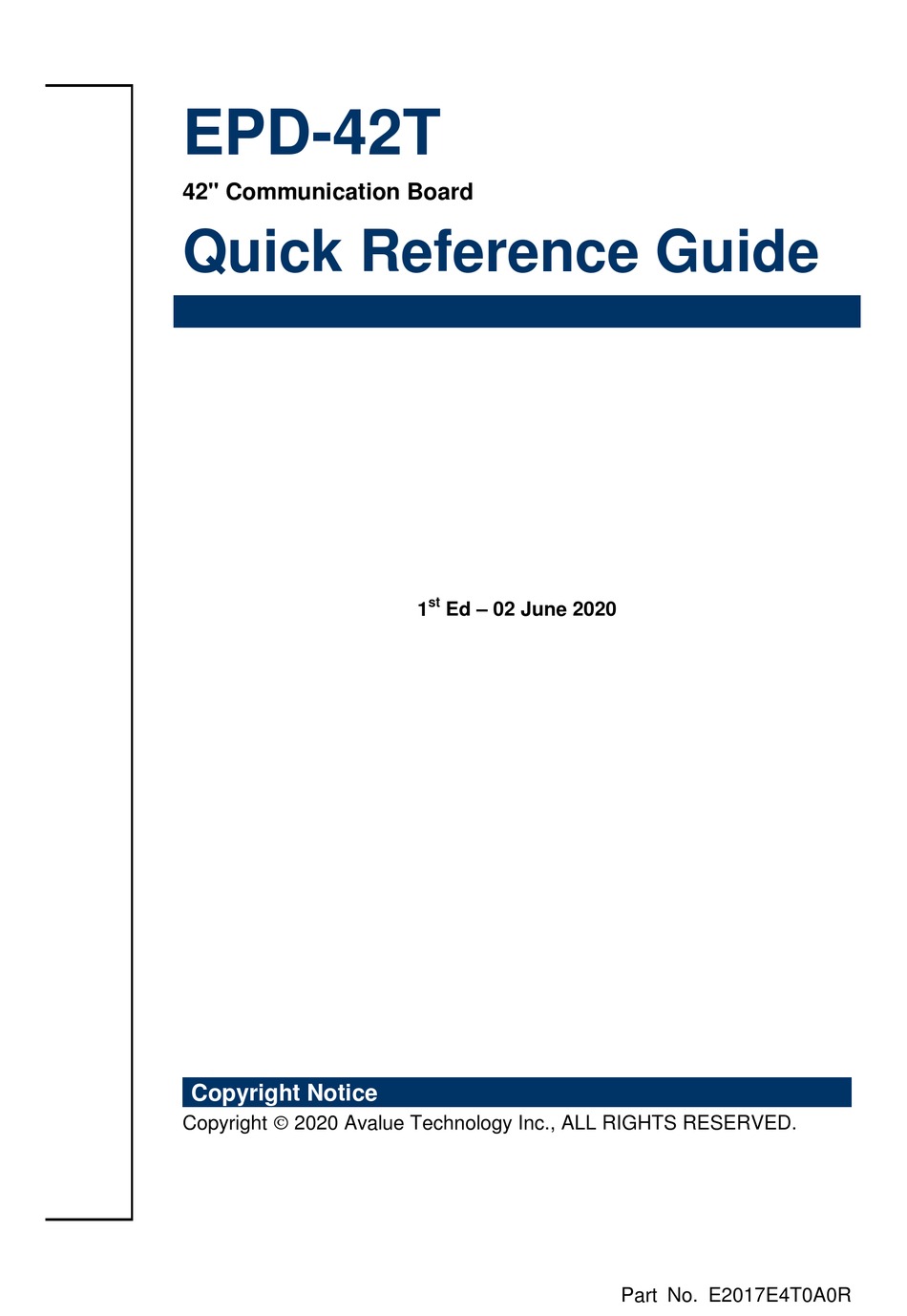

- Page 1 EPD-42T 42" Communication Board Quick Reference Guide Ed – 02 June 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017E4T0A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 EPD-42T Quick Reference Guide...
-
Page 3: Table Of Contents
Quick Reference Guide Content Getting Started ......................4 1.1 Safety Precautions ....................4 1.2 Packing List ....................... 4 1.3 System Specifications ....................5 1.4 System Overview ...................... 7 1.5 System Dimensions ....................8 EPD-42T Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EPD-42T 42" Communication Board 1 x Power Adapter ... -
Page 5: System Specifications
Power Connector Lockable DC Jack Power Requirement DC +12V / 5A Power Type AT/ATX (AT is default) Dimension 918.8 x 704.6 x 37.6mm Weight 6.5 KG Color Black Mounting Kit VESA Wall mount holes (100 x 100) EPD-42T Quick Reference Guide... - Page 6 0°C ~ 40°C (w/SSD, mSATA) ambient with air flow Temperature Operating Humidity 5% ~ 90% relative humidity, non-condensing Storage Temperature -20°C ~ 60°C Certification CE/FCC Class B OS Supported Android/Linux Note: Specifications are subject to change without notice. 6 EPD-42T Quick Reference Guide...
-
Page 7: System Overview
RJ-45 Ethernet connector USB2.0 2 x USB2.0 connector USB OTG USB OTG connector Micro SD socket Micro SD socket DC IN DC Power-in connector PCB WiFi antenna 2 x PCB WiFi antenna Membrane keypad Membrane keypad EPD-42T Quick Reference Guide... -
Page 8: System Dimensions
EPD-42T 1.5 System Dimensions (Unit: mm) 8 EPD-42T Quick Reference Guide...
