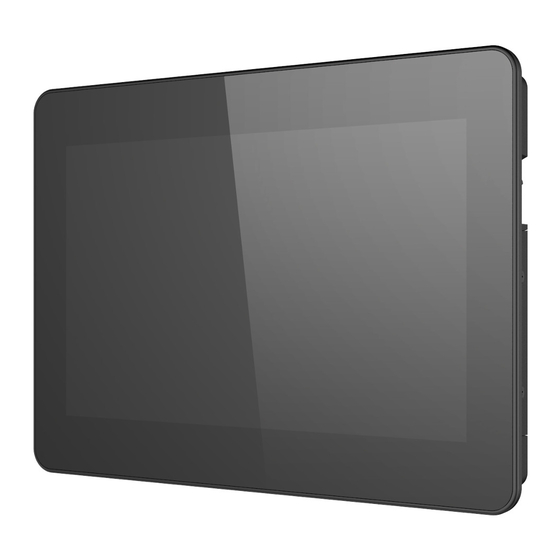

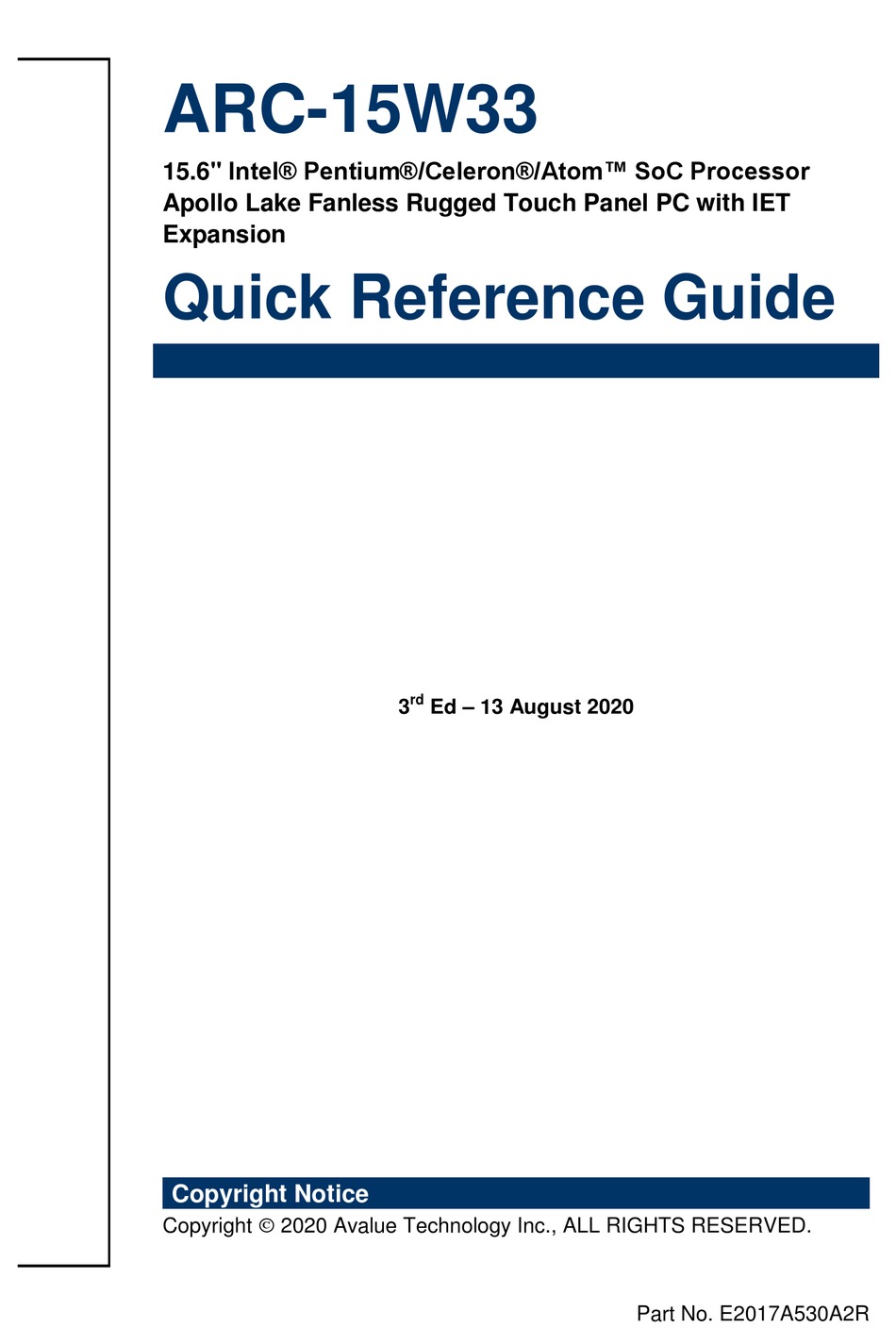

- Page 1 ARC-15W33 15.6" Intel® Pentium®/Celeron®/Atom™ SoC Processor Apollo Lake Fanless Rugged Touch Panel PC with IET Expansion Quick Reference Guide Ed – 13 August 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017A530A2R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 ARC-15W33 Quick Reference Guide...
-
Page 3: Table Of Contents
1.4 System Overview ....................12 1.4.1 I/O View ..........................12 1.5 System Dimensions ....................13 Hardware Configuration ..................14 2.1 ARC-15W33 connector mapping................15 2.1.1 Serial port 1 connector (COM1) ..................... 15 2.1.2 Serial port 2 connector (COM2) ..................... 15 2.2 Installing Hard Disk &... - Page 4 2.12 ARC-BYT DB-G Connectors settings ..............48 2.12.1 Serial Port 1 connector (G_COM1) ..................48 2.12.2 Serial Port 2 connector (G_COM2) ..................48 2.12.3 Serial Port 3 connector (G_COM3) ..................49 2.13 ARC-BYT DB-H Jumpers settings ................49 4 ARC-15W33 Quick Reference Guide...
- Page 5 3.6.2.7.2 CPU Power Management Configuration ..................66 3.6.2.8 Network Stack Configuration ......................67 3.6.2.9 CSM Configuration........................... 68 3.6.2.10 NVMe Configuration ......................... 68 3.6.2.11 USB Configuration ........................... 69 3.6.2.12 Security Configuration ........................70 3.6.3 Chipset ..........................70 ARC-15W33 Quick Reference Guide...
- Page 6 Boot ............................82 3.6.6 Save and exit ........................83 3.6.6.1 Save Changes and Reset ........................ 83 3.6.6.2 Discard Changes and Reset ......................83 3.6.6.3 Restore Defaults ..........................84 3.6.6.4 Launch EFI Shell from filesystem device ..................84 6 ARC-15W33 Quick Reference Guide...
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x ARC-15W33 Panel PC 1 x Power Adapter ... -
Page 8: System Specifications
1 x HDMI (by ARC-BYT DB-C) Audio Port Realtek ALC892 HD codec LAN Port 2 x Intel I211AT GbE controller Wireless LAN Antenna 3 x Antenna Indicator Light HDD LED, Power LED (Green for Power, Yellow for HDD) 8 ARC-15W33 Quick Reference Guide... - Page 9 Fanless OS Support Linux, Ubuntu, Windows 10 Reliability EMI Test CE/ FCC class B Dust and Rain Test Front Panel IP65, Rear IP41 except I/O Vibration Test Random Vibration Operation: 1. PSD: 0.00454G²/Hz , 1.5 Grms ARC-15W33 Quick Reference Guide...
- Page 10 1 One corner , three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating -10 ~ +50 degree C Temperature Operating Humidity 0 ~ 90% Relative Humidity, Non-condensing Storage Temperature -20 ~ 60 degree Compliant with following Flexible Expansion Modules 10 ARC-15W33 Quick Reference Guide...
- Page 11 3 x COM (w/o isolation, RS-232 only) ARC-BYT DB-H 2COM (RS-232) + 1USB 2.0 ARC-BYT DB-K 2COM (RS-232) + 1LAN ARC-BYT DB-E 12-bit GPIO+CAN Bus ARC-BYT DB-F CAN Bus for OBDII Note: Specifications are subject to change without notice. ARC-15W33 Quick Reference Guide 11...
-
Page 12: System Overview
Default: Lockable DC Jack DC-IN DC Power-in connector Option: Phoenix Connector(MOQ apply) Serial port 1/2 connector DB-9 male connector COM1/2 4 x USB 3.0 connector LAN1/2 RJ-45 Ethernet 1/2 HDD/Power LED indicator Power Switch Power on button 12 ARC-15W33 Quick Reference Guide... -
Page 13: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) ARC-15W33 Quick Reference Guide 13... -
Page 14: Hardware Configuration
ARC-15W33 2. Hardware Configuration For advanced information, please refer to: 1- ARC-APL, ARC-BYT DB-A/B/C/D/E/F/G/H/K included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 14 ARC-15W33 Quick Reference Guide... -
Page 15: Arc-15W33 Connector Mapping
PIN PIN Signal TxD- Please set BIOS & JCOM1_SEL1 TxD+ RxD+ RxD- Please set BIOS & JCOM1_SEL1 2.1.2 Serial port 2 connector (COM2) Signal PIN PIN Signal NDCDB# NDSRB# NRXDB NRTSB# NTXDB NCTSB# NDTRB# NRIB# ARC-15W33 Quick Reference Guide 15... -
Page 16: Installing Hard Disk & Memory
Memory Installation: Remove 3 screws to release the chassis cover, and remove it. Step 2.1 Insert the SODIMM into the memory socket. Step 2.2 Re-assemble your system back through previous steps to complete the installation. 16 ARC-15W33 Quick Reference Guide... - Page 17 Quick Reference Guide Step 3. HDD Installation: Insert the HDD into the Drive Bay and fasten 2 screws. ARC-15W33 Quick Reference Guide 17...
-
Page 18: Installing Arc-Byt Db
ARC-15W33 2.3 Installing ARC-BYT DB Step 1. Unfasten 2 screws of the HDD bracket and take it off. Step 2. Remove 4 screws to release the chassis cover, and remove it. 18 ARC-15W33 Quick Reference Guide... - Page 19 Quick Reference Guide Step 2.1 Insert the ARC-BYT DB into the socket and fasten 3 screws. Step 2.2 Re-assemble your system back through previous steps to complete the installation ARC-15W33 Quick Reference Guide 19...
-
Page 20: Arc-Apl Overviews
ARC-15W33 2.4 ARC-APL Overviews 20 ARC-15W33 Quick Reference Guide... -
Page 21: Arc-Apl Jumper And Connector List
5 x 1 wafer, pitch 2.00mm JUSB2 On-board header for USB2.0 5 x 1 wafer, pitch 2.00mm ULAN1/2 RJ-45 Ethernet 1/2 Mini-PCIe connector MPCIE1 Battery connector 2 x 1 wafer, pitch 1.25mm PWR1 Power connector ARC-15W33 Quick Reference Guide 21... - Page 22 2 x 1 wafer, pitch 2.00mm SATA_PWR1 SATA Power connector JFPC1 FPC connector 8 x 1 wafer, pitch 0.50mm 2 x 2 header, pitch 2.00mm JUPS1 Battery connector JBTN1 Power Button 2 x 1 wafer, pitch 2.00mm 22 ARC-15W33 Quick Reference Guide...
-
Page 23: Arc-Apl Jumpers & Connectors Settings
Quick Reference Guide 2.6 ARC-APL Jumpers & Connectors settings 2.6.1 Clear CMOS (JBAT1) Protect* Clear CMOS *Default 2.6.2 Serial port 1/2 pin9 signal select (JRI1/JRI2) Ring* +12V JRI2 JRI1 * Default ARC-15W33 Quick Reference Guide 23... -
Page 24: Pwm Level Select (Jpwm_Sel1)
ARC-15W33 2.6.3 PWM Level select (JPWM_SEL1) +3.3V* * Default 2.6.4 AT/ATX Input power select (JAT1) ATX* * Default 24 ARC-15W33 Quick Reference Guide... -
Page 25: Serial Port 1 In Rs-232/422/485 Mode (Jcom_Sel1)
COM1-3 422RX1+ NRXDA COM1-2 485_422TX1+ NDTRA# 11 COM1-4 12 422RX1- Note: This connector is available after modify the mode of COM1 in BIOS setting. * Default 2.6.6 LCD Inverter connector (JBKL1) Signal VBRIGHT BKLEN +12V ARC-15W33 Quick Reference Guide 25... -
Page 26: On-Board Header For Usb2.0 (Jusb1)
ARC-15W33 2.6.7 On-board header for USB2.0 (JUSB1) Signal +5VSB USB_R_DN6 USB_R_DP6 2.6.8 On-board header for USB2.0 (JUSB2) Signal +5VSB USB_CA_PN7 USB_CA_PP7 26 ARC-15W33 Quick Reference Guide... -
Page 27: Battery Connector (Jbat1)
Quick Reference Guide 2.6.9 Battery connector (JBAT1) Signal +RTCBATT 2.6.10 LCD backlight brightness adjustment (JVR_BTN1) Signal Note BLK_VR_MOD VR must select 10K/1% Low pulse button for BLK_BRI_UP backlight brighter Low pulse button for BLK_BRI_DN backlight dim ARC-15W33 Quick Reference Guide 27... -
Page 28: Lvds Connector (Lvds1)
LVDS_DATA1_P LVDS_DATA0_N 12 11 LVDS_DATA1_N LVDS_DATA2_P 16 15 LVDS_DATA3_P LVDS_DATA2_N 18 17 LVDS_DATA3_N LVDS_DATA4_P 22 21 LVDS_DATA5_P LVDS_DATA4_N 24 23 LVDS_DATA5_N LVDS_DATA6_P 28 27 LVDS_DATA7_P LVDS_DATA6_N 30 29 LVDS_DATA7_N LVDS_CLK1_P LVDS_CLK2_P LVDS_CLK1_N LVDS_CLK2_N +12V +12V 28 ARC-15W33 Quick Reference Guide... -
Page 29: Amplifier_R (Jspr1)
Quick Reference Guide 2.6.12 AMPLIFIER_R (JSPR1) Signal SPK_R- SPK_R+ 2.6.13 AMPLIFIER_L (JSPL1) Signal SPK_L- SPK_L+ ARC-15W33 Quick Reference Guide 29... -
Page 30: Bios Spi Connector (Bios_Spi1)
ARC-15W33 2.6.14 BIOS SPI connector (BIOS_SPI1) Signal PIN PIN Signal +1.8VSB SPI_CS#0 SPI_CLK SPI_MISO SPI_MOSI SPI_HOLD# 2.6.15 EC Debug connector (JEC1) Signal EC_SMCLK_DEBUG EC_SMDAT_DEBUG 30 ARC-15W33 Quick Reference Guide... -
Page 31: B2B Connector (Jb2B1)
PCIE_RXP_3 HDMI_CLKN Signal PIN PIN Signal HDMI_CLKP CLK_PCIE_N3 CLK_PCIE_P3 +12V MIC1-R-IN +12V MIC1-L-IN MIC1_JD LPC_SERIRQ 46 +5VSB FRONT-JD LINE1-JD LPC_FRAME# 47 +5VSB FRONT-R-OUT LINE1-R-IN LPC_IET_CLK1 48 +5VSB FRONT-L-OUT LNE1-L-IN LPC_AD0 49 +5VSB LPC_AD1 50 +5VSB ARC-15W33 Quick Reference Guide 31... -
Page 32: Touch Panel Connector (Jtp1)
ARC-15W33 2.6.17 Touch panel connector (JTP1) Signal SENSE 2.6.18 SATA Power connector (SATA_PWR1) Signal 32 ARC-15W33 Quick Reference Guide... -
Page 33: Fpc Connector (Jfpc1)
Quick Reference Guide 2.6.19 FPC connector (JFPC1) Signal +5VSB +3.3VSB EC_SMDAT EC_SMCLK AUX_INT1# +5VSB 2.6.20 Battery connector (JUPS1) Signal PIN PIN Signal AC_PRESENT2 AC_PRESENT1 SMB_DSA_S0 SMB_SCL_S0 ARC-15W33 Quick Reference Guide 33... -
Page 34: Power Button (Jbtn1)
ARC-15W33 2.6.21 Power Button (JBTN1) Signal BUTTON 2.6.22 Miscellaneous setting connector (JFP1) Signal PIN PIN Signal +3.3VSB VOL_UP# VOL_DN# BRI_UP# BRI_DN# LED_ONOFF# PWR_BTN_IN_EC# POWER_LED2 10 POWER_LED1 34 ARC-15W33 Quick Reference Guide... -
Page 35: Led Board Connector (Jled1)
Quick Reference Guide 2.6.23 LED Board connector (JLED1) Signal +5VSB LUMEN_EN 2.6.24 Low pin count connector (JLPC1) Signal PIN PIN Signal LPC_AD0 +3.3V LPC_AD1 PLT_RST_BUF# LPC_AD2 LPC_FRAME# LPC_AD3 LPC_PORT80_CLK LPC_SERIRQ ARC-15W33 Quick Reference Guide 35... -
Page 36: Power Connector (Pwr1)
ARC-15W33 2.6.25 Power connector (PWR1) *Option: Phoenix Connector Signal +DCIN 36 ARC-15W33 Quick Reference Guide... -
Page 37: Arc-Byt Db-A/B/C/D/E/F/G/H/K Overviews
Quick Reference Guide 2.7 ARC-BYT DB-A/B/C/D/E/F/G/H/K Overviews 2.7.1 ARC-BYT DB-A 2.7.2 ARC-BYT DB-B 2.7.3 ARC-BYT DB-C ARC-15W33 Quick Reference Guide 37... -
Page 38: Arc-Byt Db-D
ARC-15W33 2.7.4 ARC-BYT DB-D 2.7.5 ARC-BYT DB-E 2.7.6 ARC-BYT DB-F 38 ARC-15W33 Quick Reference Guide... -
Page 39: Arc-Byt Db-G
Quick Reference Guide 2.7.7 ARC-BYT DB-G 2.7.8 ARC-BYT DB-H 2.7.9 ARC-BYT DB-K ARC-15W33 Quick Reference Guide 39... -
Page 40: Arc-Byt Db-A/B/C/D/E/F/G/H/K Connector List
Serial Port 1/2 connector DB-9 male connector D_JB2B1 B2B connector 2.8.5 ARC-BYT DB-E Jumpers Label Function Note E_JCAN20 CAN2.0 Switch 3 x 1 header, pitch 2.00mm For user update FW 3 x 1 header, pitch 2.00mm E_JIAP1 40 ARC-15W33 Quick Reference Guide... -
Page 41: Arc-Byt Db-F
H_USB_PWR_SEL1 USB Power selector 3 x 1 header, pitch 2.00mm Connectors Label Function Note H_JUSB1 USB3.0 connector H_COM1/2 Serial Port 1/2 connector DB-9 male connector H_JB2B1 B2B connector 2.8.9 ARC-BYT DB-K Connectors Label Function Note ARC-15W33 Quick Reference Guide 41... - Page 42 ARC-15W33 I_JLAN1 RJ-45 Ethernet I_COM1/2 Serial Port 1/2 connector DB-9 male connector B2B connector I_JB2B1 42 ARC-15W33 Quick Reference Guide...
-
Page 43: Arc-Byt Db-D Connectors Settings
Serial Port 1 connector (D_COM1) Signal PIN PIN Signal NDCD#_3_D NDSR#_3_D NRXD_3_D NRTS#_3_D NTXD_3_D NCTS#_3_D NDTR#_3_D NRI#_3_D 2.9.2 Serial Port 2 connector (D_COM2) Signal PIN PIN Signal NDCD#_2_D NDSR#_2_D NRXD_2_D NRTS#_2_D NTXD_2_D NCTS#_2_D NDTR#_2_D NRI#_2_D ARC-15W33 Quick Reference Guide 43... -
Page 44: Arc-Byt Db-E Jumpers & Connectors Settings
ARC-15W33 2.10 ARC-BYT DB-E Jumpers & Connectors settings 2.10.1 CAN2.0 Switch (E_JCAN20) CAN2.0A (11-bit)* CAN2.0B (29-bit) *Default 2.10.2 For user update FW (E_JBOOT0) Default* For user update FW *Default 44 ARC-15W33 Quick Reference Guide... -
Page 45: For User Update Fw (E_Jiap1)
Quick Reference Guide 2.10.3 For user update FW (E_JIAP1) Default* For user update FW *Default 2.10.4 For user update FW (E_CN1) Signal +3.3V SWDIO SWCLK CAN_BUS_RESET# ARC-15W33 Quick Reference Guide 45... - Page 46 ARC-15W33 2.10.5 General purpose I/O connector (E_GPIO1) Signal +3.3V 2.10.6 CAN Bus connector (E_CAN1) Signal CANH CANL 46 ARC-15W33 Quick Reference Guide...
-
Page 47: Arc-Byt Db-F Connectors Settings
CAN Bus connector 1 (F_CAN1) Signal PIN PIN Signal CAN_PWR CAN_8 CAN_IND CAN_9 BAT_GND CAN_WAKE CAN_11 UART_RXD_1_F CAN_12 UART_TXD_1_F CAN_13 CAN_14 2.11.2 CAN Bus connector 2 (F_CAN2) Signal PIN PIN Signal BAT_PWR CAN_12 CAN_8 CAN_13 CAN_9 CAN_14 BAT_GND CAN_11 ARC-15W33 Quick Reference Guide 47... -
Page 48: Arc-Byt Db-G Connectors Settings
Serial Port 1 connector (G_COM1) Signal PIN PIN Signal NDCD#_3_G NDSR#_3_G NRXD_3_G NRTS#_3_G NTXD_3_G NCTS#_3_G NDTR#_3_G NRI#_3_G 2.12.2 Serial Port 2 connector (G_COM2) Signal PIN PIN Signal NDCD#_2_G NDSR#_2_G NRXD_2_G NRTS#_2_G NTXD_2_G NCTS#_2_G NDTR#_2_G NRI#_2_G 48 ARC-15W33 Quick Reference Guide... -
Page 49: Serial Port 3 Connector (G_Com3)
Quick Reference Guide 2.12.3 Serial Port 3 connector (G_COM3) Signal PIN PIN Signal NDCD#_1_G NDSR#_1_G NRXD_1_G NRTS#_1_G NTXD_1_G NCTS#_1_G NDTR#_1_G NRI#_1_G 2.13 ARC-BYT DB-H Jumpers settings 2.13.1 USB Power selector (H_USB_PWR_SEL1) +5VSB* *Default ARC-15W33 Quick Reference Guide 49... -
Page 50: Arc-Byt Db-H Connectors Settings
Serial Port 1 connector (H_COM1) Signal PIN PIN Signal NDCD#_1_H NDSR#_1_H NRXD_1_H NRTS#_1_H NTXD_1_H NCTS#_1_H NDTR#_1_H NRI#_1_H 2.14.2 Serial Port 2 connector (H_COM2) Signal PIN PIN Signal NDCD#_2_H NDSR#_2_H NRXD_2_H NRTS#_2_H NTXD_2_H NCTS#_2_H NDTR#_2_H NRI#_2_H 50 ARC-15W33 Quick Reference Guide... -
Page 51: Arc-Byt Db-K Connectors Settings
Serial Port 1 connector (I_COM1) Signal PIN PIN Signal NDCD#_1_I NDSR#_1_I NRXD_1_I NRTS#_1_I NTXD_1_I NCTS#_1_I NDTR#_1_I NRI#_1_I 2.15.2 Serial Port 2 connector (I_COM2) Signal PIN PIN Signal NDCD#_2_I NDSR#_2_I NRXD_2_I NRTS#_2_I NTXD_2_I NCTS#_2_I NDTR#_2_I NRI#_2_I ARC-15W33 Quick Reference Guide 51... -
Page 52: Bios Setup
ARC-15W33 3.BIOS Setup 52 ARC-15W33 Quick Reference Guide... -
Page 53: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP ARC-15W33 Quick Reference Guide 53... -
Page 54: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 54 ARC-15W33 Quick Reference Guide... -
Page 55: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ARC-15W33 Quick Reference Guide 55... -
Page 56: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 56 ARC-15W33 Quick Reference Guide... -
Page 57: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ARC-15W33 Quick Reference Guide 57... -
Page 58: Trusted Computing
EFI protocol and INT1A interface will not be available. Select to Tell O.S. to support PPI Spec Version Physical Presence Spec Version 1.2 or 1.3 Note some HCK tests might not 1.3[Default] support 1.3. 3.6.2.2 APCI Settings 58 ARC-15W33 Quick Reference Guide... - Page 59 Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enabled/Disabled USB Standby Power USB Standby Power Setting Enabled[Default], during S3/S4/S5. Disabled Wake Up by Ring Wake Up by Ring from S3/S4/S5. Enabled[Default], ARC-15W33 Quick Reference Guide 59...
-
Page 60: It8528 Super Io Configuration
Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). 60 ARC-15W33 Quick Reference Guide... -
Page 61: Serial Port 1 Configuration
3.6.2.3.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled UART 232[Default] UART 232 422 485 UART 422 Change the Serial Port UART 485 3.6.2.3.2 Serial Port 2 Configuration ARC-15W33 Quick Reference Guide 61... -
Page 62: Serial Port 3 Configuration
Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.3.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.3.4 Serial Port 4 Configuration 62 ARC-15W33 Quick Reference Guide... -
Page 63: Serial Port 5 Configuration
Quick Reference Guide Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.3.5 Serial Port 5 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.4 H/W Monitor ARC-15W33 Quick Reference Guide 63... -
Page 64: S5 Rtc Wake Settings
Fixed Time, system will wake on the hr::min::sec Wake system from S5 Fixed Time specified. Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). 3.6.2.6 Serial Port Console Redirection 64 ARC-15W33 Quick Reference Guide... -
Page 65: Legacy Console Redirection Settings
Select a COM port to display redirection of Legacy Serial Redirection Port COM0[Default], Legacy OS and Legacy OPROM Messages. 3.6.2.7 CPU Configuration Use the CPU configuration menu to view detailed CPU specification and configure the CPU. ARC-15W33 Quick Reference Guide 65... -
Page 66: Socket 0 Cpu Information
When enabled, a VMM can utilize the Disabled, Intel Virtualization Technology additional hardware capabilities provided by Enabled[Default] Vanderpool Technology. Disabled[Default], VT-d Enable/Disable CPU VT-d. Enabled 3.6.2.7.1 Socket 0 CPU Information 3.6.2.7.2 CPU Power Management Configuration 66 ARC-15W33 Quick Reference Guide... -
Page 67: Network Stack Configuration
This option controls the Max Core C State that Max Core C State Core C7 cores will support. Core C6 Core C1 Unlimited Disabled, C-State Auto Demotion Configure C-State Auto Demotion. C1[Default] Disabled, C-State Un-demotion Configure C-State Un-demotion. C1[Default] 3.6.2.8 Network Stack Configuration ARC-15W33 Quick Reference Guide 67... -
Page 68: Csm Configuration
ARC-15W33 Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 3.6.2.9 CSM Configuration Item Options Description Enabled CSM Support Enable/Disable CSM Support. Disabled[Default] 3.6.2.10 NVMe Configuration 68 ARC-15W33 Quick Reference Guide... -
Page 69: Usb Configuration
Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. ARC-15W33 Quick Reference Guide 69... -
Page 70: Security Configuration
ARC-15W33 3.6.2.12 Security Configuration Item Options Description Enabled TXE HMRFPO TXE HMRFPO. Disabled[Default] Enabled[Default] TXE EOP Message Send EOP Message Before Enter OS. Disabled 3.6.3 Chipset 70 ARC-15W33 Quick Reference Guide... -
Page 71: North Bridge
2.25 GB Max TOLUD Maximum Value of TOLUD. 2.5 GB 2.75 GB Enable/Disable above 4GB Enabled MemoryMappedIO BIOS assignment. This Above 4GB MMIO BIOS assignment Disabled[Default] is disabled automatically when Aperture Size is set to 2048MB. ARC-15W33 Quick Reference Guide 71... -
Page 72: South Bridge
ARC-15W33 3.6.3.2 South Bridge Item Option Description Quiet Serial IRQ Mode Configure Serial IRQ Mode. Continuous[Default] Windows[Default] OS Selection Android Select the target OS. Intel Linux 3.6.3.3 Uncore Configuration 72 ARC-15W33 Quick Reference Guide... - Page 73 Driver. OS Driver LVDS Back Light PWM Select LVDS back light PWM duty. 100%[Default] 200[Default] LVDS Back Light PWM Select LVDS back light PWM Frequency. Frequency Disabled[Default] USB Touch Enable or Disable USB Touch. Enabled ARC-15W33 Quick Reference Guide 73...
-
Page 74: South Cluster Configuration
ARC-15W33 3.6.3.4 South Cluster Configuration 3.6.3.4.1 HD-Audio Configuration Item Option Description Disable[Default], HD-Audio Support Enable/Disable HD-Audio Support. Enable 5.1ch ARC-APL VerbTable ARC-APL VerbTable. 2ch unmute speaker[Default] 74 ARC-15W33 Quick Reference Guide... -
Page 75: Pci Express Configuration
Quick Reference Guide 3.6.3.4.2 PCI Express Configuration Item Option Description Disable[Default], Compliance Mode Compliance Mode Enable/Disable. Enable 3.6.3.4.2.1 PCI Express Root Port 3 ARC-15W33 Quick Reference Guide 75... -
Page 76: Pci Express Root Port 4
Option Description Control the PCI Express Root Port. Enable: Disable PCI Express Root Port 4 Enable PCIe root port Disable: PCIe root Enable[Default] port. Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto 76 ARC-15W33 Quick Reference Guide... -
Page 77: Pci Express Root Port 5
Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen 1 Configure PCIe Speed. Gen 2 ARC-15W33 Quick Reference Guide 77... -
Page 78: Pci Express Root Port 6
Disable[Default] PCI Express Active State Power ASPM Management settings. L0sL1 Auto Disabled[Default] L1.1 L1 Substates PCI Express L1 Substates settings. L1.2 L1.1 & L1.2 Auto[Default] PCIe Speed Gen 1 Configure PCIe Speed. Gen 2 78 ARC-15W33 Quick Reference Guide... -
Page 79: Sata Drives
Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Driver or Hard Disk Drive. Disabled[Default] Enable/Disable SATA Port 0/1 DevSlp. Board SATA Port 0/1 DevSlp Enabled rework for LP needed before enable. ARC-15W33 Quick Reference Guide 79... -
Page 80: Usb Configuration
ARC-15W33 3.6.3.4.3 USB Configuration Item Option Description Enable, XHCI Pre-Boot Driver Enable/Disable XHCI Pre-Boot Driver support. Disable[Default] 3.6.4 Security 80 ARC-15W33 Quick Reference Guide... -
Page 81: Secure Boot Menu
Quick Reference Guide Administrator Password Set setup Administrator Password User Password Set User Password 3.6.4.1 Secure Boot menu ARC-15W33 Quick Reference Guide 81... -
Page 82: Boot
1~ 65535 activation key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the Keyboard NumLock state Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1 Set the system boot order. 82 ARC-15W33 Quick Reference Guide... -
Page 83: Save And Exit
Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. ARC-15W33 Quick Reference Guide 83... -
Page 84: Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. 84 ARC-15W33 Quick Reference Guide...
