- Page 1 Portable TV Tripod Instruction Manual SKU: STAND-TV55T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv55t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

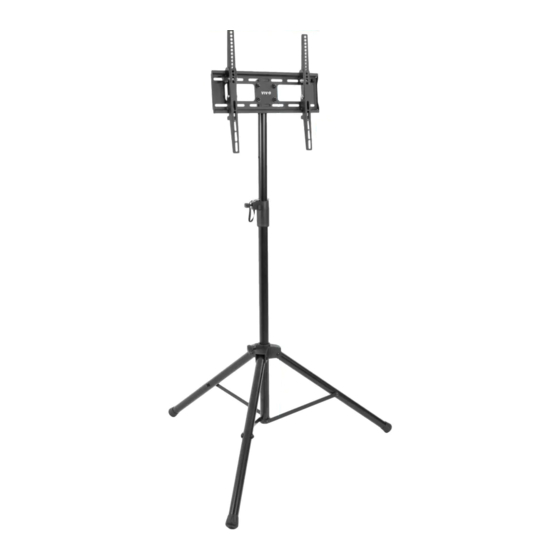

- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 77lbs Failure to do so may result in serious injury. (34.93kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Unfold tripod base (A) and tighten lower knob. STEP 2 Adjust the pole to the desired height, insert retainer pin, and tighten upper knob.
- Page 4 STEP 3 Install mounting bracket (E) using carriage bolts (F), washers (I), and nuts (G). The arrow on the bracket must be pointing up. STEP 4 Assemble TV plate to mounting bracket (B) using bolts (J), metal washers (I), plastic washers (H), and nuts (G).
- Page 5 STEP 5 OPTION A: Flat Back Monitor Mount VESA Bracket (C,D) to the back of the TV with appropriate screws and hardware. OPTION B: Curved Back Monitor If bolts are too long, spacers (M-G, M-H) may be required.
- Page 6 STEP 6 Hang the TV over TV mounting plate and secure with the pre-installed bolts underneath.
- Page 7 Adjust as Desired...
