NTI 4K HDMI SPLITTER/EXTENDER VIA CATX

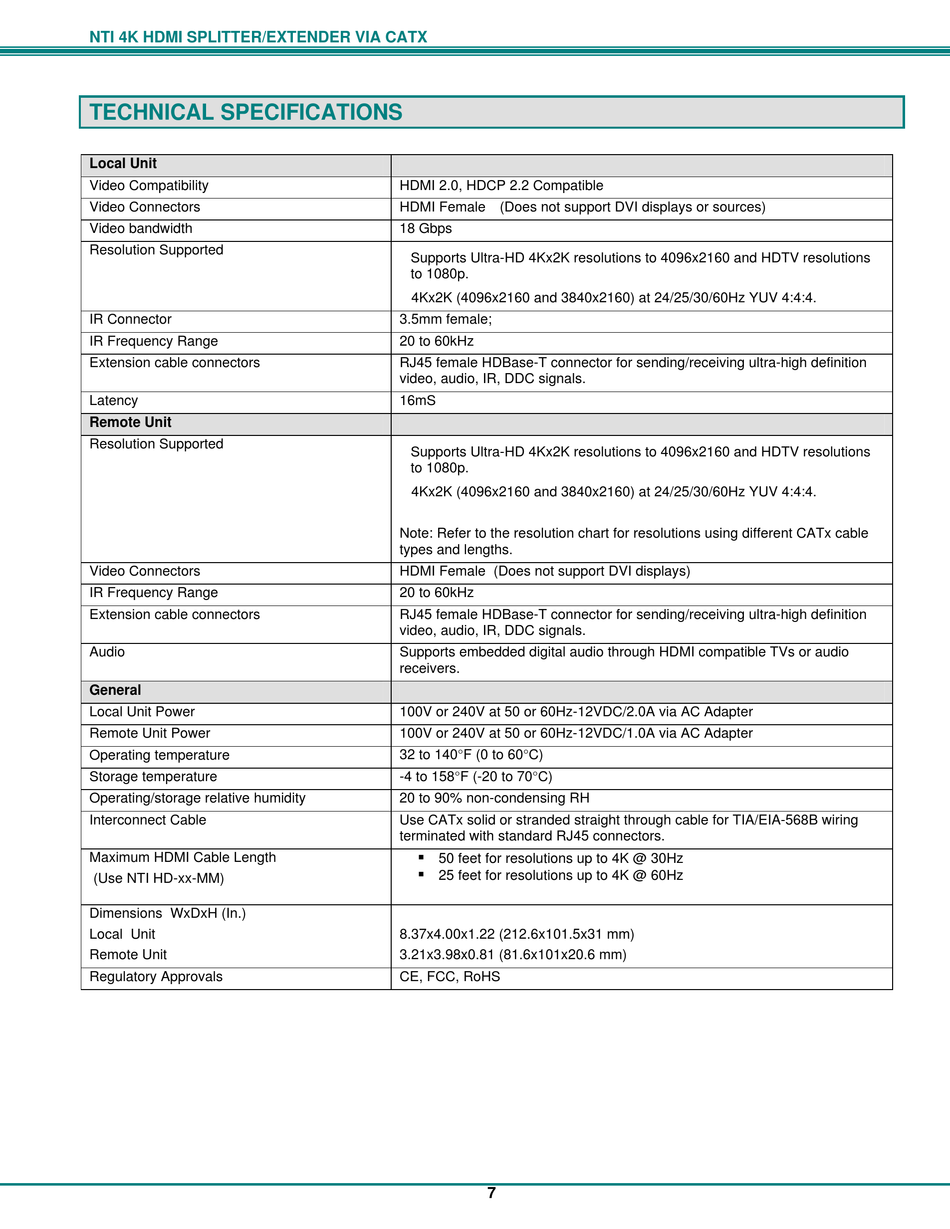

TECHNICAL SPECIFICATIONS

Local Unit
Video Compatibility
Video Connectors
Video bandwidth
Resolution Supported
IR Connector
IR Frequency Range
Extension cable connectors
Latency
Remote Unit
Resolution Supported
Video Connectors
IR Frequency Range
Extension cable connectors
Audio
General
Local Unit Power
Remote Unit Power
Operating temperature
Storage temperature
Operating/storage relative humidity
Interconnect Cable
Maximum HDMI Cable Length
(Use NTI HD-xx-MM)
Dimensions WxDxH (In.)
Local Unit
Remote Unit
Regulatory Approvals
HDMI 2.0, HDCP 2.2 Compatible
HDMI Female (Does not support DVI displays or sources)
18 Gbps
Supports Ultra-HD 4Kx2K resolutions to 4096x2160 and HDTV resolutions
to 1080p.
4Kx2K (4096x2160 and 3840x2160) at 24/25/30/60Hz YUV 4:4:4.
3.5mm female;
20 to 60kHz
RJ45 female HDBase-T connector for sending/receiving ultra-high definition
video, audio, IR, DDC signals.
16mS
Supports Ultra-HD 4Kx2K resolutions to 4096x2160 and HDTV resolutions
to 1080p.
4Kx2K (4096x2160 and 3840x2160) at 24/25/30/60Hz YUV 4:4:4.
Note: Refer to the resolution chart for resolutions using different CATx cable
types and lengths.
HDMI Female (Does not support DVI displays)
20 to 60kHz
RJ45 female HDBase-T connector for sending/receiving ultra-high definition
video, audio, IR, DDC signals.
Supports embedded digital audio through HDMI compatible TVs or audio
receivers.
100V or 240V at 50 or 60Hz-12VDC/2.0A via AC Adapter
100V or 240V at 50 or 60Hz-12VDC/1.0A via AC Adapter
32 to 140°F (0 to 60°C)
-4 to 158°F (-20 to 70°C)
20 to 90% non-condensing RH
Use CATx solid or stranded straight through cable for TIA/EIA-568B wiring
terminated with standard RJ45 connectors.

50 feet for resolutions up to 4K @ 30Hz

25 feet for resolutions up to 4K @ 60Hz
8.37x4.00x1.22 (212.6x101.5x31 mm)
3.21x3.98x0.81 (81.6x101x20.6 mm)
CE, FCC, RoHS
