NTI XTENDEX Series Installation And Operation Manual
4-port usb 3.0 extender via two lc fiber optic cables
Hide thumbs
Also See for XTENDEX Series:
- User manual (42 pages) ,
- Installation and operation manual (36 pages) ,
- Manual (7 pages)
Subscribe to Our Youtube Channel
Related Manuals for NTI XTENDEX Series
Summary of Contents for NTI XTENDEX Series

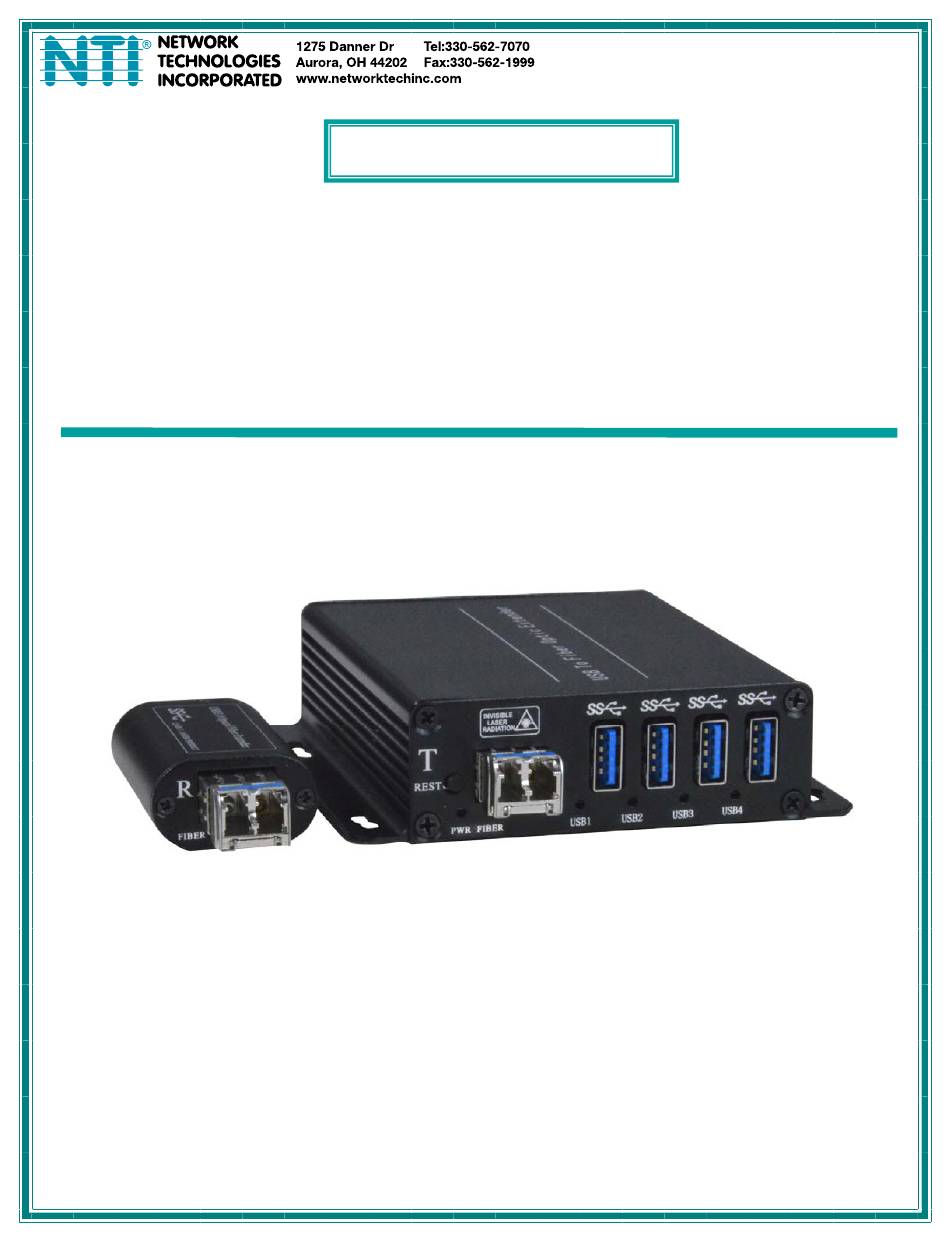

- Page 1 ® XTENDEX Series USB3-2FOLC-4 4-Port USB 3.0 Extender via Two LC Fiber Optic Cables Installation and Operation Manual Local Unit Remote Unit MAN350 Rev Date 10/1/2019...
- Page 2 TRADEMARK XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2019 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

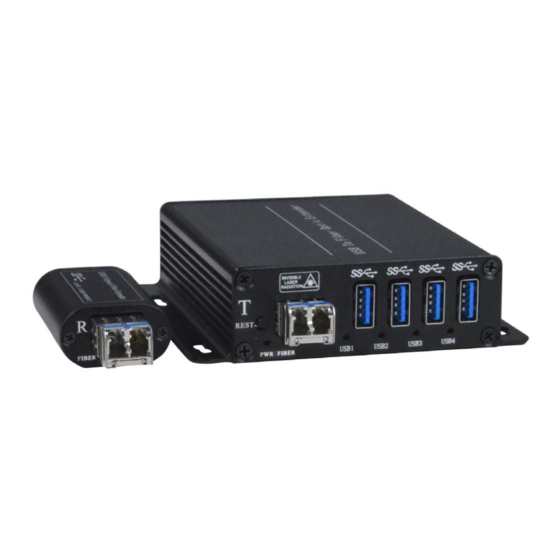

- Page 3 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE INTRODUCTION The XTENDEX® 4-Port USB 3.0 Extender via Fiber Optic Cable extends four USB devices up to 820 feet (250 meters) using a duplex LC 9-micron singlemode or 50-micron multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB 3.0/2.0/1.1 devices.
- Page 4 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE MATERIALS Materials supplied with this kit NTI USB3-2FOLC-4 Transmitter (Local Unit) and Receiver (Remote Unit) 100-240VAC, 50 or 60Hz-12VDC/3A AC Adapter URL Slip with web address of this manual...
- Page 5 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE INSTALLATION 1. Connect the Local Unit directly into the PC. For best performance, make sure the USB port on the PC supports USB 3.0. 2. Connect the devices to be extended to the Remote Unit.
- Page 6 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE 4. Connect up to 820 Feet (250m) duplex LC 9-micron singlemode or 50-micron multimode fiber optic cable between the Local and Remote units. Make certain all connections are fully inserted. Note: If using individual LC fiber optic cables, be sure to connect each end to the proper port on the Local and Remote units.
- Page 7 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE TROUBLESHOOTING If the host PC does not recognize the Local Unit, the following procedures can be tried: Note: Make sure all cables are connected securely at both ends. 1. Press and hold the "REST" button on the Remote Unit for 5 seconds. Then release.
- Page 8 NTI 4 PORT USB EXTENDER VIA FIBER OPTIC CABLE WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com...
