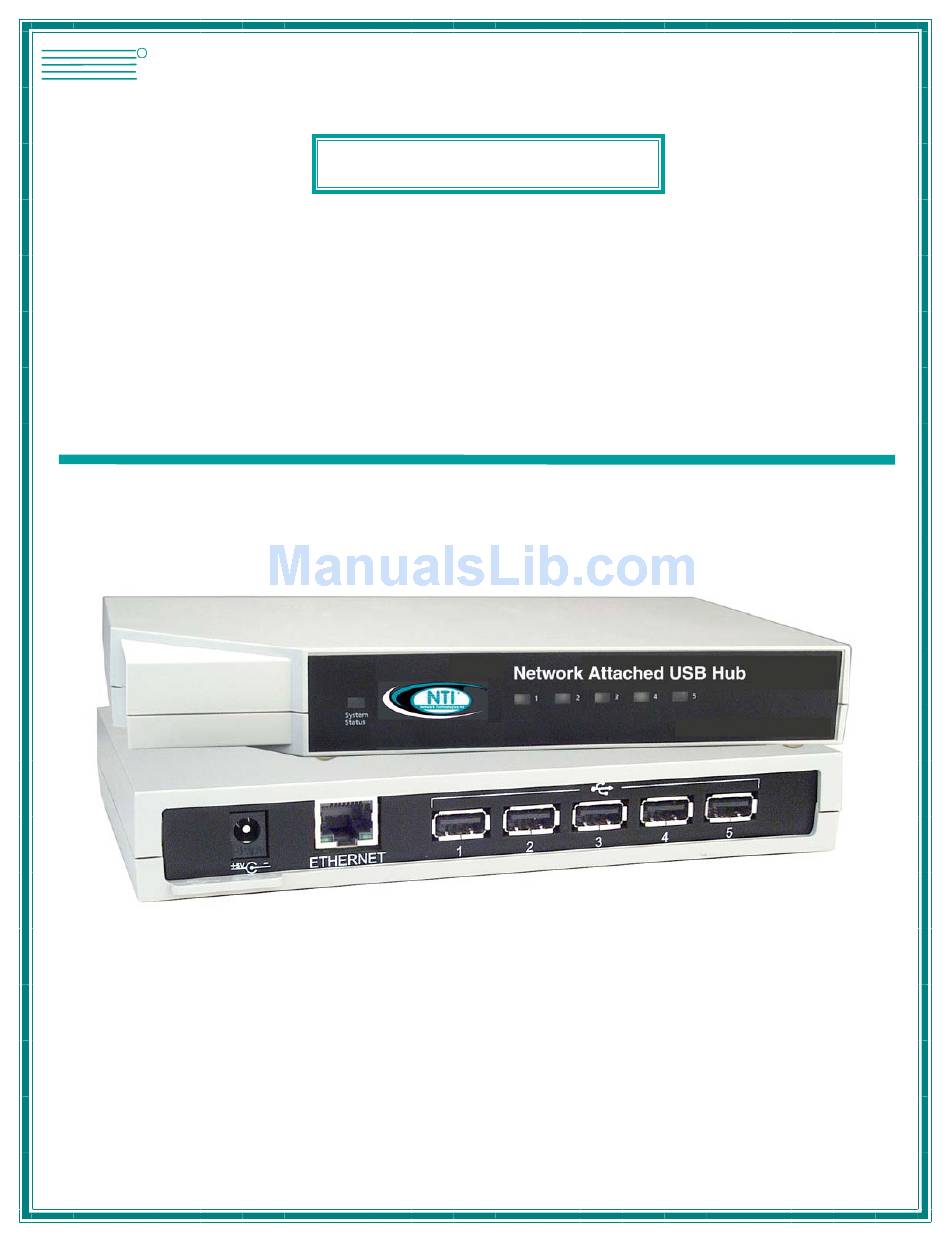

- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.nti1.com XTENDEX Series USB IP Extender Network Attached USB Hub Installation and Operation Manual MAN020 Rev Date July 14, 2004...
-
Page 2: Warranty Information
A return authorization number is required for all repairs/returns. COPYRIGHT Copyright © 2004 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Installation ..................................2 Cable Connections ..............................2 Driver Installation ................................. 3 Configuring the XTENDEX ............................3 Configure the CPU............................... 5 Uninstalling the Drivers..............................5 Interpreting the Status Lights ............................6 System Status LED..............................6 Hub LEDs .................................. -
Page 4: Introduction

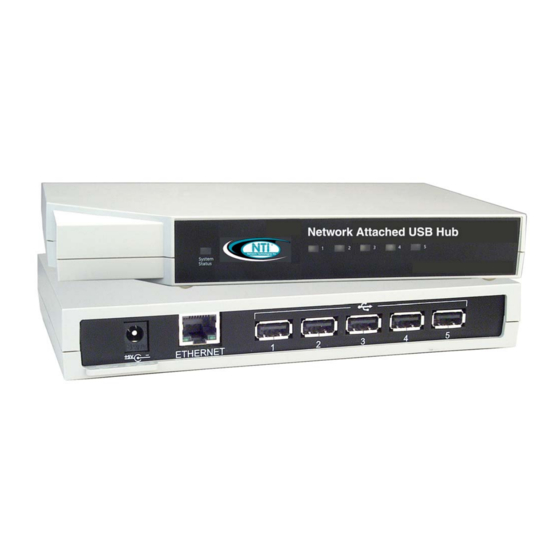

NTI XTENDEX USB IP Extender INTRODUCTION The XTENDEX™ USB IP Extender Network Attached USB Hub (XTENDEX) allows five USB peripheral devices to be connected anywhere on a wired or wireless LAN, while eliminating the need for locally-attached CPUs. Software drivers are loaded onto a CPU or server, enabling remote devices to communicate with the CPU, without changing existing application software. -
Page 5: Installation
NTI XTENDEX USB IP Extender INSTALLATION Cable Connections To connect the XTENDEX to a network: Connect an CAT5 ethernet network cable to the XTENDEX at the connector marked "ETHERNET". Then connect the other end of the ethernet cable to a Local Area Network (LAN) through a 10/100 BaseT switch or hub. Connect one end of the power supply* into the back of the XTENDEX and the other end into an AC outlet. -
Page 6: Driver Installation
NTI XTENDEX USB IP Extender Driver Installation (For Wndows XP, 2000, and NT4.0 Users) The drivers must be installed using an account with administrative privileges. Insert the USB IP Extender CD into the CD Drive of a CPU connected to the LAN. If the CD does not automatically start, from the Start menu click Run and browse the drive that contains the CD. -
Page 7: Figure 4- Use The Configure Screen To Configure The Xtendex
NTI XTENDEX USB IP Extender To discover XTENDEXs on other networks, see “Using the Configuration Utility Program” on page 7. Double click on the XTENDEX or select the XTENDEX and press the Configure button to set the IP address, Subnet Mask, and Gateway. Enter a Device Name that easily identifies the XTENDEX. -
Page 8: Configure The Cpu
NTI XTENDEX USB IP Extender Configure the CPU To configure a CPU to access the XTENDEX: Launch the XTENDEX Configuration Utility from the Start menu. The utility displays a list of all XTENDEX Concentrators on your local subnet and on any subnet configured in the Discovery List. After the XTENDEX Configuration Utility has been launched it will reside in the system tray (the icons in the lower right corner of the monitor near the time-of-day display). -
Page 9: Interpreting The Status Lights
NTI XTENDEX USB IP Extender INTERPRETING THE STATUS LIGHTS The XTENDEX has 6 LEDs on the front panel, the System Status LED and 5 hub LEDs. Each LED is capable of displaying 3 colors- red, green, or orange. System Status LED On initial power up the System Status LED is orange for 2 seconds while the system initializes. -
Page 10: Status Indicators
NTI XTENDEX USB IP Extender Status Indicators The USB icon to the left of each XTENDEX listed in the configuration screen is colored to indicate status. Icon Color Legend: (Green) Available for Connection (Gray, Bold Text) Connected to this computer (Gray) In use by other CPU (Red) Firmware is being updated Extender IP Address has not yet been configured... -
Page 11: Understanding Hubs
NTI XTENDEX USB IP Extender UNDERSTANDING HUBS Hubs, critical components in the plug-and-play architecture, are wiring concentrators that enable the attachment of multiple devices, thus converting a single attachment point into multiple attachment points. USB architecture allows a cascaded multiple hub configuration with certain power limitations (explained later in this section). -
Page 12: Regulatory And Other Information
REGULATORY AND OTHER INFORMATION Copyright Copyright © 2004 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. - Page 13 NTI XTENDEX USB IP Extender European Community - CE Mark Declaration of Conformity (DOC) According to ISO/IEC Guide 22 and EN45014 Manufacturer’s Name: Inside Out Networks Manufacturer’s Addr.: 7004 Bee Caves Rd., Bldg. 3 Ste. 200, Austin TX 78746 USA declares that the product Product Name: AnywhereUSB Model Number(s): 301-1130-01...
-
Page 14: Technical Specifications
NTI XTENDEX USB IP Extender TECHNICAL SPECIFICATIONS Power Supply 120VAC or 240VAC at 50 or 60Hz-5VDC/3.0A AC Adapter Ambient Temperature 32° to 140° F (0° to 60° C) Relative Humidity 0% to 95% (non-condensing) Size (In.) WxDxH 7.2x4.35x1.03 (18.29 cm x 11.05 cm x 2.61 cm) Weight 10 oz (283.49 g) Operating Systems...
