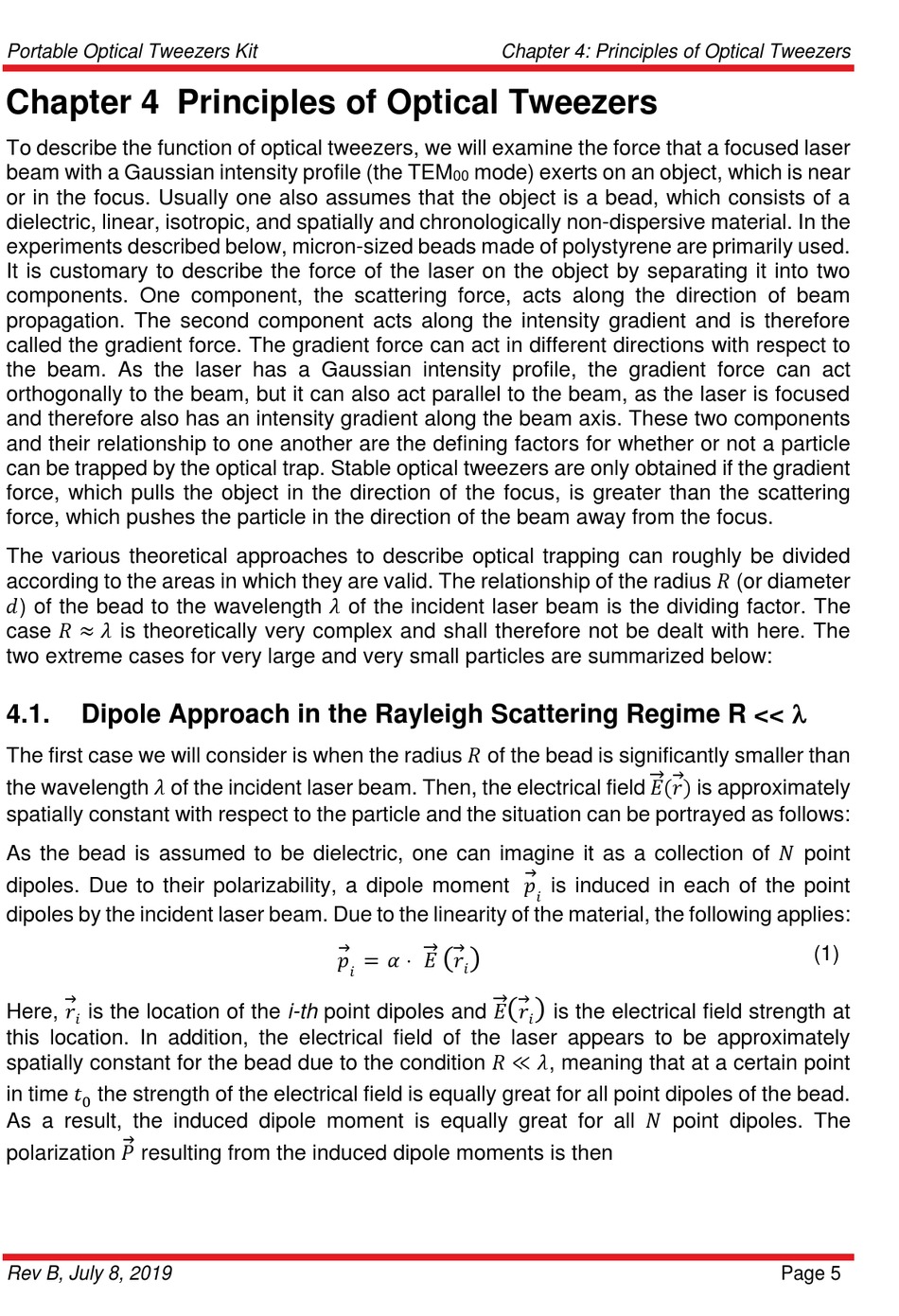

Chapter 4: Principles of Optical Tweezers
Chapter 4 Principles of Optical Tweezers
To describe the function of optical tweezers, we will examine the force that a focused laser
beam with a Gaussian intensity profile (the TEM
mode) exerts on an object, which is near
00
or in the focus. Usually one also assumes that the object is a bead, which consists of a
dielectric, linear, isotropic, and spatially and chronologically non-dispersive material. In the
experiments described below, micron-sized beads made of polystyrene are primarily used.
It is customary to describe the force of the laser on the object by separating it into two
components. One component, the scattering force, acts along the direction of beam
propagation. The second component acts along the intensity gradient and is therefore
called the gradient force. The gradient force can act in different directions with respect to
the beam. As the laser has a Gaussian intensity profile, the gradient force can act
orthogonally to the beam, but it can also act parallel to the beam, as the laser is focused
and therefore also has an intensity gradient along the beam axis. These two components
and their relationship to one another are the defining factors for whether or not a particle
can be trapped by the optical trap. Stable optical tweezers are only obtained if the gradient
force, which pulls the object in the direction of the focus, is greater than the scattering
force, which pushes the particle in the direction of the beam away from the focus.
The various theoretical approaches to describe optical trapping can roughly be divided
according to the areas in which they are valid. The relationship of the radius (or diameter
) of the bead to the wavelength of the incident laser beam is the dividing factor. The
case ≈ is theoretically very complex and shall therefore not be dealt with here. The
two extreme cases for very large and very small particles are summarized below:
Dipole Approach in the Rayleigh Scattering Regime R <<
4.1.
The first case we will consider is when the radius of the bead is significantly smaller than
⃗
the wavelength of the incident laser beam. Then, the electrical field
( ) is approximately
spatially constant with respect to the particle and the situation can be portrayed as follows:
As the bead is assumed to be dielectric, one can imagine it as a collection of point
dipoles. Due to their polarizability, a dipole moment
is induced in each of the point
dipoles by the incident laser beam. Due to the linearity of the material, the following applies:
⃗ (
)
(1)
= ⋅
⃗ (
)
Here,
is the location of the i-th point dipoles and
is the electrical field strength at
this location. In addition, the electrical field of the laser appears to be approximately
spatially constant for the bead due to the condition ≪ , meaning that at a certain point
in time
the strength of the electrical field is equally great for all point dipoles of the bead.
0
As a result, the induced dipole moment is equally great for all point dipoles. The
polarization resulting from the induced dipole moments is then
