Operating Instructions:
Software version 2.11 or newer is required for the sensor to operate properly. Visit
www.mark7comunity.com and under the forums tab select Revolution or Evolution Autodrive
depending on your unit. Then scroll down to find the Software update 2.11 post.
Before entering the Loader application make sure the press manually cycles smoothly with the sensor
installed and the sensor is plugged into Port #2. Enter the Loader Application and Perform Calibration.
Once the calibration is complete, select the sensor tab and enable the sensor as shown below.

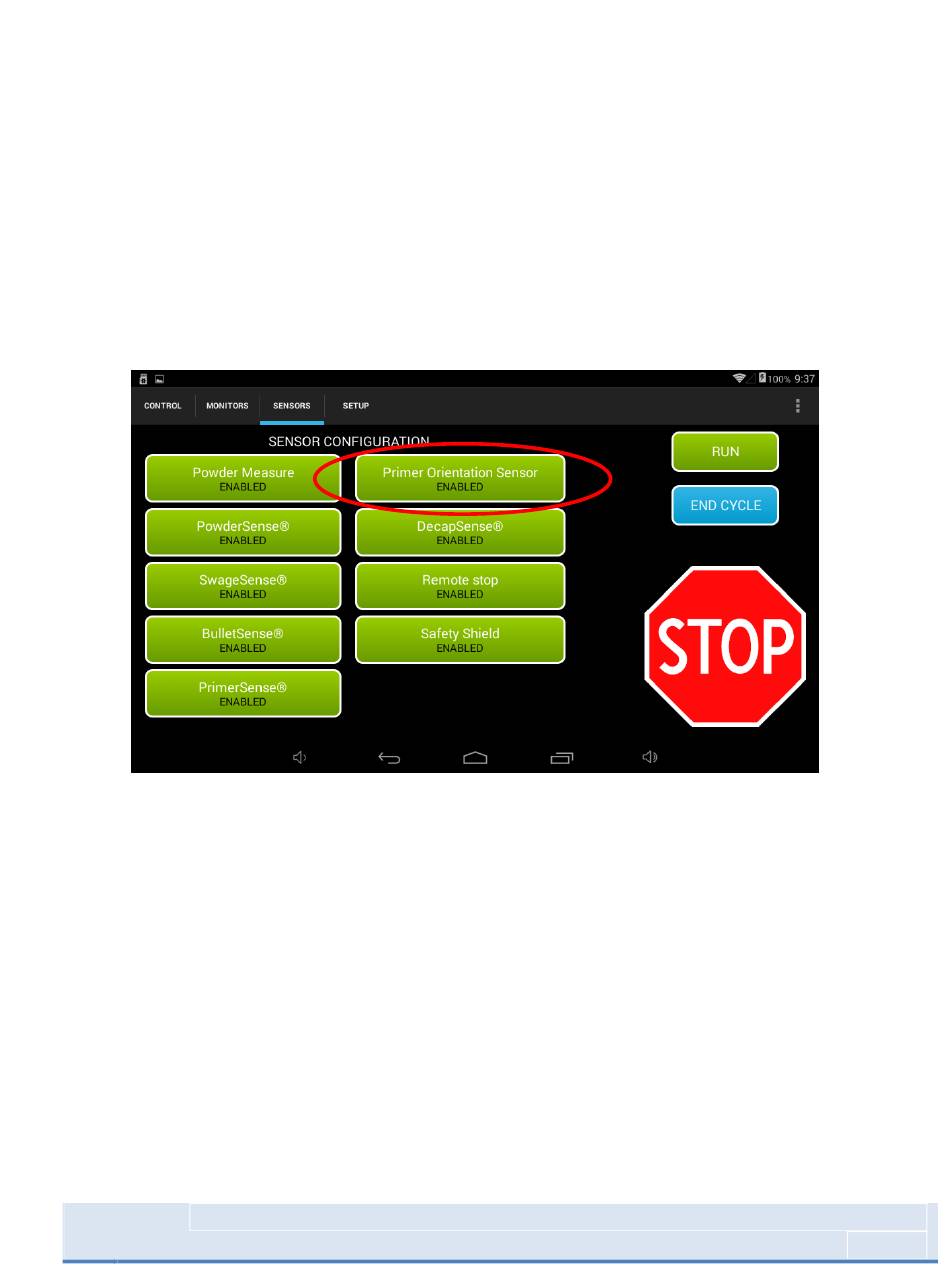

Figure 36 : Enabling Sensor
The sensor checks the primer depth when initiating a single cycle or pressing Run. If a case is not
present in station #5 or a case has an upside down, no primer or a primer set at a depth +/- .025" off of
the desired primer depth a notification can appear. You must clear the notification before continuing or
disable the sensor.
The Primer Orientation sensor if set properly will also detect a Shellplate index fault. If the sensor is
enabled and a case is located in station 5 with a primer installed properly the sensor will allow the
machine to perform a cycle. During the cycle if the sensor doesn't detect the advancement of the
Shellplate on the upstroke a notification can appear. If the notification appears on the screen clear the
Shellplate and check the mechanical indexing components before continuing operating the press.
