END CYCLE - The END CYCLE function will complete the current cycle and return to the home position.

After using the Jog UP/DOWN features select END CYCLE to bring the Tool Head to the home position.

JOG UP - The JOG UP function will incrementally move the press upwards. The JOG functions are useful

in clearing jams that may occur. The JOG UP function will only work when the Mark 7® Autodrive is at a

stop.

JOG DOWN - The JOG DOWN function will incrementally move the press downwards. The JOG DOWN

function will only work when the Mark 7® Autodrive is at a stop.

STOP - The STOP function will stop the press from moving in any event. Pressing STOP twice will switch

the motor into neutral which is helpful if the press needs to be manually actuated.

Digital Clutch Setting

The Digital Clutch adjusts the torque of the motor from the minimum torque required to drive the press

to the maximum torque of the motor. This range is from 0-20. It is important to note that increasing the

Digital Clutch only increases the motor torque when the tool head is in the down stroke approaching the

shell plate (for sizing/decapping/swaging/bullet seating/crimping operations) when Torquesense® is

enabled.

1. All Mark7® Autodrives are shipped with the Digital Clutch at 0 This is the minimum torque

required to run the press dry (without components).

2. When you are ready to process brass or reload once fired brass use the following table as a

guide for starting torque levels. Always use lubed brass in order to run the Digital Clutch as low

as possible. Depending on the condition of the brass you may be able to run the machine on

lower settings than listed below. We recommend running the machine on the lowest Digital

Clutch setting possible for the given caliber.

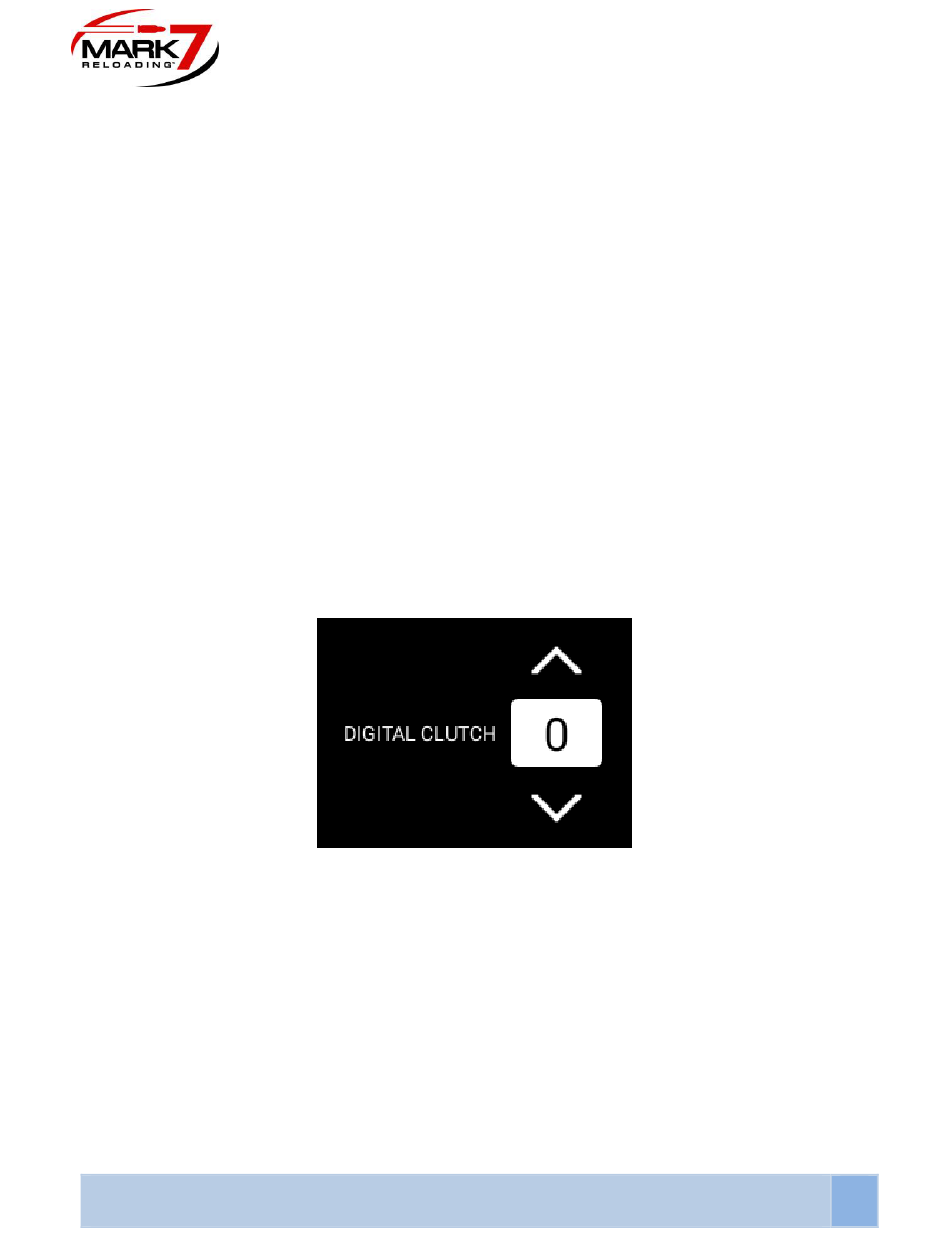

Figure 15: Digital Clutch Adjustment on control screen
