9. Console Side inputs
Port #4.
Port #3.
Port #2. Primer Orientation Sensor (optional)
Port #1.
AC INPUT & Power ON/OFF Receptacle:
6-Pin: Motor to Console DC Power Cord
Tablet Power Cord: Connect to tablet
WARNING
Never power on the console switch without the 6-pin molex connector plugged in and never install this
connector with the power already on since the DC voltage would damage the motor's input contacts.
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 1.1, COPYRIGHT 2018
#4
AC INPUT RECT.
POWER ON/OFF

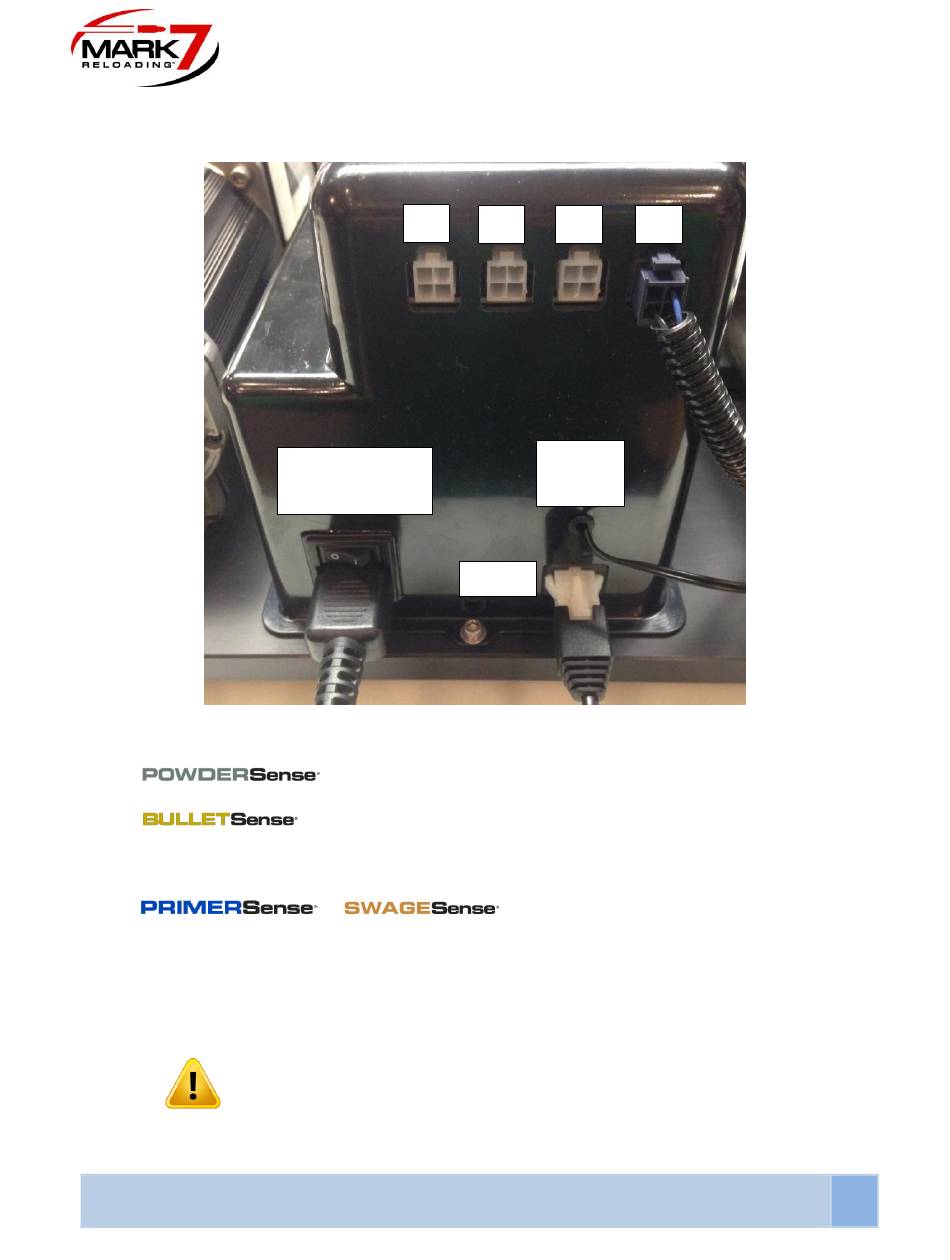

Figure 9: Side of Console Inputs
(optional)
(optional)
&
Units are configured in either 110V or 220V.
#3 #2 #1
TABLET
POWER
CORD
6-PIN
ALL RIGHTS RESERVED
