11. Manually Operating the Evolution
TM
The Evolution can still be operated manually with an 11/16" wrench or with a 2
attached the handle on the left side (optional). Having the ability to manually actuate the press is
helpful in setup/machine adjustments and jam clearing situations.
Check the following with a clear shell plate before powering on the machine:
•
Toolhead moves the full stroke with no change in resistance
•
Belt tension is consistent throughout the full stroke
•
Belt tracking is consistent thought the full stroke.
•
No cables are near the moving parts of the press, secure any loose cables away from the moving
components
Hex / shaft adapter
attachment pint
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 1.1, COPYRIGHT 2018
TM

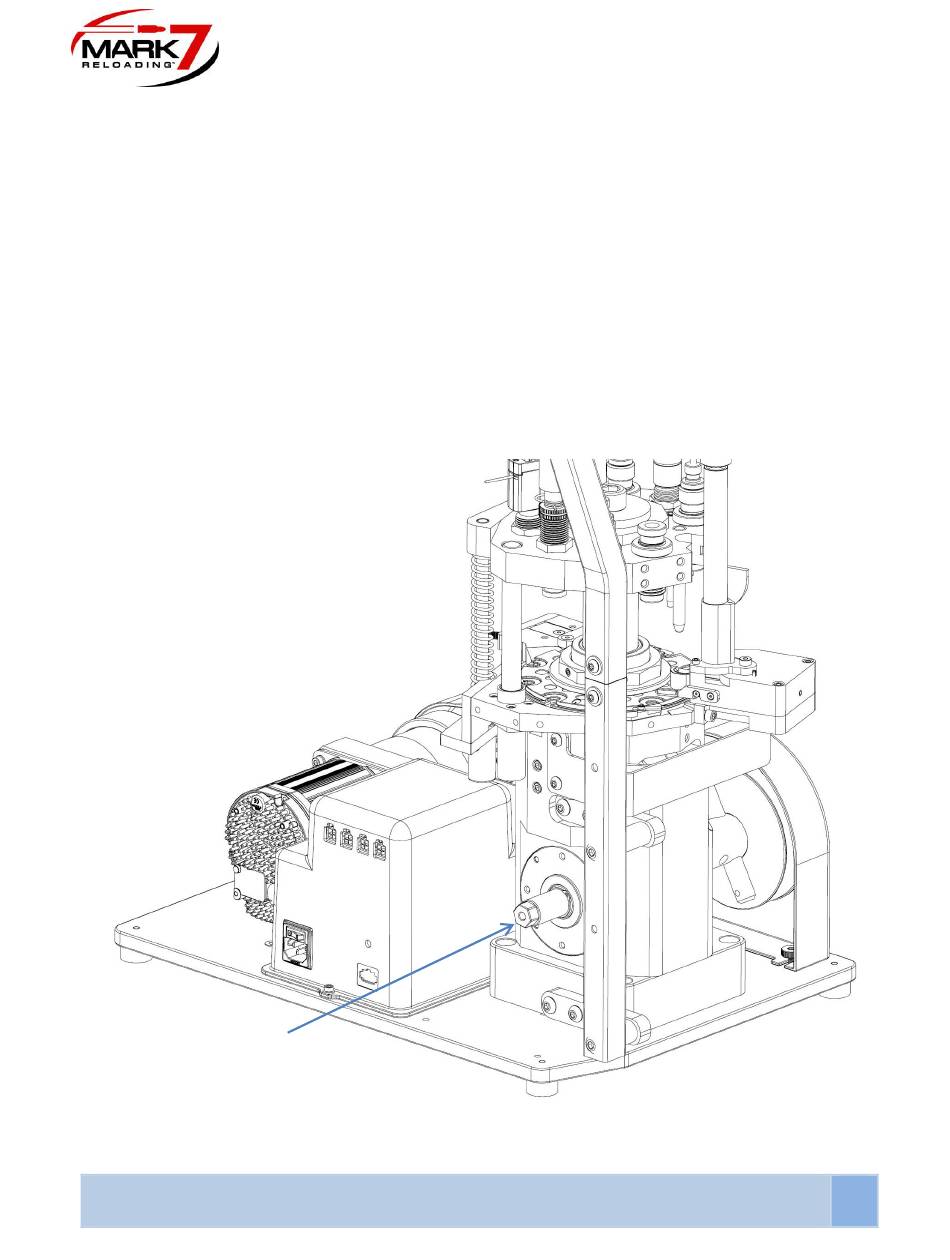

Figure 11: Manually driving the Evolution
nd
handle adapter
