Step 2: Installing Probe Retractor and Springs

Place the two springs into the spring wells in the primer housing as shown. Apply a small amount of red

and tacky grease on the springs. Once the springs are installed, insert the probe retractor into the large

spring.

Probe Spring

Indicator Spring

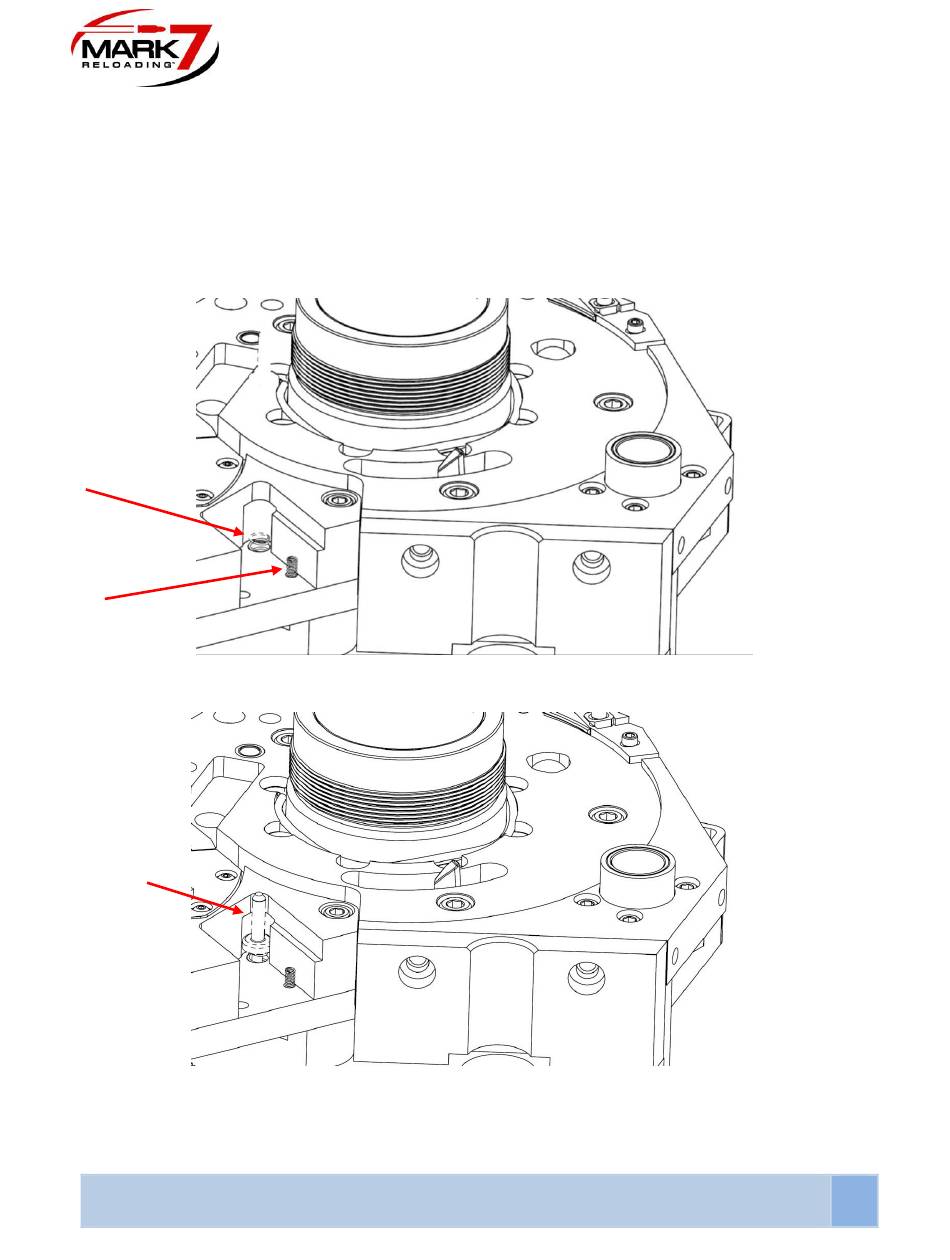

Figure 31 : Pace Probe Retractor and Indicator Springs in Spring Pockets as shown.

Probe

SEE NOTE

Figure 32: Probe Retractor Installed with Springs

NOTE: The probe must be installed at a slight angle in order to clear the undercut in the priming

housing.
