Kramer PT-571HDCP Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
PT-571HDCP, PT-572HDCP+
1 Power supply (12V DC) per unit
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.
Step 2: Get to know your PT-571HDCP, PT-572HDCP+

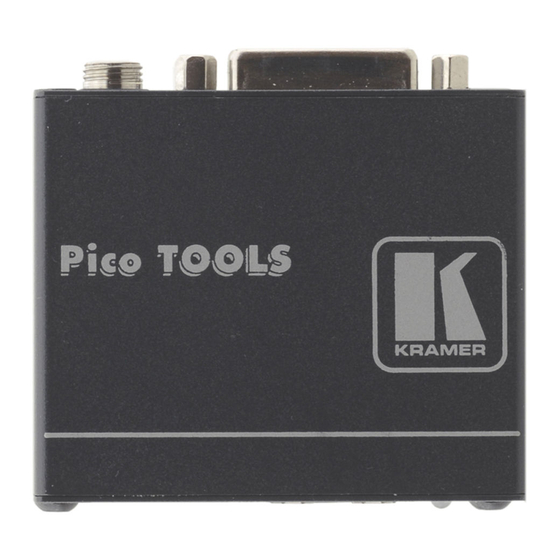

PT-571HDCP DVI Line Transmitter
# Feature
1 DVI IN Connector
2 12V DC Connector
3 OUT RJ-45 Connector
4 ON LED
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
PT-572HDCP+ DVI Line Receiver
# Feature
1 IN RJ-45 Connector
ON LED
2
3 DVI OUT Connector
4 12V DC Connector
PT-571HDCP, PT-572HDCP+
PT-571HDCP, PT-572HDCP+ Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/PT-571HDCP
firmware upgrades are available.
DVI Line Tx/Rx
Function
Connect to the DVI source
+12V DC connector for powering the unit
Connect to the IN RJ-45 connector on the
Lights only when the machine is powered (whether directly from the power adapter or via the
PT-572HDCP+) and an input is connected.
If no input is connected the unit invokes the power save mode automatically turning off the
power.
Function
Connect to the OUT RJ-45 connector on the
Lights red when receiving power only, orange when output and power are attached, and yellow
when both an active input and output are attached.
Connect to the DVI acceptor
+12V DC connector for powering the unit
Quick Start
PT-571HDCP, PT-572HDCP+
to download the latest user manual and check if
2 Mounting brackets per unit
4 Rubber feet per unit
rd
party shielded CAT-6A cables, both ends of the
PT-572HDCP+
PT-571HDCP
P/N: 2 9 0 0 - 3 0 1 2 2 1 QS
for the first time.
1 Quick Start Guide
Rev: 3
