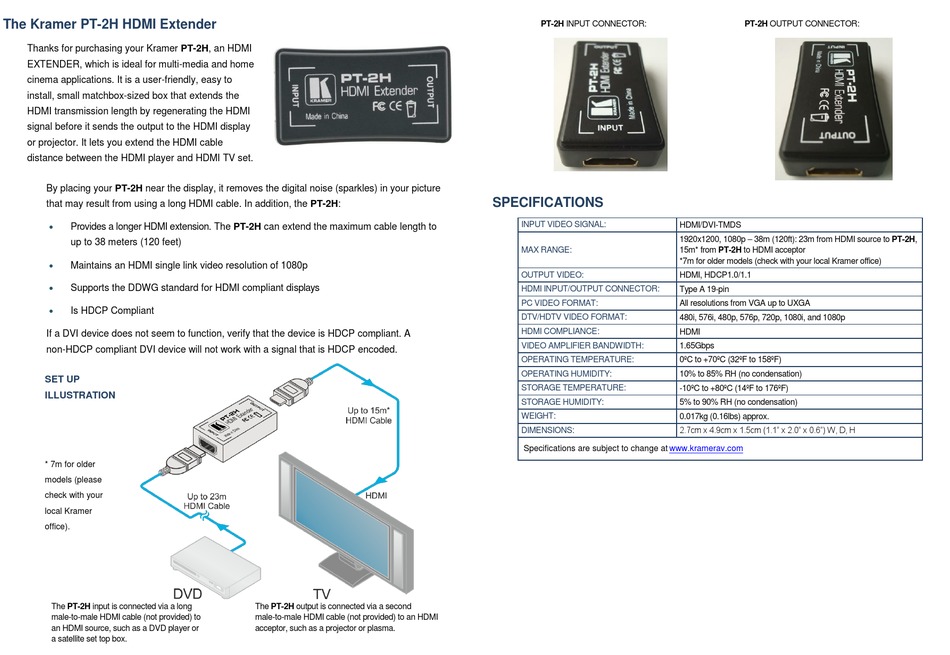

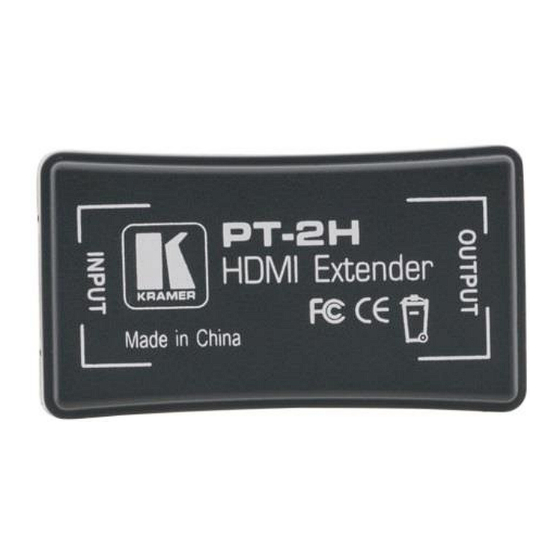

The Kramer PT-2H HDMI Extender
Thanks for purchasing your Kramer PT-2H, an HDMI
EXTENDER, which is ideal for multi-media and home
cinema applications. It is a user-friendly, easy to
install, small matchbox-sized box that extends the
HDMI transmission length by regenerating the HDMI
signal before it sends the output to the HDMI display
or projector. It lets you extend the HDMI cable
distance between the HDMI player and HDMI TV set.
By placing your PT-2H near the display, it removes the digital noise (sparkles) in your picture
that may result from using a long HDMI cable. In addition, the PT-2H:
Provides a longer HDMI extension. The PT-2H can extend the maximum cable length to
up to 38 meters (120 feet)
Maintains an HDMI single link video resolution of 1080p
Supports the DDWG standard for HDMI compliant displays
Is HDCP Compliant
If a DVI device does not seem to function, verify that the device is HDCP compliant. A
non-HDCP compliant DVI device will not work with a signal that is HDCP encoded.

SET UP

ILLUSTRATION

* 7m for older
models (please
check with your
local Kramer
office).
The PT-2H input is connected via a long
male-to-male HDMI cable (not provided) to
an HDMI source, such as a DVD player or
a satellite set top box.
The PT-2H output is connected via a second
male-to-male HDMI cable (not provided) to an HDMI
acceptor, such as a projector or plasma.
PT-2H INPUT CONNECTOR:

SPECIFICATIONS

INPUT VIDEO SIGNAL:
MAX RANGE:
OUTPUT VIDEO:
HDMI INPUT/OUTPUT CONNECTOR:
PC VIDEO FORMAT:
DTV/HDTV VIDEO FORMAT:
HDMI COMPLIANCE:
VIDEO AMPLIFIER BANDWIDTH:
OPERATING TEMPERATURE:
OPERATING HUMIDITY:
STORAGE TEMPERATURE:
STORAGE HUMIDITY:
WEIGHT:
DIMENSIONS:
Specifications are subject to change at
www.kramerav.com
PT-2H OUTPUT CONNECTOR:
HDMI/DVI-TMDS
1920x1200, 1080p – 38m (120ft): 23m from HDMI source to PT-2H,
15m* from PT-2H to HDMI acceptor
*7m for older models (check with your local Kramer office)
HDMI, HDCP1.0/1.1
Type A 19-pin
All resolutions from VGA up to UXGA
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
HDMI
1.65Gbps
0ºC to +70ºC (32ºF to 158ºF)
10% to 85% RH (no condensation)
-10ºC to +80ºC (14ºF to 176ºF)
5% to 90% RH (no condensation)
0.017kg (0.16lbs) approx.
2.7cm x 4.9cm x 1.5cm (1.1" x 2.0" x 0.6") W, D, H
