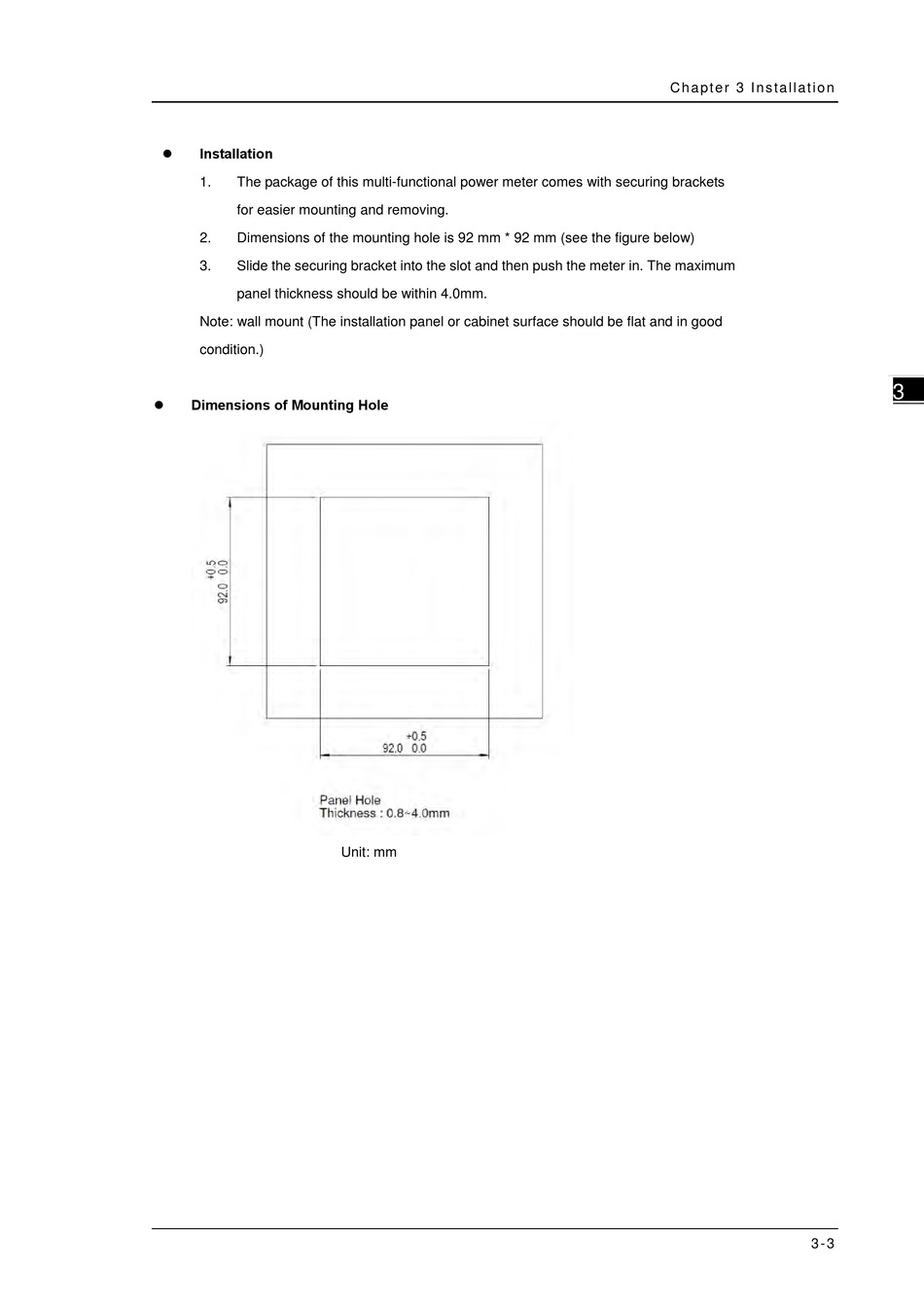

Delta DPM-C501L Operation Manual page 21

Installation

1. The package of this multi-functional power meter comes with securing brackets
for easier mounting and removing.
2. Dimensions of the mounting hole is 92 mm * 92 mm (see the figure below)
3. Slide the securing bracket into the slot and then push the meter in. The maximum
panel thickness should be within 4.0mm.
Note: wall mount (The installation panel or cabinet surface should be flat and in good
condition.)
Dimensions of Mounting Hole

Unit: mm
C h a p t e r 3 I n s t a l l a t i o n
3 - 3
