Delta DPM-C501L Operation Manual page 17

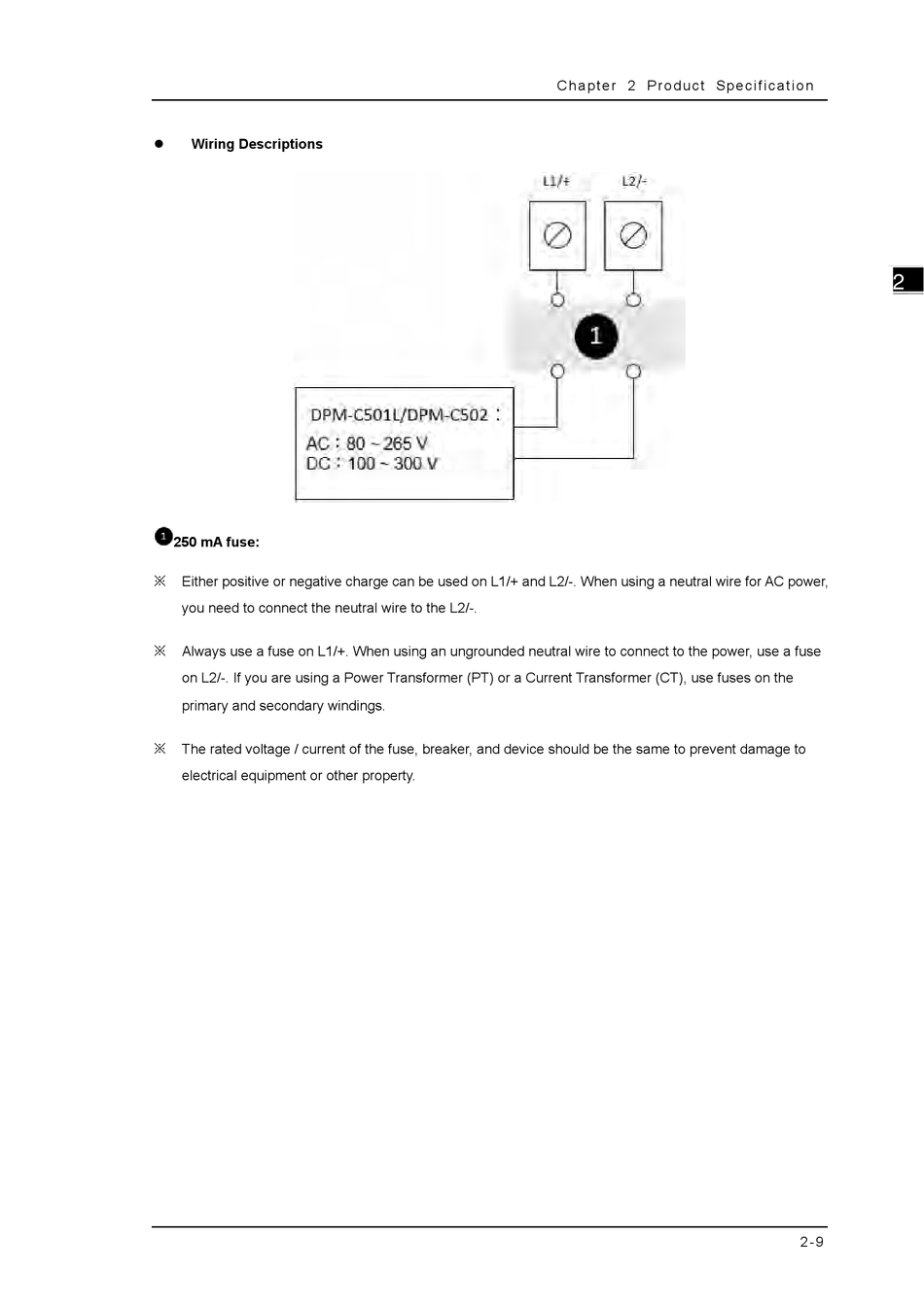

Wiring Descriptions

250 mA fuse:
Either positive or negative charge can be used on L1/+ and L2/-. When using a neutral wire for AC power,
※
you need to connect the neutral wire to the L2/-.
※ Always use a fuse on L1/+. When using an ungrounded neutral wire to connect to the power, use a fuse
on L2/-. If you are using a Power Transformer (PT) or a Current Transformer (CT), use fuses on the
primary and secondary windings.
The rated voltage / current of the fuse, breaker, and device should be the same to prevent damage to
※
electrical equipment or other property.
C h a p t e r 2 P r o d u c t Sp e c i f i c a t i o n
2_
2 - 9
