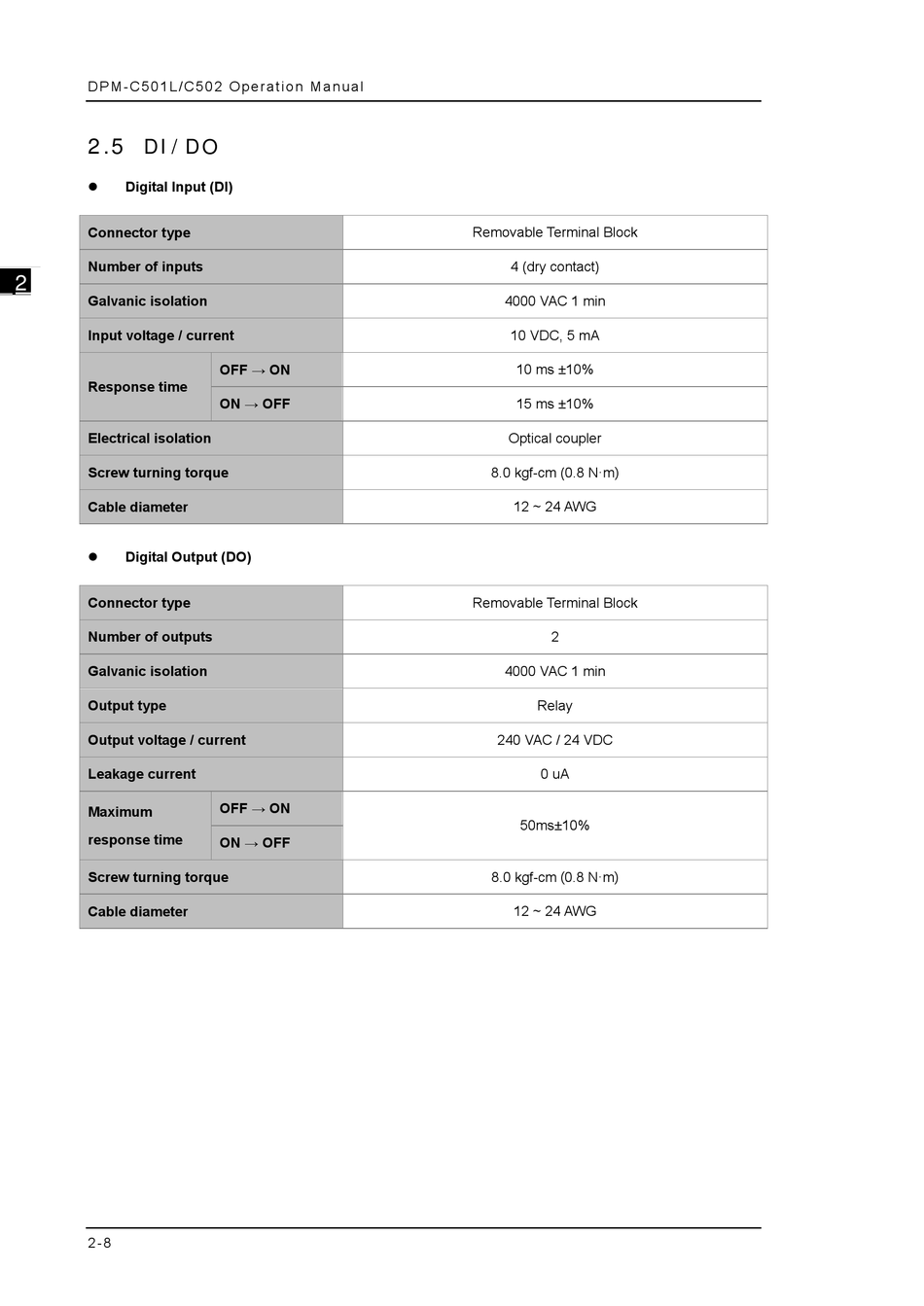

D P M - C 5 0 1 L / C 5 0 2 O p e r a t i o n M a n u a l
2.5

DI/DO

Digital Input (DI)
Connector type
Number of inputs
_2
Galvanic isolation
Input voltage / current
Response time
Electrical isolation
Screw turning torque
Cable diameter
Digital Output (DO)
Connector type
Number of outputs
Galvanic isolation
Output type
Output voltage / current
Leakage current
Maximum
response time
Screw turning torque
Cable diameter
2 - 8
OFF → ON
ON → OFF
OFF → ON
ON → OFF
Removable Terminal Block
4 (dry contact)
4000 VAC 1 min
10 VDC, 5 mA
10 ms ±10%
15 ms ±10%
Optical coupler
8.0 kgf-cm (0.8 Nꞏm)
12 ~ 24 AWG
Removable Terminal Block
2
4000 VAC 1 min
Relay
240 VAC / 24 VDC
0 uA
50ms±10%
8.0 kgf-cm (0.8 Nꞏm)
12 ~ 24 AWG
