INSTALLATION INSTRUCTIONS

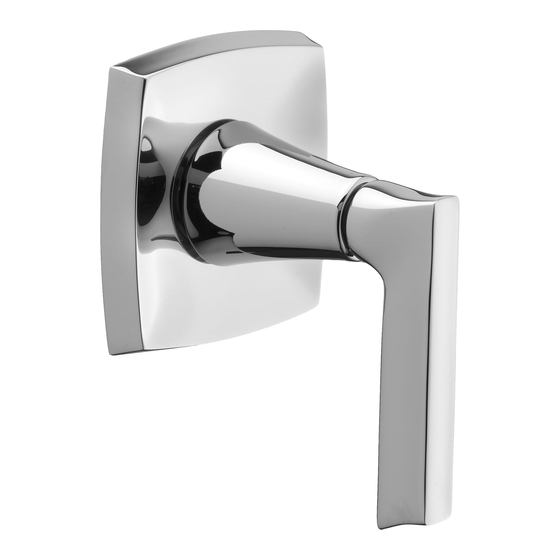

Handle Trim Kit for
Keefe
®
2 Way or 3 Way In-Wall Diverter
Model D35104430
To be used with
D35000420.191 - 3/2 Two Way In-Wall Diverter
D35000430.191 - 4/3 Three Way In-Wall Diverter
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Flat Blade Screwdriver
ROUGHING-IN DIMENSIONS:
• For reference
2-15/16"
(75 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Phillips Screwdriver
3/8"
(9.8 mm)
2-3/4"
(69.8 mm)
FINISHED
WALL
2-3/8"
(59.3 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Plumbers' Putty or Caulking
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965518 Rev. 1.4 (4/18)
Advertisement
Related Manuals for DXV Keefe D35104430
Summary of Contents for DXV Keefe D35104430
- Page 1 To be used with D35000420.191 - 3/2 Two Way In-Wall Diverter D35000430.191 - 4/3 Three Way In-Wall Diverter Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL VALVE TRIM TWO-WAY OR THREE-WAYE DIVERTER VALVE Turn off hot and cold water CAUTION supplies before beginning. • Twist and pull off PLASTER GUARD (1). (TWO AND THREE WAY VALVES) Install ESCUTCHEON (4) onto ESCUTCHEON HOLDER (2). Fig. A. •...
- Page 3 Keefe ® Handle Trim Kit for 2 Way or 3 Way In-Wall Diverter MODEL NUMBER D35104430 Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964562-YYY0A ESCUTCHEON KIT H960835.XXX DIVERTER TRIM SLEEVE M964564-YYY0A LEVER HANDLE H2749.XXX EXTENSION KIT M965518 Rev.
