SolidRF Signal Plus Manual page 2

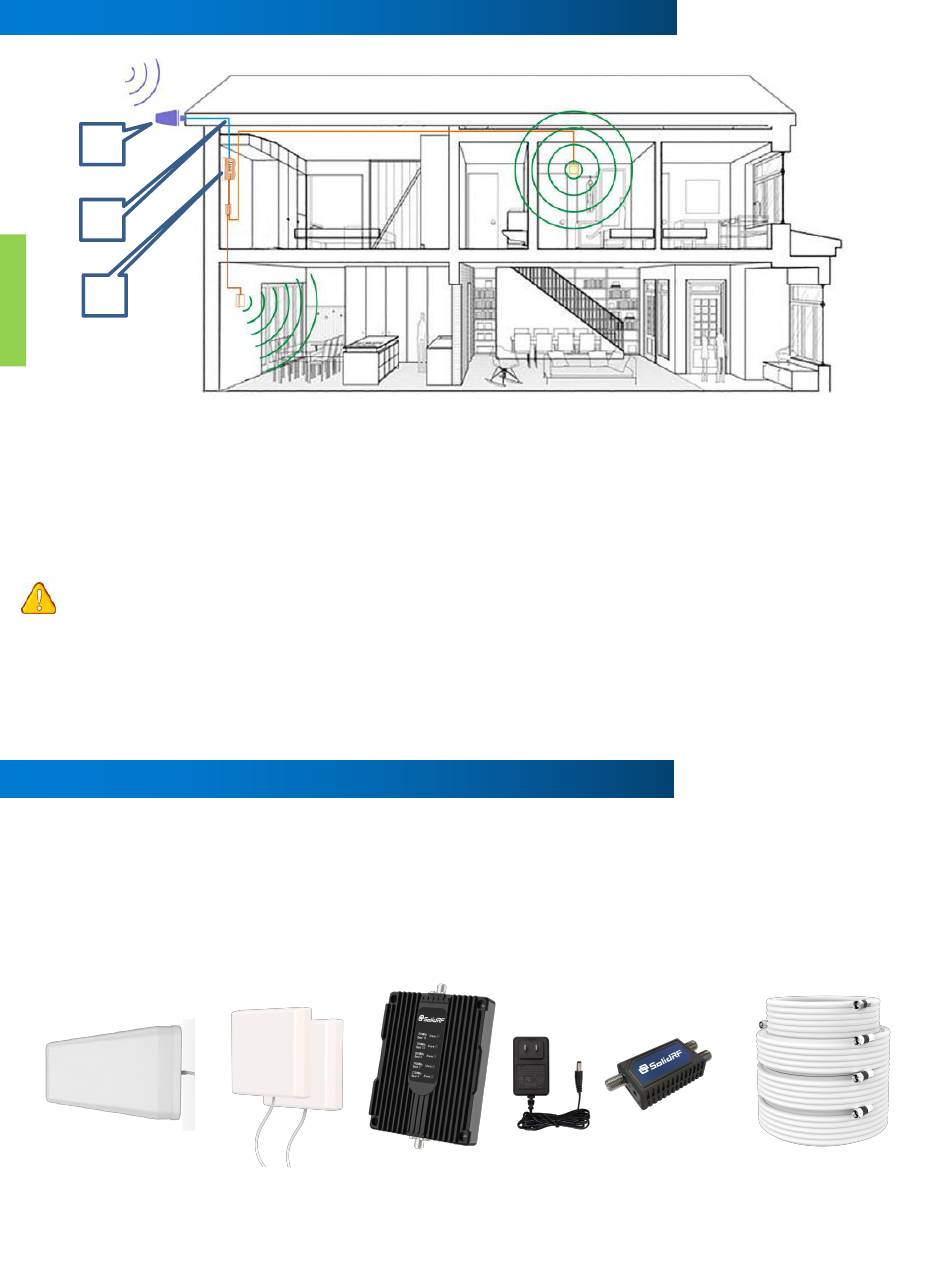

Working Diagram (How It Works)
1
2
3
1. The outdoor antenna catches the signal from the tower.
2. Sends outside signal to the booster through a coax cable.
3. The booster amplifies the signal then rebroadcasts the signal indoors to all mobile
devices within range.
4. The system also works in reverse; amplifying outgoing signal back to the tower.
The size of the coverage area and the strength of the boosted signal are
directly related to two key factors:
1. The signal strength received by the outdoor antenna. Therefore, setting up
external antenna where the signal is strongest will provide the best results.
2. Distance of separation between the outdoor and the indoor antennas.
Package Contents
The kit includes the following items:
1. Outdoor Antenna, Indoor Antenna;
2. Booster;
3. Power supply;
4. Splitter;
5. 3*30 ft&1*15 ft of RG6 cable;
Outdoor Antenna
2*Indoor Antenna
Booster Power supply RG6 cable
Splitter
