SolidRF Signal Plus Manual page 10

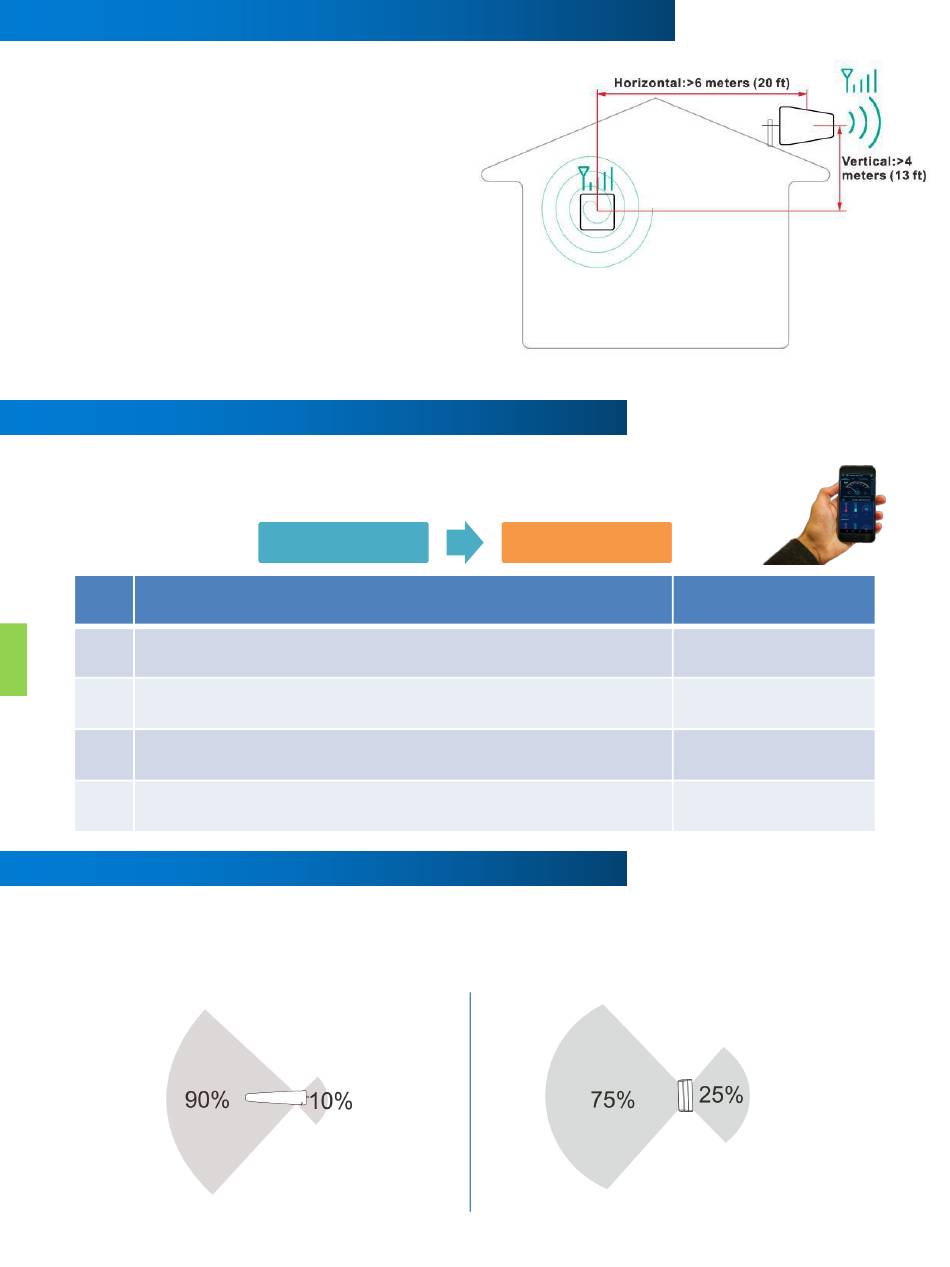

Step3: Select the Location for the Inside Antenna
In order to achieve the best signal coverage
effect, there is a certain distance requirement
between the indoor and outdoor units. Make
sure the inside and outside units are facing
away from each other.
Minimum Required Separation Distance
Between Indoor and Outdoor Antenna：
Straight line distance over 30 feet(10 meters)
or
20 ft (6 meters) horizontal distance
13 ft (4 meters) vertical distance(As far as possible)
Measure the Signal Strength Inside your Home
•
Test your current signal strength in multiple locations throughout the home
• Record the current signal strength in the table provided for reference
No Location
1
2
3
4
Top view of antenna beam shape and energy distribution
• The radiation beam angle of indoor and outdoor antennas is about 90 degrees;
•
In addition to signal radiation in front of the antenna, there is also energy radiation
behind the antenna;
Front
Outdoor antenna
Test
Rear Front
Record
Record(dBm)
Indoor antenna
Rear
10
