SolidRF SOHO Dual Bands Manual

Cell phone signal booster for gsm, gprs, cdma 3g and 4g lte. 850 mhz (band 5) / 1900 mhz (band 2) only
Hide thumbs

Advertisement

Table of Contents

SolidRF SOHO Dual Bands Cell
Phone Signal Booster for GSM,
GPRS, CDMA 3G and 4G LTE
850 MHz (Band 5) / 1900 MHz
(Band 2) ONLY
If you have any questions or concerns
when installing or operating your cell
phone booster, please email us:
Support@SolidRF.ca
Please provide the invoice of your
product in your email. Or visit
www.SolidRF.ca for more information.
Systems tested and certified against FCC
standard, Equipment Class: Part 20
Wideband Consumer Booster (CMRS)
Systems tested and certified against IC
standard, Type of Equipment: Amplifier,
RSS-131
!
Manufactured and Warranted by
SolidRF Technology Inc. Canada
www.SolidRF.ca
Check Cellular Band
ATTENTION: IT MUST BE READ FIRST
Product Diagram, Package Contents
Test Installation
Quick Installation
Troubleshooting
Self Oscillation
Installation Step By Step
Technical Specification

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOHO Dual Bands and is the answer not in the manual?

Questions and answers

Related Manuals for SolidRF SOHO Dual Bands

Summary of Contents for SolidRF SOHO Dual Bands

  • Page 1 SolidRF SOHO Dual Bands Cell Phone Signal Booster for GSM, GPRS, CDMA 3G and 4G LTE 850 MHz (Band 5) / 1900 MHz (Band 2) ONLY If you have any questions or concerns Check Cellular Band when installing or operating your cell...

  • Page 2: For Iphone

    If it confirms that you purchase a wrong booster for your house by doing the test below, please feel free to contact us at Support@SolidRF.ca, we will assist you to swap for a correct booster. Please be patient to do several tests around your house and check if all test results are same.

  • Page 3: Product Diagram

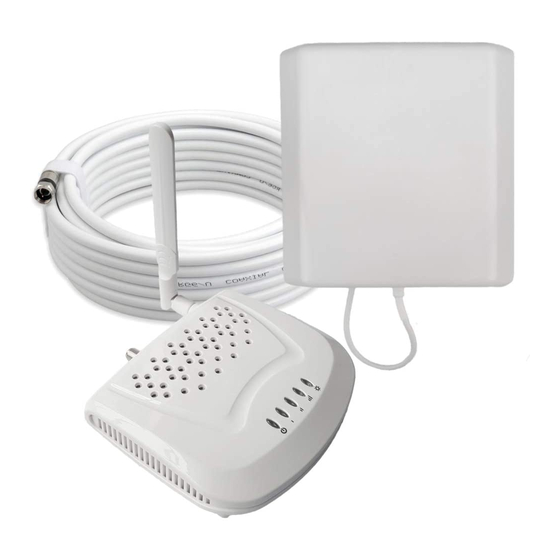

    Product Diagram Power Light Status Light Signal Level Light Package Contents • SOHO Tri-Band Booster Outside Unit (integrated with the booster and the outside antenna) • Inside Unit (integrated with the inside antenna and the power unit) • Cables: 1 x 45 feet •...

  • Page 4: Test Installation

    Test Installation Test Installation: Doing a test installation of a cell phone booster, it allows you to experiment different scenarios to determine your optimal system setup. SolidRF STRONGLY recommends doing a test installation before the permanent installation. Why? 1. To decide where to place the outside antenna, the booster and the inside antenna.
  • Page 5 Quick Installation Find the Strongest Signal Use your cell phone to find where the strongest signal is around your house. Check the signal bar on your cell phone, or try to download. Please be patient and repeat the signal check multiple times. We STRONGLY recommend a test installation first before anything is permanently secured.
  • Page 6 Connect to Inside Unit Connect the coax cable from the exterior antenna to the inside unit; Connect the interior antenna onto the inside unit. Setup Inside unit It aims to create sufficient isolation between two antennas, you should maintain at least 13 feet(4 meters) vertical distance and 20 feet(6 meters) horizontal distance between two antennas.
  • Page 7 Antennas Installation Recommended If the vertical separation distance could be over 6 meters (20 ft.), the horizontal separation distance can be less. Antennas Installation Prohibited It MUST satisfy the separation distance Do NOT point the outside antenna to inside. requirement.
  • Page 8 Plug the AC power adapter to the inside unit. It recommends to use a surge protected power strip for the device. If the booster is installed correctly and working properly, the power light would be solid green. NOTE: If there is any question or concern, please refer to the troubleshooting or contact us at Support@SolidRF.ca...
  • Page 12 ATTENTION: Self Oscillation We strongly recommend it must achieve the Minimum Required Separation Distance for the installation. The improper installation could result in possible Self Oscillation. Minimum Required Separation Distance (MRSD)：6 meters (20 ft ) distance and 4 meters ( 13 ft ) vertical height distance.

  • Page 13: Installation - Step By Step

    Installation - Step By Step STEP BY STEP INSTALLATION How does it works Step 1: Mount the booster outside unit Step 1: The powerful outside antenna captures a. Choose right position a voice and data signal and transfers it to the •...
  • Page 14 • Use only the power supply provided by SolidRF. Any other non-approved products by SolidRF of self-made power cables may Step 2: Arrange the inside unit damage the booster. a. Choose right position •...

  • Page 15: Technical Specification

    This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by SolidRF could void the authority to operate this equipment.
  • Page 16 Product Registration Thank you for purchasing this SolidRF product. Please take time to register your SolidRF booster at our website: https://www.solidrfcanada.com/product-registration Register your product to receive up-to-date warranty and product information. Your information is secure, and it won’t be shared with other third parties.
