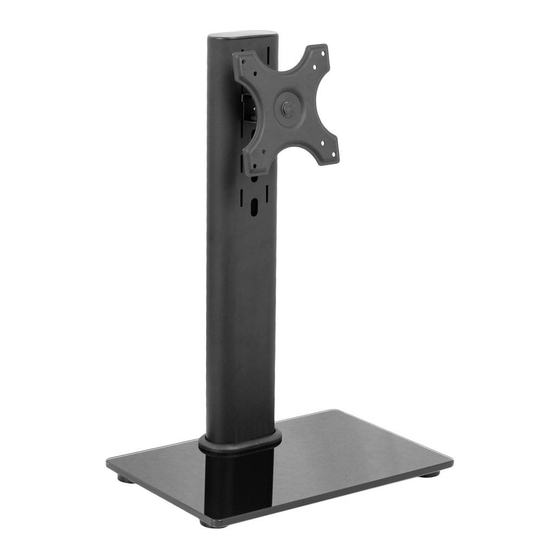

Single Monitor and TV Desk Stand
Instruction Manual
SKU: STAND-V101J
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101j
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V101J
Summary of Contents for Vivo STAND-V101J
- Page 1 Single Monitor and TV Desk Stand Instruction Manual SKU: STAND-V101J Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101j GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) ASSEMBLY STEPS STEP 1 Stick the rubber feet (H) to the bottom (painted side) of the tempered glass base (B). Place the support column (C) and plastic pad (E) on the top of the base, and secure using the M8x22 bolts (G) and metal pad (F) underneath. - Page 4 STEP 2 Attach the wire clips (I) to the back of the support column. STEP 3 OPTION A: Flat Back Monitor Mount the VESA bracket (A) to the back of the monitor using M4x12 thumbscrews (J), making sure the rear hooks are facing down.
- Page 5 STEP 3 (Continued) OPTION B: Curved Back Monitor Mount the VESA bracket (A) to the back of the monitor using M4x30 screws (K) with spacers (L), making sure the rear hooks are facing down. STEP 4 Attach the monitor with VESA bracket to the support column by placing the rear hooks into slots at the desired height.
- Page 6 STEP 5 Insert the knob (D) with M6 Washer (O) through the back of the support column to secure the VESA bracket. STEP 6 Adjust the tilt and swivel joints using the wrench (N) and Allen wrench (M).
- Page 7 STEP 7 Organize cables in back using the wire clips (I).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
