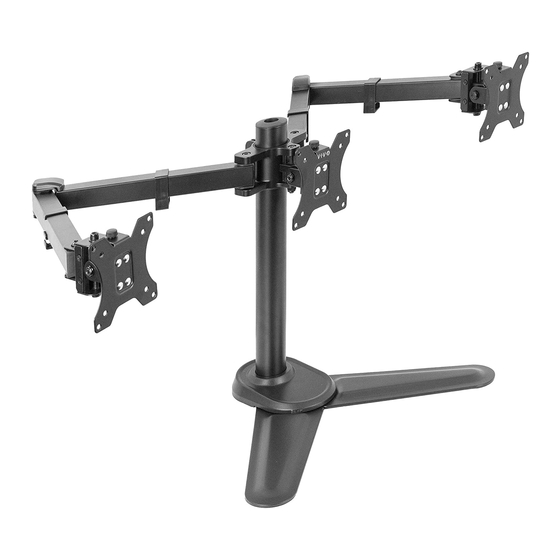

Triple Monitor Desk Stand
Instruction Manual
SKU: STAND-V003J
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v003j
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Related Manuals for Vivo STAND-V003J
Summary of Contents for Vivo STAND-V003J
- Page 1 Triple Monitor Desk Stand Instruction Manual SKU: STAND-V003J Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v003j GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 15.4lbs Failure to do so may result in serious injury. (7kg) PER MONITOR Phillips Screwdriver ASSEMBLY STEPS STEP 1 Assemble legs (E, F) to base (D) using M6x10 bolts (I), and tighten with the 4mm Allen wrench (M). Apply pad (K) to front-center position underneath the base. - Page 4 STEP 2 Press the base cover (C) onto the base. Assemble the pole (G) to the base using M6x16 bolts (J) and tighten with the 4mm Allen wrench (M). STEP 3 Slide the monitor arm (B) onto the pole to the desired height, and tighten the center bracket to the pole using the 6mm Allen wrench (N).
- Page 5 STEP 4 Install the VESA plates (A) to monitors using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C). STEP 5 Slide VESA plates with monitors onto brackets on arm and secure using thumb screws (L). Tighten or loosen the tilt joints using the 6mm Allen wrench (N).
- Page 6 STEP 6 Manage cables using the clips on the arms, then feed cables down through the pole and out the back. Place pole covers (H) on top of pole, and joint covers (O) on arm joints.
- Page 7 STEP 7 CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward. STEP 8 Adjust monitor position and rotation as desired. To adjust monitor alignment, turn the top bolt behind each bracket using the 6mm Allen wrench (N).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
