11.2.3 LEDs

Modem status LED Flashing red/green alternately: Base station sending correction data.
(G)
Battery status LED
• Flashing once a second: External current supply is connected, internal battery is
(H)
• Flashing every five seconds: Receiver is using the internal battery and no external
Charge level:
• Green: > 85%
• Off: Receiver is in "OFF" mode or internal battery is discharged and no external
• Orange:
Medium
• Red: < 15%
Device status LED
• Flashing red: Receiver is on but cannot receive satellites.
(K)
• Flashing green: Receiver is switched on and receiving satellites; one flash per
• Flashing orange: Receiver is switched on and receiving satellites; one flash per

11.2.4 Operating modes

• OFF mode: The base station is completely switched off. All LEDs are off.
NOTE: It is not possible to charge the battery.
• STANDBY mode: The base station is switched on and the receiver switched off. Battery status LED (H):
Depending on charge level and external/internal current supply.
NOTE: Use to charge the battery.
• ON mode: The base station is completely switched on.
- Implement status LED (K) flashing.
- Modem status LED (G) flashing.
- Battery status LED (H): Depending on charge level and external/internal current supply.
NOTE: Use to operate automatic track guidance.
Smart farming
39 924 21 5
being charged.
current supply is connected.
current supply is connected.
received GPS satellite.
received GLONASS satellite.

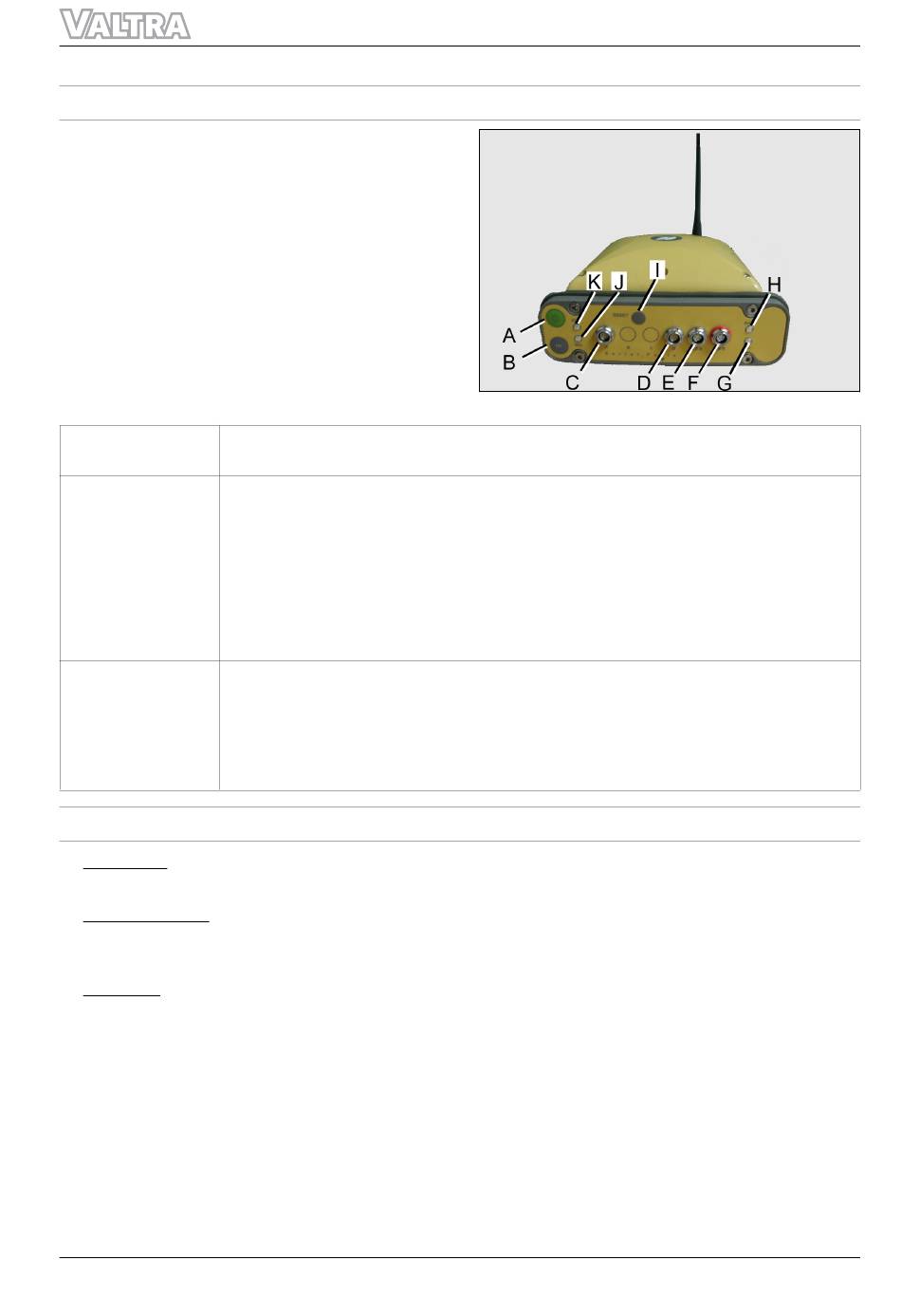

Fig. 17
