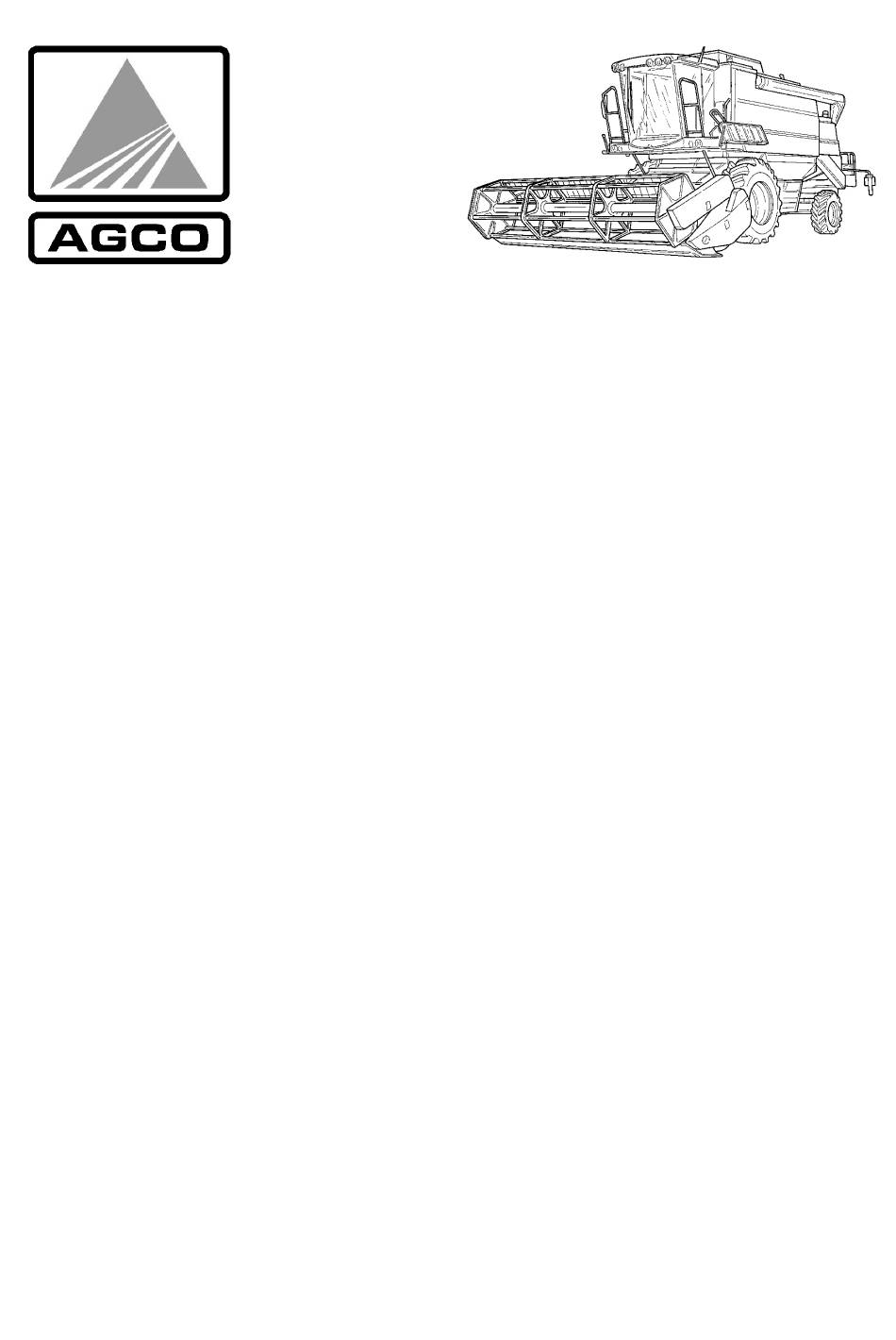

  • Page 1 FENDT 5220E 5250E 6250E IMPORTANT AGCO Policy is one of continuous improvement and the right to make modifications and changes on combine configuration. So if some of the information included on this Manual are WORKSHOP different from that one on your...

  • Page 2: Introductory Remarks

    In case of disagreement, refer to AGCO Sales and Service networks. IMPORTANT CAUTION ◊ All repair and maintenance works listed in this manual must be carried out only by staff belonging to the AGCO Service Network, strictly complying with the instructions given and using, whenever required, the special tools.
  • Page 3 CONTENT Sections - - GENERAL INFORMATION ........- - ENGINE .

  • Page 4: Model Identification

    MODEL IDENTIFICATION 5220 E 5250 E 6250 E DESCRIPTION OF THE COMBINE IDENTIFICATION NUMBER : 5517 : 551 7 10001 : Example: a Technical type d Identification number: 551710001. It is formed by two parts: D First part (b), formed by 4 numbers ”551 7”: it corresponds to the technical type (machine model). D Second part (c), formed by 5 numbers ”10001”: they are the production progressive numbers identifying the progressive number of the produced machine model..
  • Page 5 IMPORTANT THE COMBINE ASSEMBLY, AT THE ARRIVAL TO THE DEALER OR IMPORTER, HAS TO BE MADE FOL- LOWING THE “ASSEMBLY INSTRUCTION BOOK”. BEFORE THE DELIVERY OF COMBINE TO THE CUSTOMER, THE PRE- -DELIVERY INSPECTION HAS TO BE MADE FOLLOWING THE P.D.I. MODULE INSTRUCTIONS AS THE ONE REPORTED BELOW. Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...
  • Page 6 Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...
  • Page 7 Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...
  • Page 8 Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...
  • Page 9 Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...
  • Page 10 Find manuals at http://best-manuals.com/search?&s=FENDT-LA327208010F.PDF...

  • Page 17: General Instructions

    GENERAL INSTRUCTIONS IMPORTANT NOTE All maintenance and repair works described in this manual must be carried out only by the AGCO service network, strictly complying with the instructions given and using the required special tools. Anybody carrying out the above interventions without strictly complying with the prescriptions is fully responsible for the occurred damages.
  • Page 18 -- part number of the ordered part, which can be found in the ”Microfiches” or in the ”Spare Part Catalogue”, used for order processing. REMARKS ABOUT TOOLS The tools that AGCO suggests and describes in this manual have been: -- expressly studied and designed to operate on AGCO range combines; -- required to get a reliable repair;...

  • Page 19: Safety Precautions

    SECTION 00 - - GENERAL INFORMATION SAFETY PRECAUTIONS PAY ATTENTION TO THIS SYMBOL This warning symbol points out important messages involving your personal safety. Carefully read all the suggested safety precautions to avoid potential hazards and safeguard your health and personal safety. In this manual you will find this symbol together with the following key words: WARNING - - In case of warning aimed at preventing unsuitable repair works, involving potential hazards to the operator’s safety.
  • Page 20 SECTION 00 - - GENERAL INFORMATION Use only the prescribed points for towing the ma- In case of servicing operations to be made outside ◊ ◊ chine. Carry out the connections very carefully: the workshop, drive the combine to a flat area and make sure that the pins and/or locks are tightly fas- lock it.
  • Page 21 SECTION 00 - - GENERAL INFORMATION START- -UP HYDRAULIC SYSTEMS ◊ Fluid coming out from a very small port can be al- ◊ Never run the engine in closed areas without suit- most invisible and be strong enough to penetrate able ventilation systems for exhaust gas ejection.
  • Page 22 SECTION 00 - - GENERAL INFORMATION COMBINE IDENTIFICATION The combine and its main parts are identified by serial numbers and/or production codes. The position of the different identification data is shown below. NOTE: always state the machine identification data to your Dealer while asking for spare parts or service interventions.
  • Page 23 SECTION 00 - - GENERAL INFORMATION Combine identification data Fig. 3 The combine type and frame number are on the plate and punched also on the frame rear right side (1). Engine identification Fig. 4 The engine identification is made by the information plate (1), on the valve cover.
  • Page 24 SECTION 00 - - GENERAL INFORMATION Header identification - - Fig. 6 The type and the serial number are punched on the identification plate located on the frame left side. Cab identification - - Fig. 7 The plate is located in the left lower side of the oper- ator’s seat, under the concave opening control levers.
  • Page 25 SECTION 00 - - GENERAL INFORMATION Hydrostatic motor identification Fig. 9 The plate is located on the hydrostatic motor body lower part. Chaff spreader identification (if fitted) Fig. 10 The identification plate is located on the right side, next to the lever to adjust the chaff spreader position. Rockinger tow hook identification (if fitted) Fig.
  • Page 26 SECTION 00 - - GENERAL INFORMATION CAPACITIES, 5A - - 5B - - 6A QUANTITY dm QUANTITY dm RECOMMENDED RECOMMENDED INTERNATIONAL INTERNATIONAL COMPONENTS TO BE FILLED COMPONENTS TO BE FILLED (litrers) PRODUCTS SPECIFICATION ANTI FREEZE ASTM D 3306 or Cooling system BS 6580:1992 (50% water recmd.) Cleaned and filtered...

  • Page 27: Technical Specifications

    SECTION 00 - - GENERAL INFORMATION TECHNICAL SPECIFICATIONS FEED EQUIPMENT CUTTING HEADER -- Terra Control device ......standard -- GSA device .
  • Page 28 SECTION 00 - - GENERAL INFORMATION CONCAVE -- control ......... independent front and rear opening, adjustable from the driver’s seat -- surface...
  • Page 29 SECTION 00 - - GENERAL INFORMATION CLEANING EQUIPMENT -- standard rotation speed ..... . 350 ÷ 1050 -- reduced rotation speed (optional) .
  • Page 30 SECTION 00 - - GENERAL INFORMATION HYDRAULIC SYSTEM -- oil reservoir capacity ......liters -- service pump output .
  • Page 31 SECTION 00 - - GENERAL INFORMATION ELECTRICAL COMPONENTS BATTERY -- type 12 V ........-- peak current .
  • Page 32 SECTION 00 - - GENERAL INFORMATION FEATURES - - 5A / 5B MODELS HEADER DIMENSIONS L=4,00 m L420 4710 2530 L480 5320 2225 L540 5929 1921 L600 6539 1617 L660 7147 1313 3837 3385 2360 9557 CP - - mm TYRES adjustable axle 620/75 R30 163 A8...
  • Page 33 SECTION 00 - - GENERAL INFORMATION FEATURES - - 6A MODEL HEADER DIMENSIONS L=4,00 m L480 5320 2352 L540 5929 2048 L600 6539 1744 L660 7147 1440 3837 3385 2360 9557 CP - - mm TYRES adjustable axle 620/75 R34 170 A8 3480 3500 2854...
  • Page 34 SECTION 00 - - GENERAL INFORMATION TYRE TYPES TYRES MODELS Front Rear Dimension Dimension 620/75 R30 163 A8 16.0/70--20 620/75 R34 170 A8 650/75 R32 167 A8 800/65 R32 167 A8 460/70 R24 UNDERCARRIAGE WEIGHT OF THE COMBINE WITHOUT CUTTING HEADER AND WITH STRAW CHOPPE Model Standard machine kg 10100...
  • Page 35 SECTION 00 - - GENERAL INFORMATION TYRED COMBINE DIMENSIONS (mm) HALF- -TRACK COMBINE DIMENSIONS (mm) 327 208 010 - - 01 - - 2005...
  • Page 36 SECTION 00 - - GENERAL INFORMATION TRACKS WITH SHOES TRACK CUTTING MACHINE CHAIN SHOES ROLLERS HEADER TYPE PITCH WIDTH envisaged running ground 2325 2035 working 35x2 direction line position 327 208 010 - - 01 - - 2005...

  • Page 37: Belt Tension Adjustment

    SECTION 00 - - GENERAL INFORMATION BELT TENSION ADJUSTMENT DESCRIPTION COMPRESSED SPRING mm A -- Rear beater control 118 -- 122 B -- Crop tank discharge control 63 -- 66 C -- Elevator upper shaft control 74 -- 78 D -- Reverser control -------- 327 208 010 - - 01 - - 2005...
  • Page 38 SECTION 00 - - GENERAL INFORMATION 8 mm DESCRIPTION TENSION A -- Water pump and alternator control automatic tensioner (1) B -- Hydrostatic pump control spring compressed at 160 -- 165 mm Load 45 N Deflection 8 mm C -- Service pump control Caution: to prevent damage to the bearing and the seal Levelling pump control of the service or levelling pump, do not tension the ”C”...
  • Page 39 SECTION 00 - - GENERAL INFORMATION DESCRIPTION LOAD N DEFLECTION mm A -- Main transmission control B -- Straw walker control 100 -- 120 19 -- 20 C -- Fan variator control 30 -- 40 D -- Blade converter control 70 -- 80 8 -- 9 327 208 010 - - 01 - - 2005...
  • Page 40 SECTION 00 - - GENERAL INFORMATION DESCRIPTION TENSION The extension of the spring (1) must correspond A -- Engine fan control to the length of the pointer (2). The extension of the spring (1) must correspond B -- Cab A/C system compressor control to the length of the pointer (2) after loosening the compressor fastening bolts (3).
