10.3 Calibrate the navigation controller (GYRO)

Calibrate the navigation controller if you think that the steering is not accurate. We recommend that you
also calibrate the navigation controller in the beginning of the growing season if there is a long period since
the last time you used Valtra Guide.
Procedure
Start the engine.
1.
Let the engine operate for 10 minutes while the temperature of the navigation controller increases.
2.
Drive the tractor to a level ground.
3.
Apply the parking brake.
4.
Open the Tractor health screen
5.
Tap the Calibrations icon.
6.
Tap the Navigation controller calibrations tab.
7.
Tap the Calibrate icon.
8.
Smart farming
39 924 21 5
.
TRACTOR HEALTH
SERVICE CODES
SPN FMI
75°C

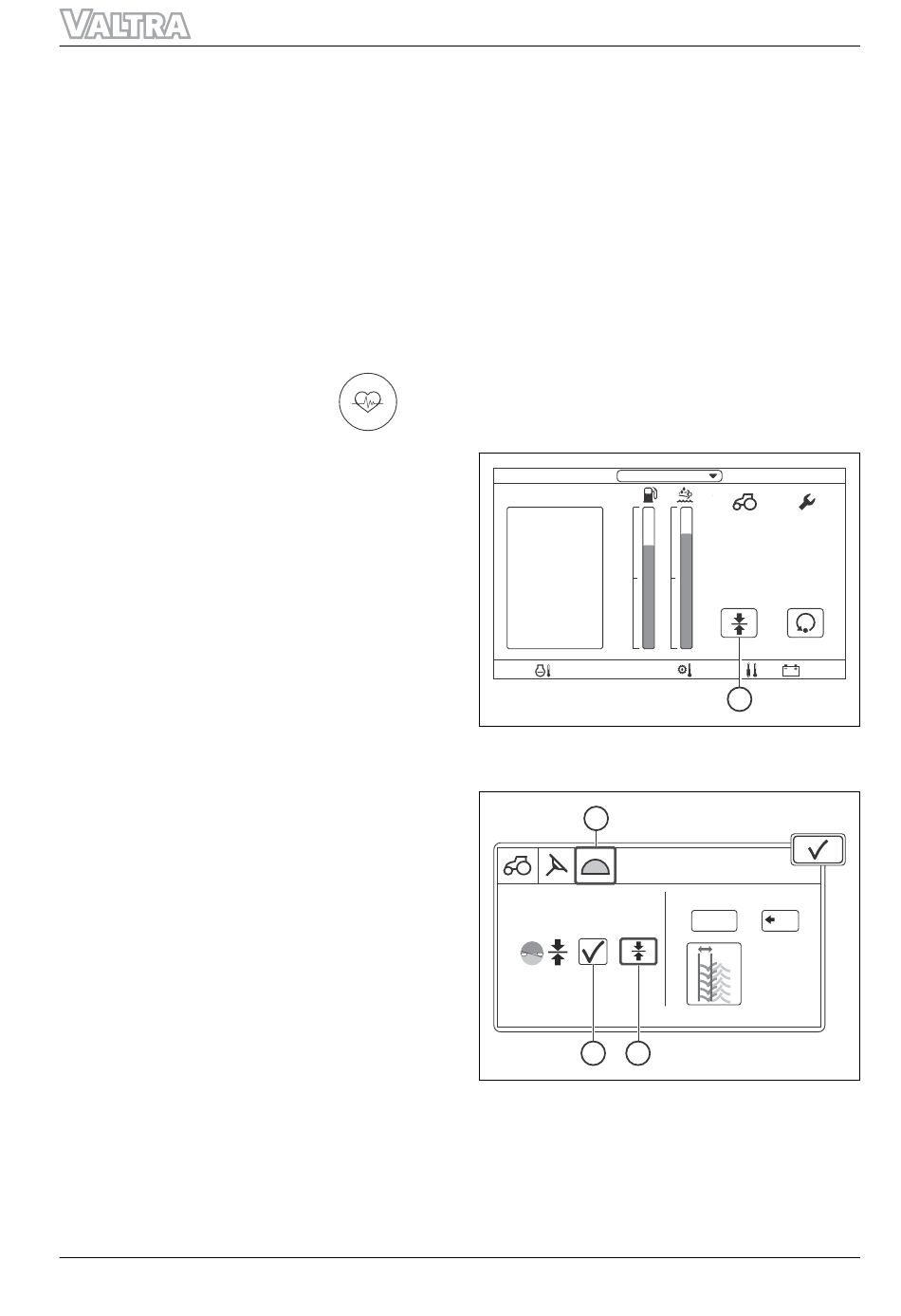

Fig. 3
1 Calibrations
Fig. 4
1 Navigation controller calibrations
2 Calibration status
Calibrate GYRO (IMU)
3
