U-Line H-670 Quick Start Manual

Industrial platform scale

Hide thumbs Also See for H-670:

Download this manual

H-670, H-747

H-794, H-4593

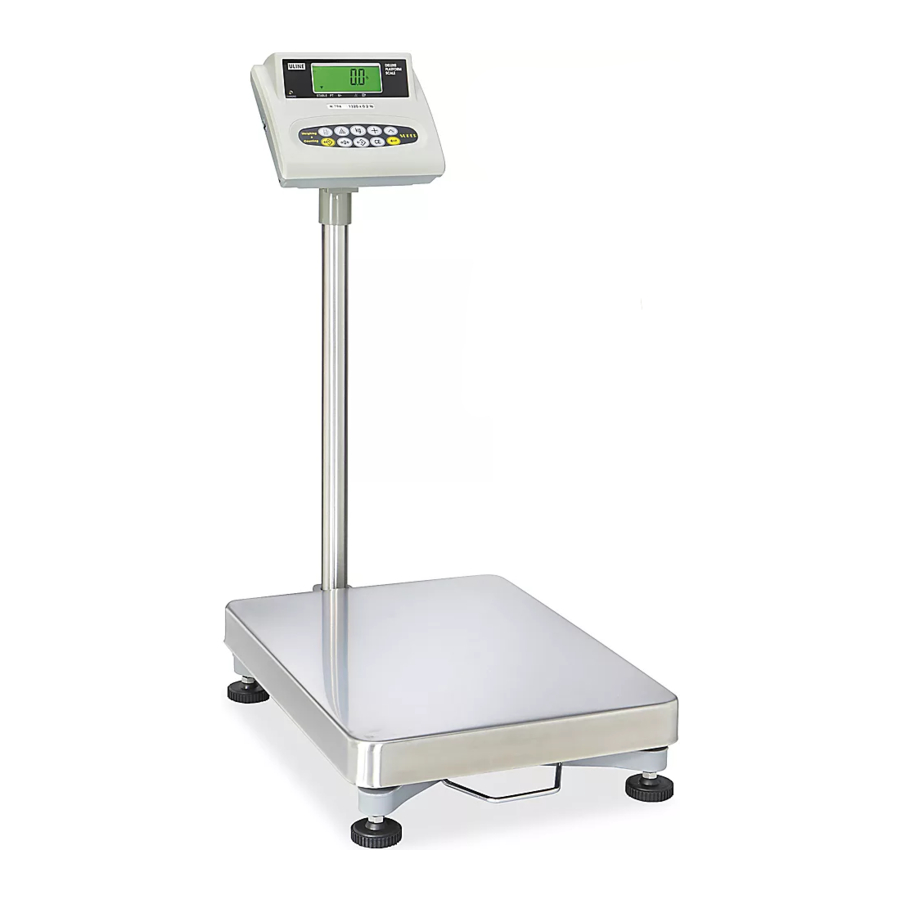

INDUSTRIAL PLATFORM

SCALE

Allen Wrench

Power Cord

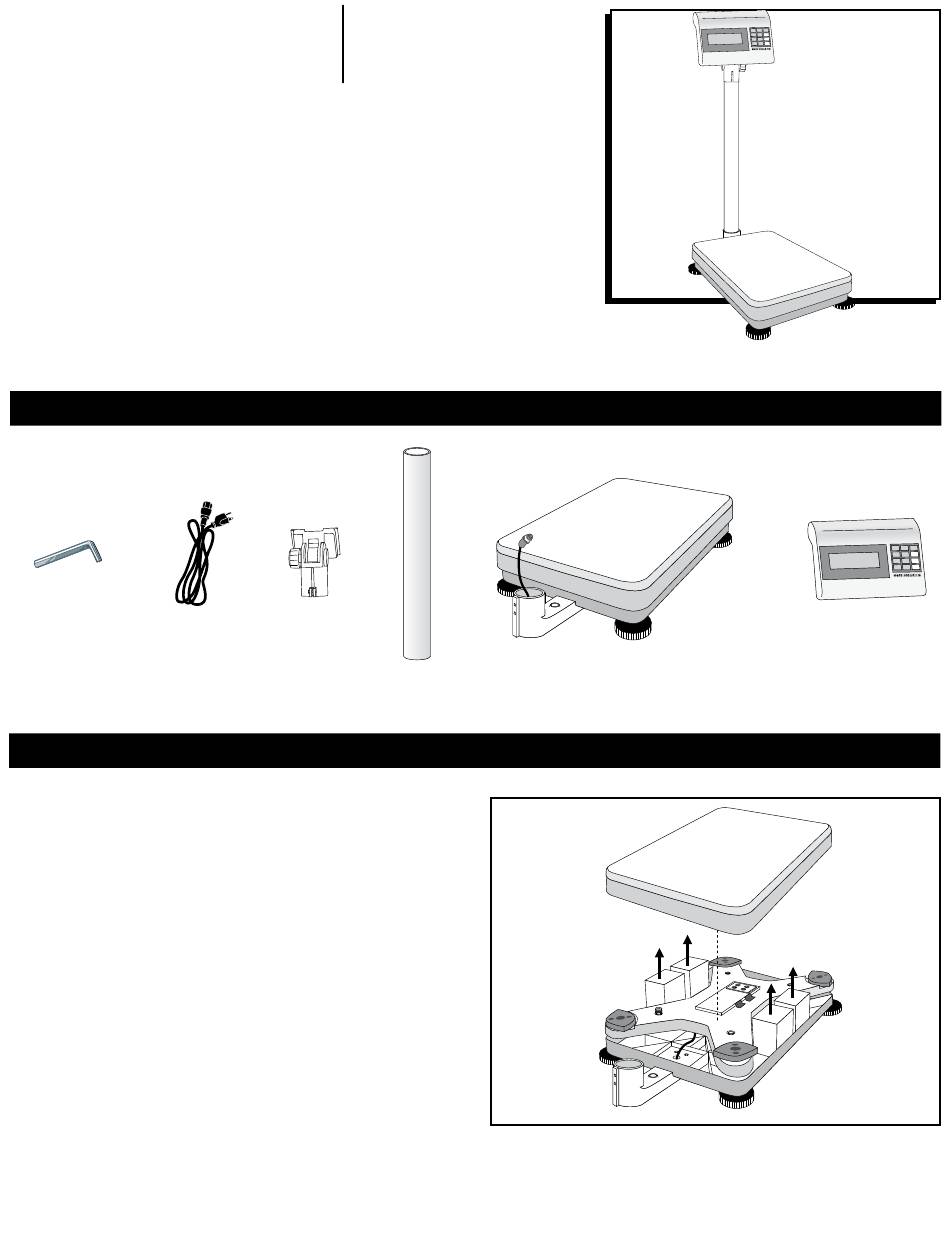

1. Remove scale parts from packaging.

2. Lift the Scale Pan off the Platform Base.

3. Remove the four styrofoam blocks from the Platform

Base. (See Figure 1)

4. Replace the Scale Pan.

PAGE 1 OF 4

1-800-295-5510

uline.com

parts

Support Bracket

Tower

assembly instructions

Platform Base

Display Indicator

Figure 1

0114 IH-670

Need help?

Do you have a question about the H-670 and is the answer not in the manual?

Page 1 H-670, H-747 π 1-800-295-5510 H-794, H-4593 uline.com INDUSTRIAL PLATFORM SCALE parts Allen Wrench Power Cord Support Bracket Tower Platform Base Display Indicator assembly instructions 1. Remove scale parts from packaging. 2. Lift the Scale Pan off the Platform Base. 3. Remove the four styrofoam blocks from the Platform Base.
Page 2 assembly instructions continued Figure 2 Figure 5 5. Place the Scale on the stable, level surface on which 9. Feed the data cable through the Support Bracket by it is intended to be used. unscrewing the knob and pulling the Support Bracket pieces apart.
Page 3 This will provide an accurate count reading. 7. Remove all parts from the scale. 8. For the H-670 and H-4593: Press the UNITS key (8) to return to the weight display H-747 & H-7914 H-747 & H-794 screen.
Page 4 calibration instructions note: scale can only be accurately calibrated using standard calibrated scale weights. using non-calibrated weights may result in inaccurate scale calibration. nothing should be on the scale and scale should be level. ACTIVATE WEIGHT CALIBRATION MODE • Turn on the scale. As scale counts down to zero, press and hold the Zero key until 02001 appears in the display.
