U-Line H-1101 Instructions Manual

π
H-1101

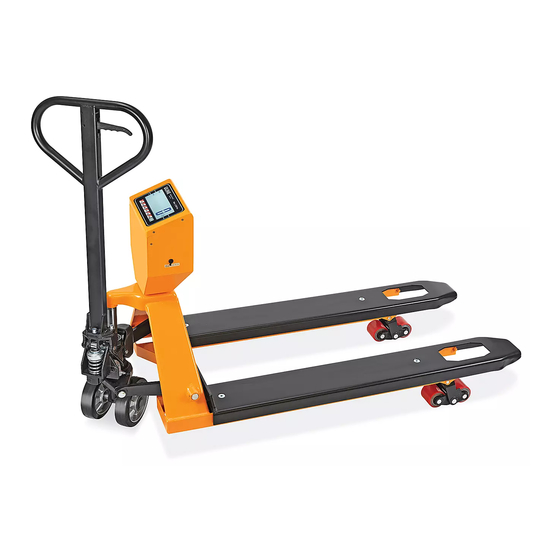

DELUXE PALLET
TRUCK SCALE
OPERATION
1. ON/OFF. Press and hold 1 second to turn scale on
and off. Scale runs a self-test, then displays the
product ID (left number) and software version (right
number.)
2. NUMBER KEYS. Use these keys to enter numbers. Also
used for other functions as labeled.
3. ENTER. Press after keying a number.
4. CLEAR. Press to clear the number in the display.
5. ZERO. Press ZERO to reset the display to zero with or
without a weight on the load cell.
• Nothing on the load cell – Resets the display to zero.
• Weight on the load cell – Resets the display to
zero, in effect canceling the weight of that item.
Useful for canceling the weight of the empty box or
container that will hold the items you want to weigh.
Display shows a negative number if you remove the
container, until you re-zero the scale.
• AZT (Auto Zero Tracking) – Corrects slight zero
changes during normal operation. If small weights
are added while display is at or near zero, the scale
may zero them off.
6. NET/GROSS. Switches display readout between net
weight and gross weight. Indicator on left side of
display shows whether gross or net weight is being
displayed.
NET = GROSS – TARE
• Weight is always "NET" when in "UNITS/PIECES."
• "E-2" Error displays if NET/GROSS key is pressed when
a total is set. Clear the current total before switching
between NET/GROSS.
PAGE 1 OF 3
1-800-295-5510
uline.com
INSTRUCTIONS
7. TARE. Set the weight of an empty container, so you
can cancel that weight from the total of items
being weighed.
• Place empty container on scale. Press TARE. Weight
of container is now entered in memory. When
weighing container with contents, pressing TARE will
cancel the weight of the container from the total.
Display will show the net weight.
• To clear tare, press TARE and CLEAR keys
simultaneously.
8. Tare does not function in UNIT/PIECES mode.
9. PRESET TARE. If the weight of a container is known, set
that weight in the memory manually.
• Press PRESET TARE, then key in the weight you want to
set.
• To clear, press TARE and CLEAR keys at the same
time.
10. UNITS/PIECES. Switches display readout between "lb"
and "kg" (kilograms) and "PCS" (pieces, quantity of
items.) Indicators are on left side of display.
11. SAMPLE. Displays weight of individual pieces.
• Place 3-5% of the total number of items being
weighed on the scale. Press SAMPLE. Use the number
keys to enter the number of items on the scale. The
sample measurement is saved in memory. The scale
will switch to the unit "PCS" and display the number
of pieces on the scale.
• To clear the sample memory, press the SAMPLE and
CLEAR keys at the same time.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
