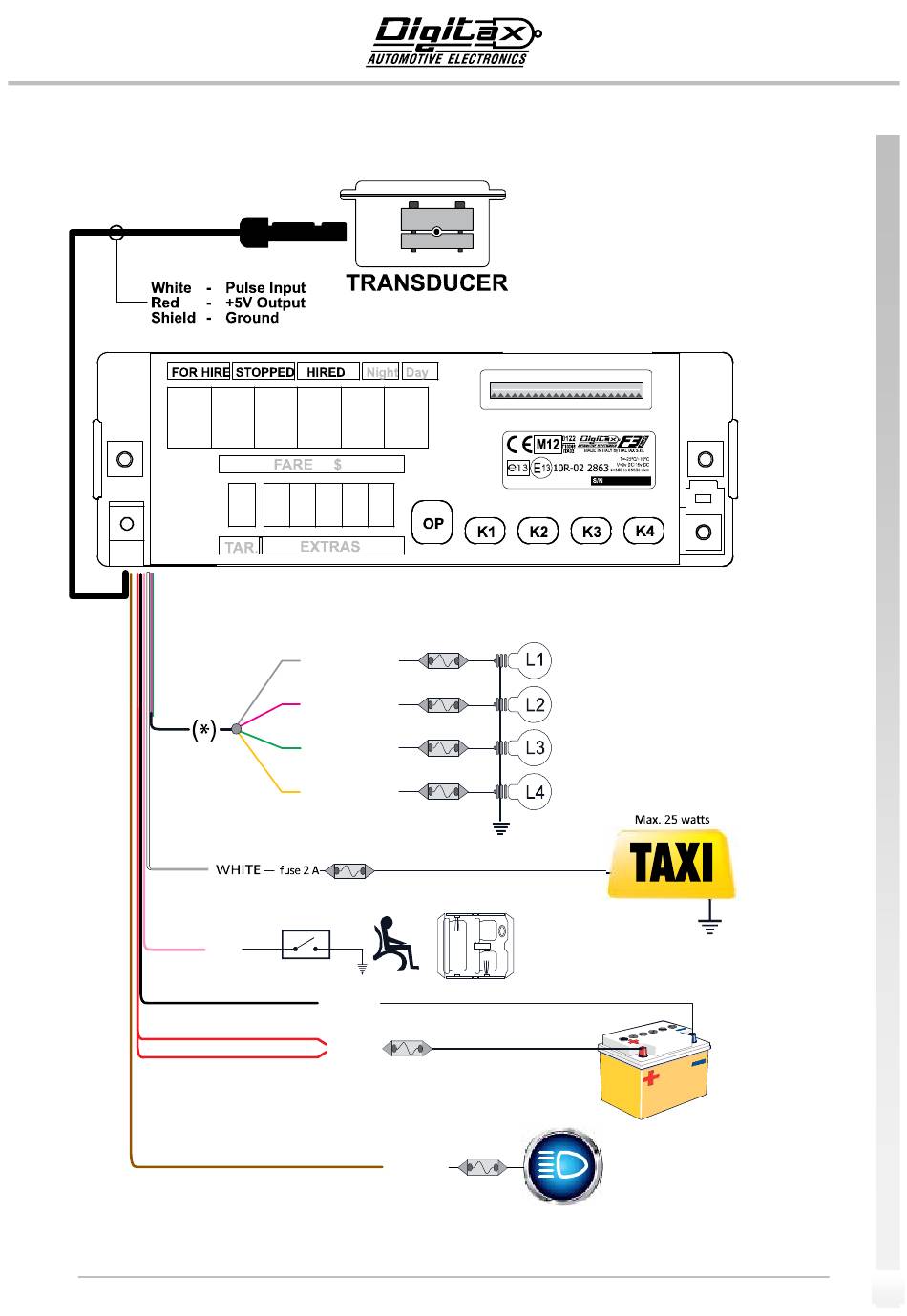

Electrical Connections Table
PINK
The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third
party is strictly prohibited.
GREY (F)
fuse 2 A
VIOLET (G)
fuse 2 A
GREEN (H)
fuse 2 A
YELLOW (J)
fuse 2 A
Passenger Sensor
BLACK
RED x 2
fuse 2 A
BROWN
fuse 2 A
Warning!
The taximeter is not provided with his own set
of fuses. You must install them by yourself
following the scheme. You will be responsable
for every damage that you can cause for the
omission of these fuses. Digitax rejects every
legal responsability.
(*) Hardware Optional
+12 V
CAR LIGHT SWITCH
5
