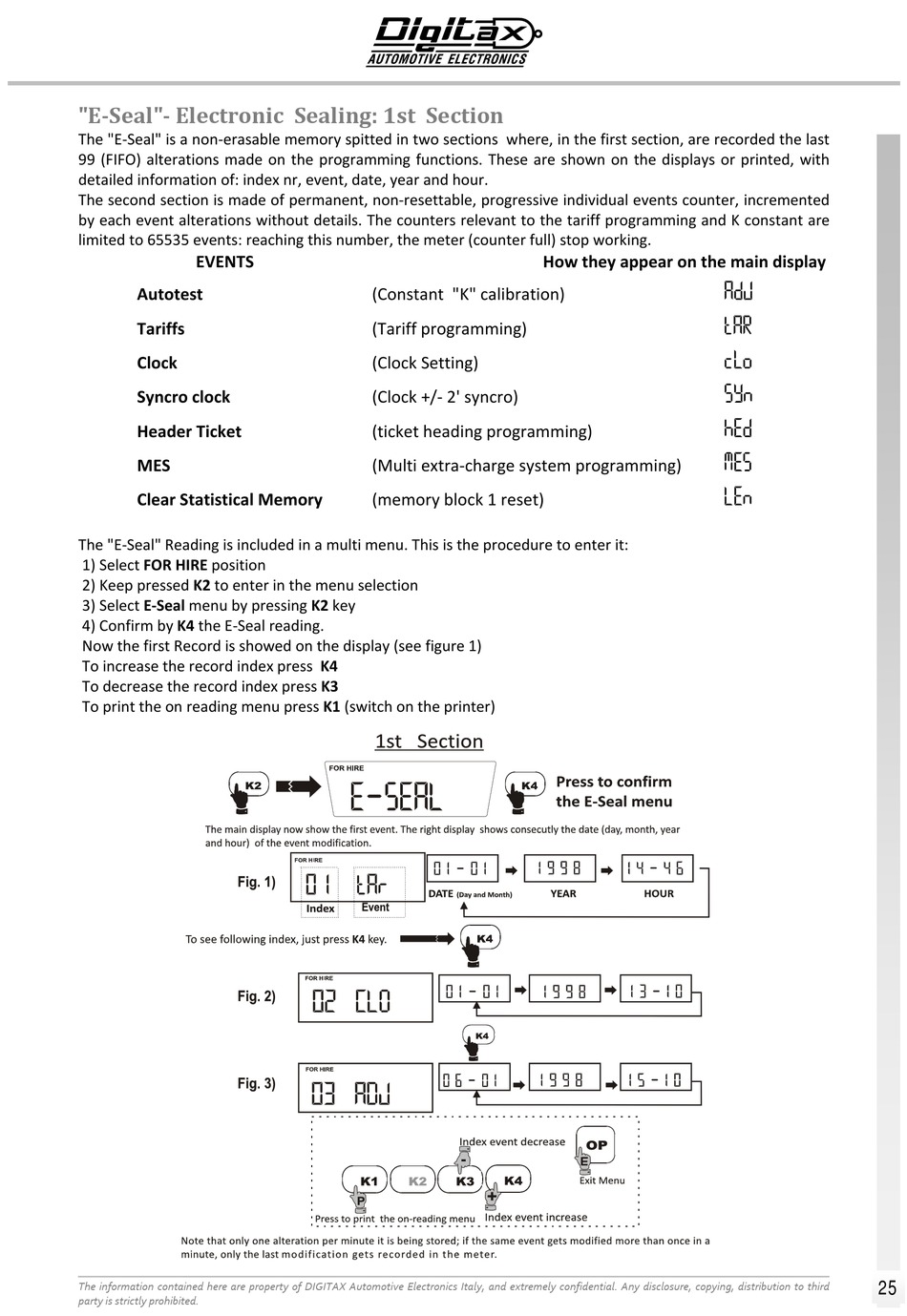

"E‐Seal"‐ Electronic Sealing: 1st Section
The "E‐Seal" is a non‐erasable memory spitted in two sections  where, in the first section, are recorded the last
99  (FIFO) alterations  made  on  the  programming  functions.  These  are  shown  on  the displays  or  printed,  with
detailed information of: index nr, event, date, year and hour.
The second section is made of permanent, non‐resettable, progressive individual events counter, incremented
by each event alterations without details. The counters relevant to the tariff programming and K constant are
limited to 65535 events: reaching this number, the meter (counter full) stop working.


EVENTS
Autotest
Tariffs
Clock
Syncro clock
Header Ticket
MES
Clear Statistical Memory

The "E‐Seal" Reading is included in a multi menu. This is the procedure to enter it:
 1) Select FOR HIRE position
 2) Keep pressed K2 to enter in the menu selection
 3) Select E‐Seal menu by pressing K2 key
 4) Confirm by K4 the E‐Seal reading.
 Now the first Record is showed on the display (see figure 1)
 To increase the record index press  K4
 To decrease the record index press K3
 To print the on reading menu press K1 (switch on the printer)


The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third

party is strictly prohibited.



(Constant  "K" calibration)


(Tariff programming)


(Clock Setting)


(Clock +/‐ 2' syncro)

(ticket heading programming)


(Multi extra‐charge system programming)
(memory block 1 reset)



             How they appear on the main display


AdJ



tAR



cLo



SYn



hEd


MES

LEn



25
