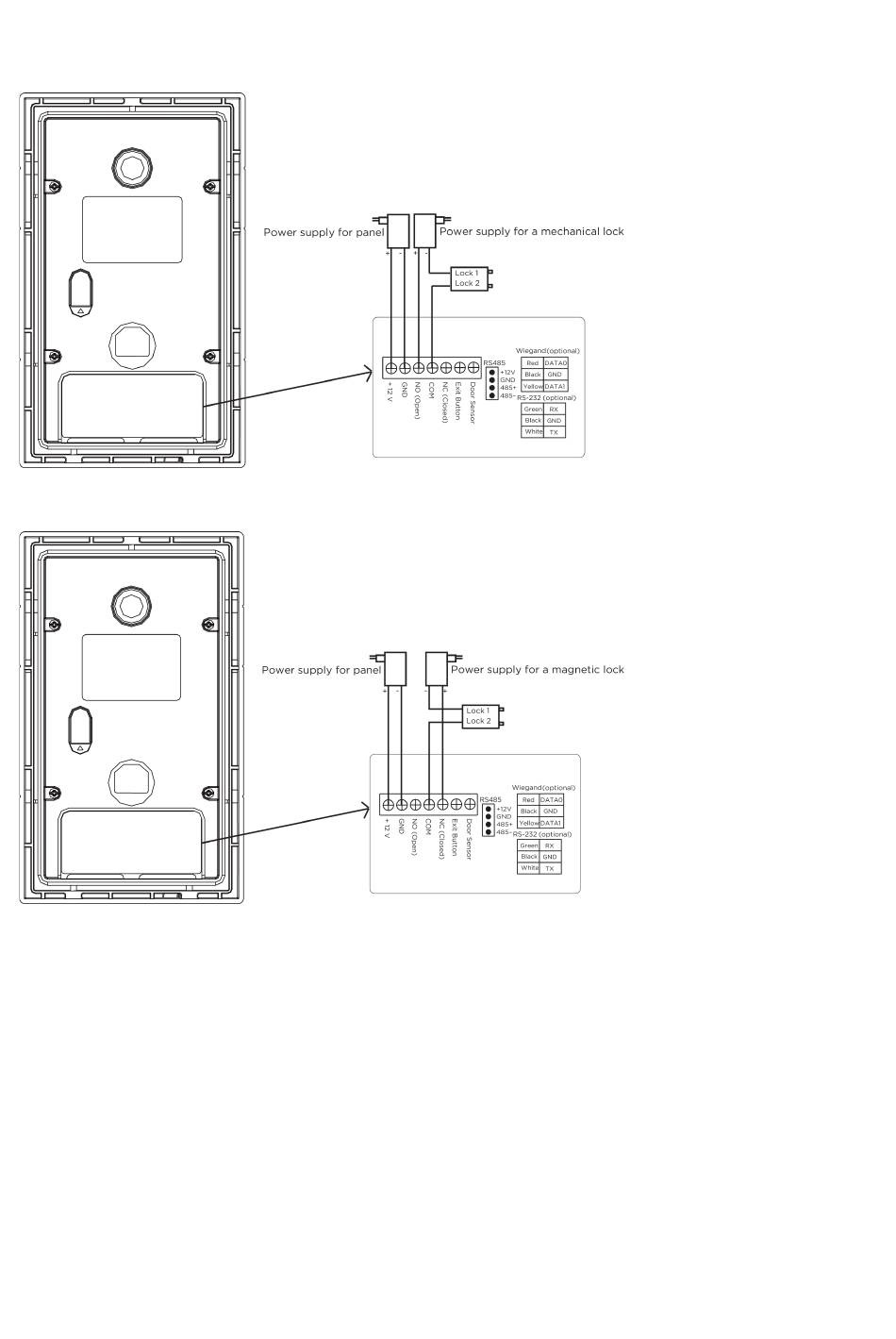

2. Connection scheme of electromagnetic lock using external power supply for panel and the
lock.
Mechanical mounting
Before mounting the door panel, a hole or recess in the wall with dimensions 94 × 170 × 60 mm
(for flush mounting) must be provided. Overall dimensions of the bracket (flush box) = 93 × 169
× 60 mm. It is also necessary to provide for the supply of power cable, add. modules and local
network.
Installation and connection – 21
