Mechanical mounting

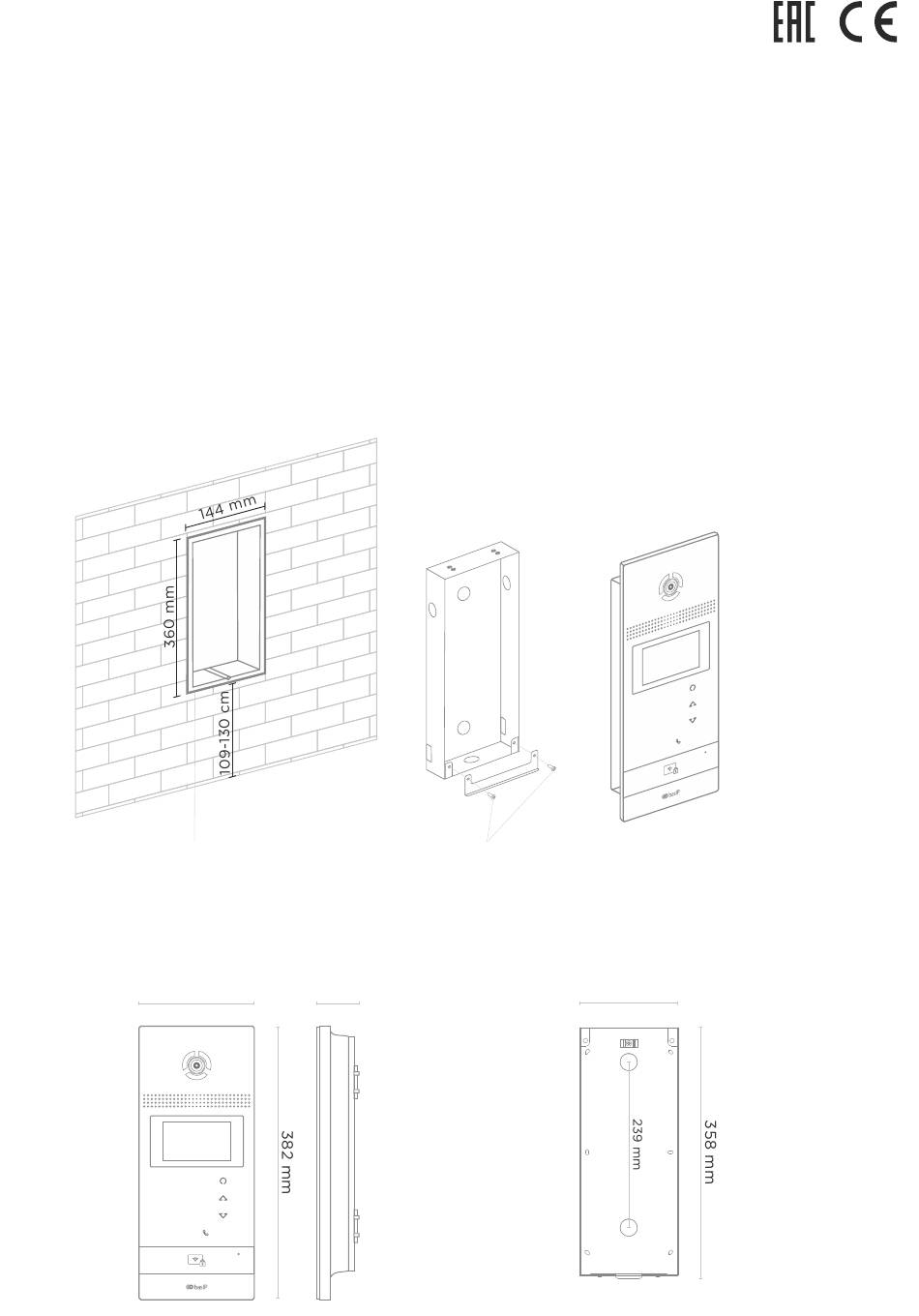

Before installation of the outdoor panel it is necessary to provide a hole
or a recess into a wall with dimensions 144×360x59 mm (for flush mount)
dimensions of the bracket (mounting box) = 142×358×58 mm.
It is also necessary to provide supply of a power cable, additional modules
and the local network.
Attention: the hole at the bottom is designed to drain the water.
Do not intentionally close it. Also it is necessary to make a drain for water
at the bottom of the niche which will serve to divert water out.
Niche
Outdoor Panel
161 mm
1 2
4 5
7 8
x 0
EAN: 5060514912836 (SILVER)
49 mm
3
i
6
9
Screws
Flush Bracket
142 mm
i
3
2
1
6
5
4
9
8
7
0
x
Outdoor Panel
