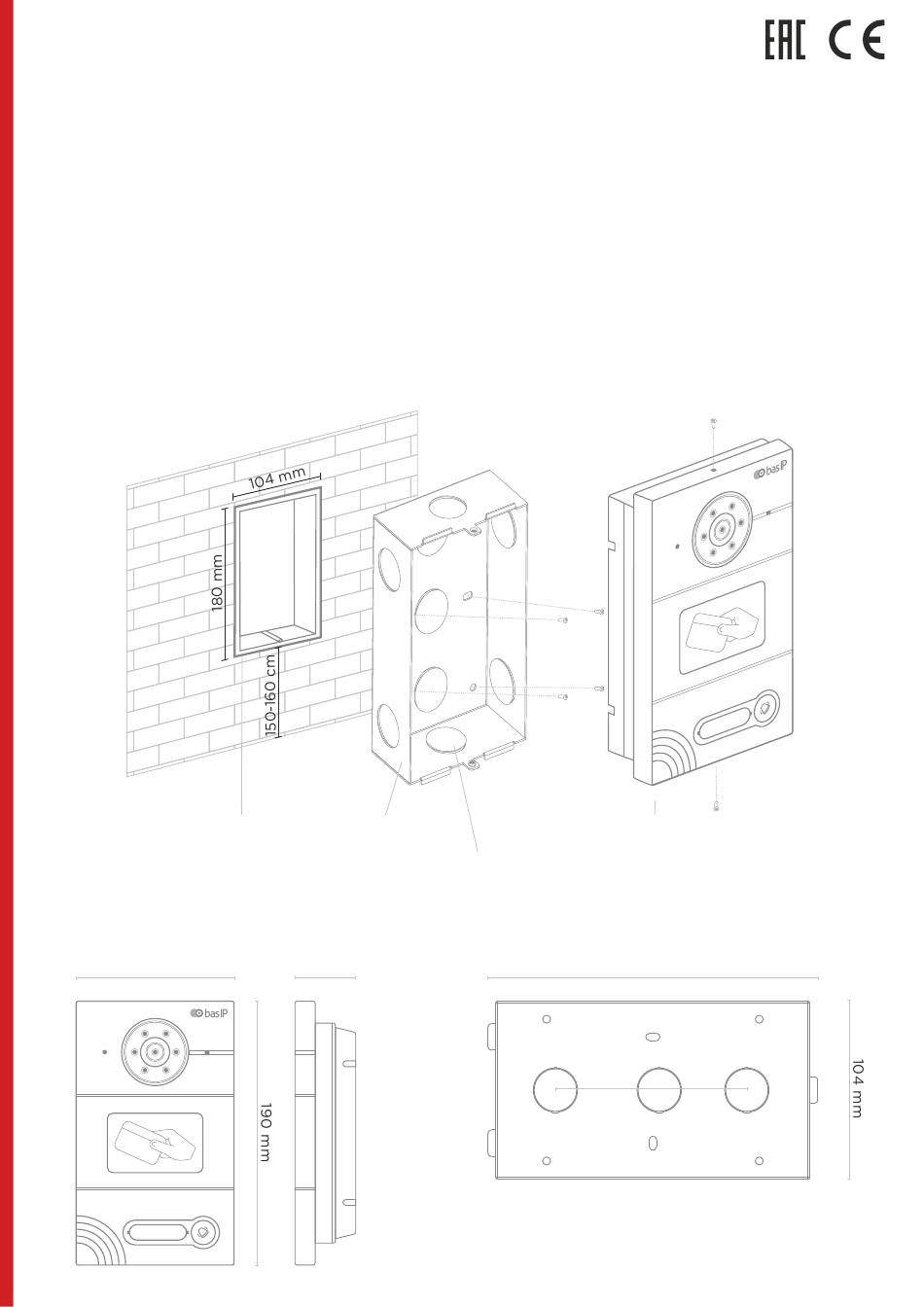

Mechanical mounting

Before mounting the door panel, a hole or recess in the wall with dimensions
of 104 × 180 × 60 mm (for flush mounting) must be provided.
It is also necessary to provide supply of a power cable, additional modules and
the local network.
Attention: the hole at the bottom is designed to drain the water. Do not
intentionally close it. Also it is necessary to make a drain for water at the
bottom of the niche which will serve to divert water out.
Gutter: 20 mm
Depth: 60 mm
Outdoor Panel
115 mm
Flush Bracket
Niche
A hole for water flow.
Please do not close during installation.
45 mm
Screws
Outdoor Panel
Flush Bracket
180 mm
108 mm
