Mechanical mounting

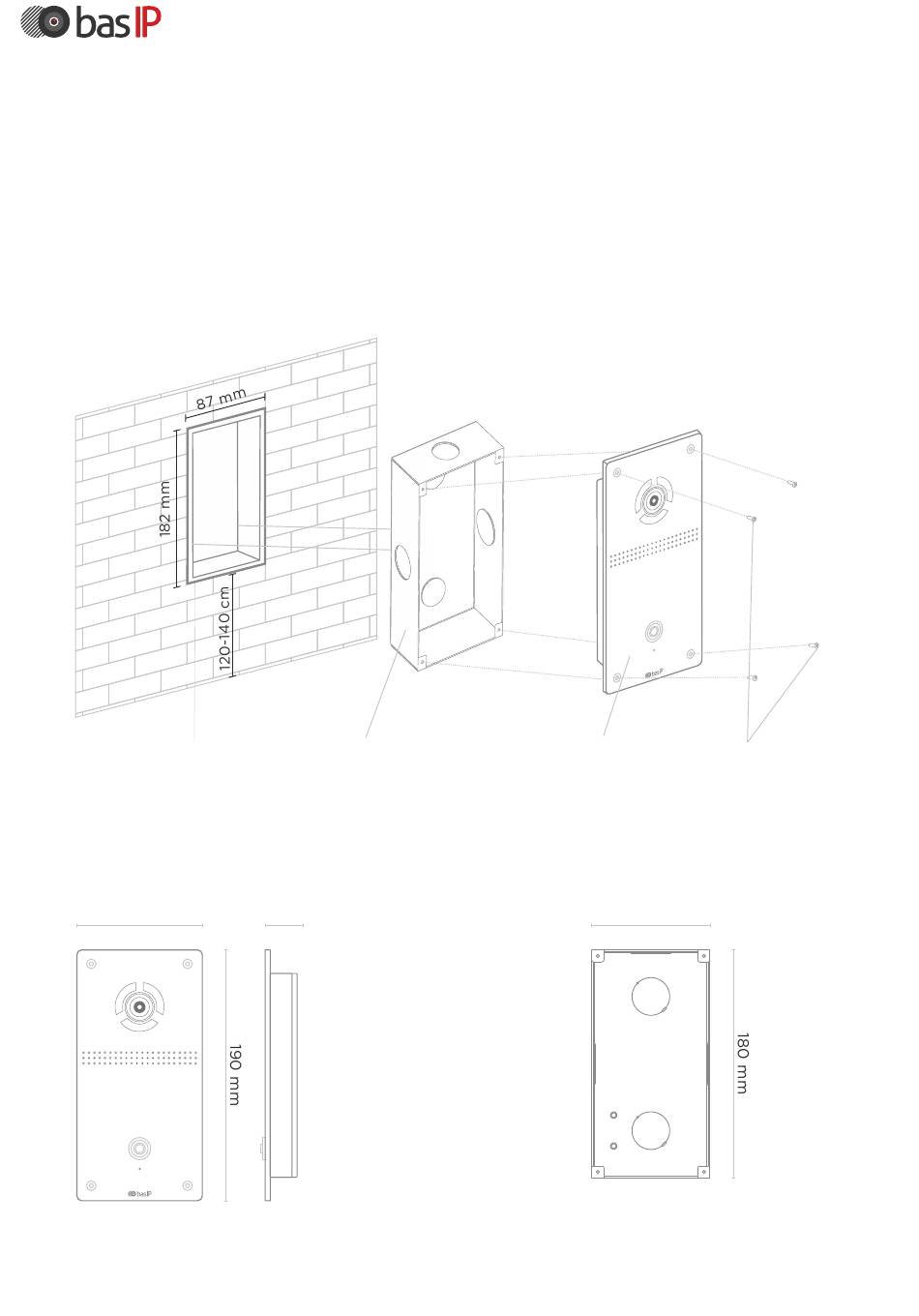

Before mounting the door panel, a hole or recess in the wall with dimensions
of 87 × 182 × 46 mm must be provided.
It is also necessary to provide supply of a power cable, additional modules
and the local network.
Niche
Bracket
Outdoor Panel
Screws
Outdoor Panel
Flush Bracket
95 mm
27 mm
85 mm
